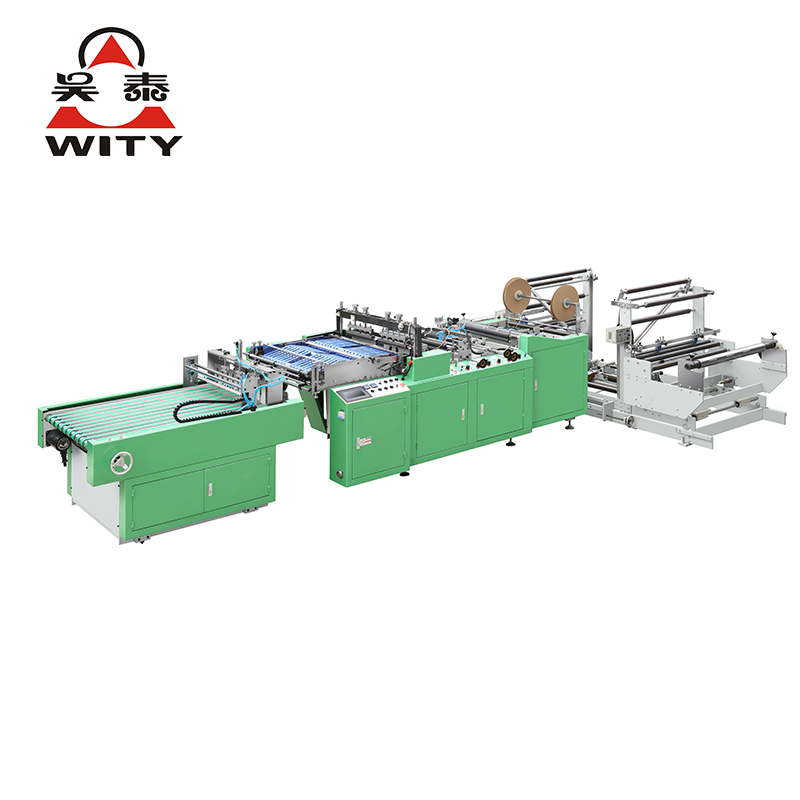

High Speed Heat Cutting Bag Making Machine
This machine produces bags from materials like BOPP, CPP, LDPE, HDPE, POF, and laminated film, whether printed or unprinted. It is suitable for making stationery bags, ornament bags, garment bags, food bags, and hanging bags.
Technical Specifications
Overview
High-Efficiency Bag Production
This high-speed side sealing heat cutting bag making machine is engineered for the precise and efficient production of plastic bags. Featuring advanced automation, it seamlessly integrates film feeding, sealing, cutting, and stacking to maximize output while minimizing waste. Designed for continuous industrial use, it offers adjustable parameters to support versatile packaging applications with consistent quality.
Performance Metrics
Production Speed
250 pcs/min
Speed per line
Technical Specifications
Model Specifications
| Feature | DRQ-D800 | DRQ-D1000 |
|---|---|---|
| Max Bag Width | 380mm x 2 | 480mm x 2 |
| Bag Length | 60-650mm | 60-650mm |
| Film Thickness | 0.02-0.1mm | 0.02-0.1mm |
| Total Power | 15 KW | 15 KW |
| Weight | 1050 KG | 1150 KG |
| Dimensions (L*W*H) | 3800x1250x1300mm | 3800x1650x1300mm |
General Equipment Details
- Power supply: 380V/50HZ
- Max Unwinding diameter: Ф550mm
- Air compressor requirement: 5HP
Features
- Key Capabilities
- Double Line ProductionHeat CuttingSide SealingAdjustable Sealing TemperatureAutomated Stacking
