High Speed CNC Wire Cutting EDM
This high-speed CNC wire cutting EDM machine is designed for precision cutting of electrically conductive materials. It utilizes a thin wire electrode to erode material through electrical discharges, creating intricate and complex shapes with high accuracy.
Technical Specifications
Product Overview
High-Speed CNC Wire Cutting EDM
The DK77 series CNC EDM wire-cutting machine is designed for versatile material processing, handling conductive materials including super-hard alloys, stainless steel, and fragile magnet steels. It excels at creating complex shapes, such as tapered and specially-shaped parts, making it an ideal solution for mold manufacturing and precision component production. With advanced CNC controls, it offers automated operation and high-accuracy results for demanding industrial applications.
Key Features
Primary Applications
Rubber moldsPlastic moldsPunch diesTapered partsComplex-shape spares
- Material Compatibility
- Super-hard alloysQuenching materialsStainless steelMagnet steelFragile materials
Technical Specifications
Model Specifications
| Model | Table Size (mm) | Table Travel (mm) | Max Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| DK7725AZ | 520x336 | 320x250 | 400 | 1,100 |
| DK7732AZ | 576x366 | 400x320 | 400 | 1,300 |
| DK7740AZ | 720x460 | 500x400 | 400 | 1,700 |
| DK7750AZ | 846x555 | 630x500 | 500 | 2,500 |
| DK7763AZ | 1100x720 | 800x630 | 500 | 4,000 |
| DK7780AZ | 1430x900 | 1200x800 | 450 | 5,000 |

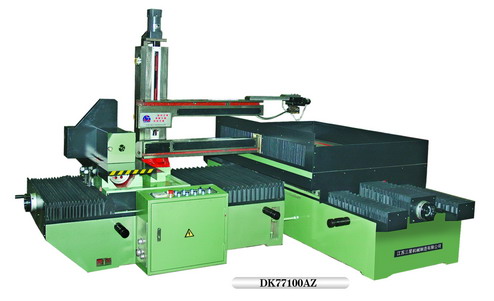

| DK77100AZ | 1430x1100 | 1200x1000 | 450 | 5,500 |
| DK77120AZ | 2280x11280 | 1200x1600 | 500 | 6,000 |
- Overall Dimensions
- 1400x1060x1500 mm
