High-Resolution Thermal Imaging Camera with Rotating LCD

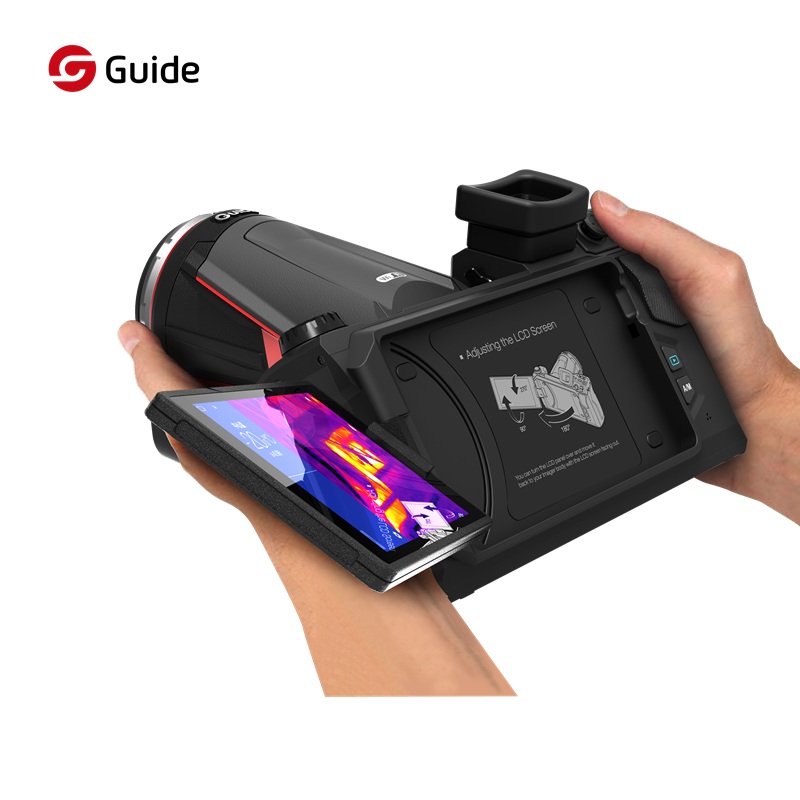

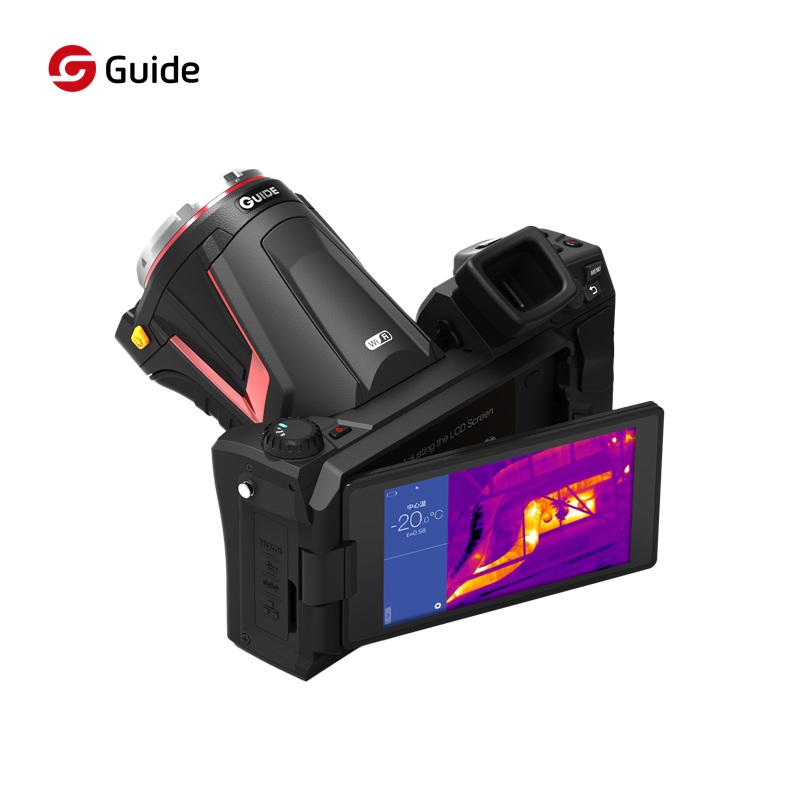

This thermal imaging camera is an intelligent inspection device with high resolution for pinpointing overheating. It features an ergonomic rotating LCD and lens design for comfortable use.
Technical Specifications
Overview
High-Performance Thermal Inspection
This advanced thermal imaging camera is designed for professional electrical and mechanical inspections, offering high-resolution thermal data capture. It features an ergonomic rotating LCD and lens design, ensuring operator comfort when inspecting overhead components. Built on an open Android operating system, the device functions as both a powerful thermal imager and a versatile mobile terminal for various diagnostic applications.
Key Features
- Key Capabilities
- Android OSRotating LCDMulti-spectral Image FusionWi-Fi ConnectivityTouch Screen
Imaging Performance
IR Resolution
- 384 × 288 (C400)
- 640 × 480 (C640 / C640P)
Display
5 inch
Screen Size
720 P
Resolution
Display Modes
IRVisiblePIPMIF
Technical Specifications
- Temperature Range
- -20°C to 2000°C
- Dimensions
- 206mm × 145mm × 135mm
- Weight
- 1350 g
Lens Options
Available Lens Configurations
| Lens Type | Specification |
|---|---|
| Wide Angle | 13mm / F1.1 |
| Telephoto | 55mm / F1.1 |
| Ultra Telephoto | 85mm / F1.2 |
| Macro Lens | 8°×6° / 14°×11° |
