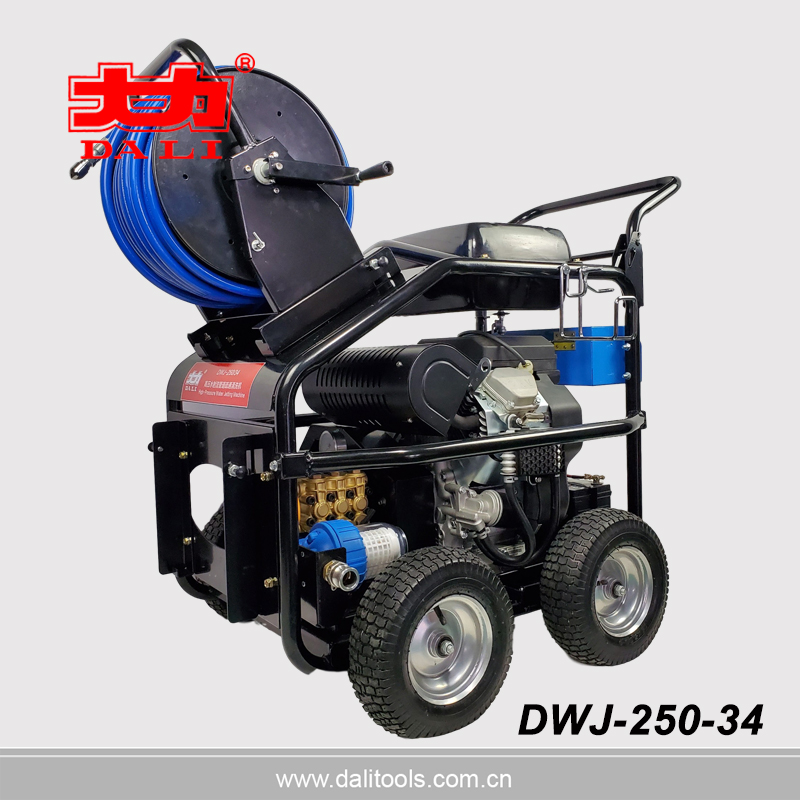

High-Pressure Water Jetting Machine
This high-pressure water jetting machine is designed for heavy-duty cleaning applications. It features a robust engine, a high-pressure pump, and a durable frame with wheels for easy maneuverability.
Technical Specifications
Overview
High-Performance Drain Cleaning Solution
This high-pressure water jetting machine is engineered for heavy-duty drain cleaning in lines ranging from 50mm to 250mm (2 to 10 inches). It features a powerful 16.3KW (22HP) gasoline engine and delivers a working pressure of 3600psi, making it ideal for clearing long drain lines up to 60 meters. The unit is mounted on a four-wheel chassis with an integrated hose reel for superior maneuverability and ease of use in professional environments.
Performance Metrics
Key Performance Metrics
3,600 psi
Working Pressure
34 lpm
Flow Rate
16.3 KW
Engine Power
Technical Specifications
- Operating Range
- 50-250mm (2 to 10 inches) diameter, up to 60m (200ft) length
- Machine Weight
- 158 Kgs
- Key Features
- Pulse TechnologyFour-Wheel ChassisIntegrated Hose ReelFoot Pedal Control
Accessories
Available Jetter Nozzles
| Description |
|---|
| 30° Propulsion Nozzle for 1/4” |
| 30° Propulsion Nozzle for 3/8” |
| 30° Propulsion Nozzle for 1/2” |
| 15° Penetrating Nozzle for 1/4” |
| 15° Penetrating Nozzle for 3/8” |
| 15° Penetrating Nozzle for 1/2” |
| Drop Head Nozzle for 1/8” |
| Drop Head Nozzle for 1/4” |
Available Jetter Hoses
- 3/8” x 35’ (9.5mm x 10M)
- 1/4” x 200’ (6.35mm x 60M)
- 3/8” x 200’ (9.5mm x 60M)
- 1/2” x 200’ (12.7mm x 60M)
Turbo Nozzle Options
- Brass Turbo Nozzle (4000psi/275bar)
- Brass Turbo Nozzle (5000psi/345bar)
