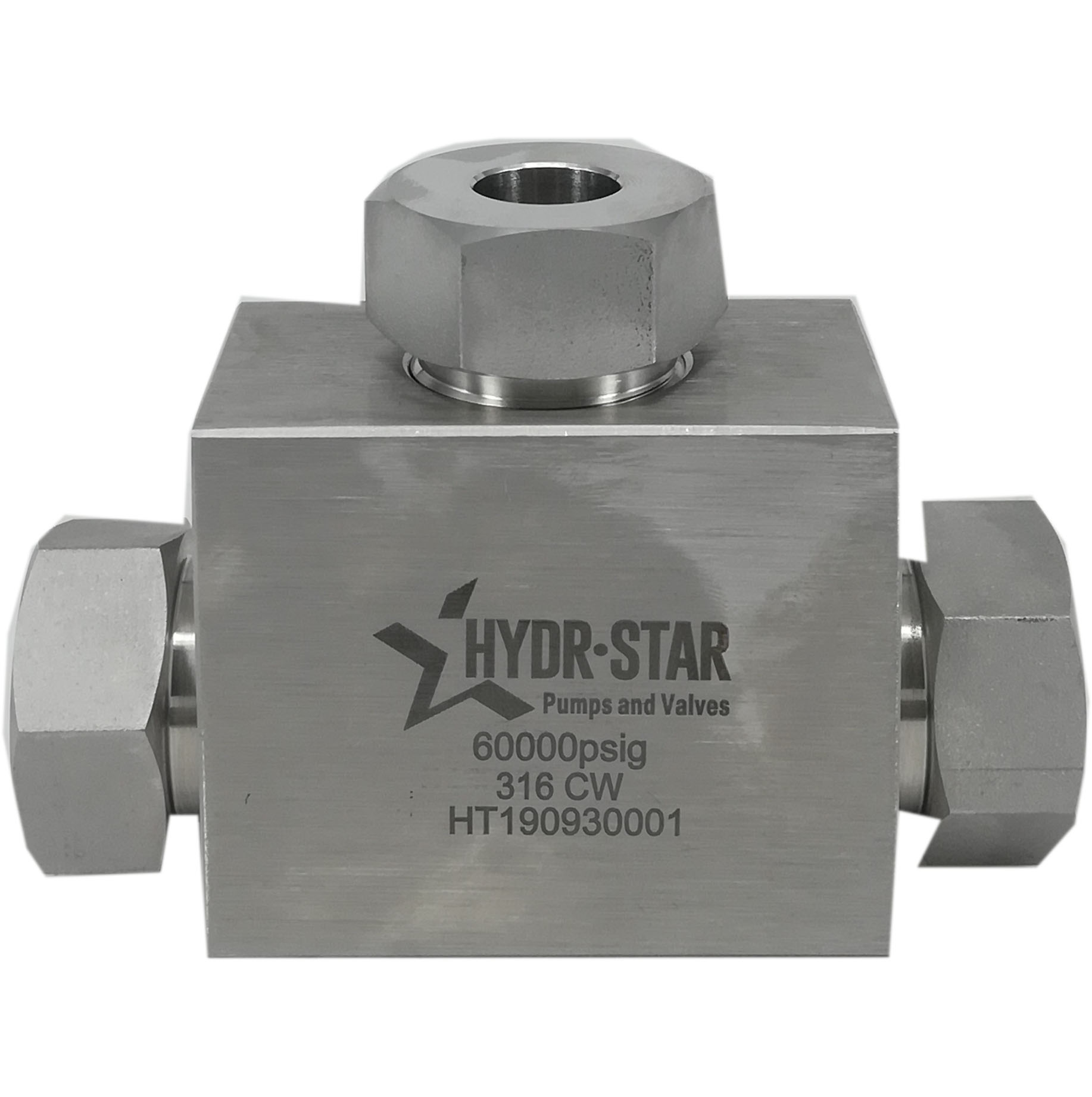

High-Pressure Stainless Steel Tee Fitting
This tee fitting features a 316 stainless steel structure. It is capable of handling working pressures up to 60000psig and is suitable for sour gas service.
Technical Specifications
Overview
High-Performance Industrial Tee Fitting
This high-pressure tee fitting is engineered for demanding industrial hydraulic and pneumatic systems, offering superior durability and safety. Constructed from high-grade 316 stainless steel, it is designed to maintain integrity under extreme pressures up to 60,000 psig. The component is also compatible with sour gas service environments, making it a reliable solution for critical infrastructure and valve assemblies.
Performance Specifications
Maximum Working Pressure
60,000 psig
Working Pressure
Material and Compatibility
- Primary Construction
- 316 Stainless Steel
- Available Materials
- Inconel 718Inconel 625Inconel 825
- Sour Gas Service
- Yes
Technical Dimensions

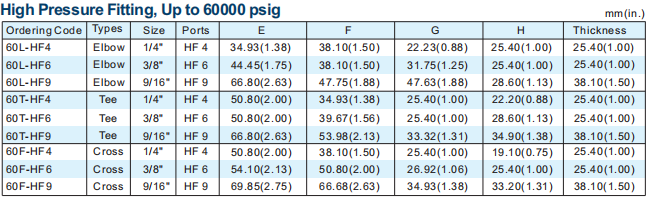

High-Pressure Fitting Dimensions (60k psig)
| Code | Size | E (mm) | F (mm) |
|---|---|---|---|
| 60T-HF4 | 1/4" | 50.8 | 34.93 |
| 60T-HF6 | 3/8" | 50.8 | 39.67 |
| 60T-HF9 | 9/16" | 66.8 | 53.98 |
