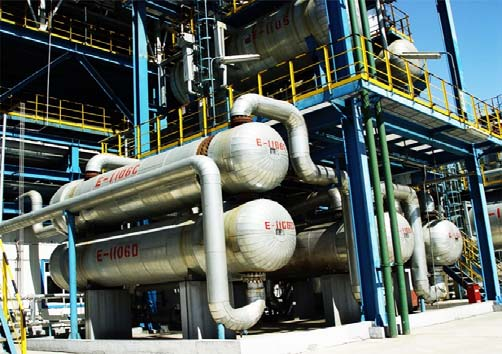

High Pressure Hydrogenating Heat Exchanger
These high-pressure hydrogenating heat exchangers are engineered to withstand demanding conditions in hydrogenation processes. They facilitate efficient heat transfer between fluids while maintaining structural integrity.
Technical Specifications
Product Overview
High-Pressure Hydrogenating Heat Exchanger
This high-pressure heat exchanger is engineered for demanding industrial environments, specifically tailored for hydrogenation, hydrocracking, and ammonia plant applications. Featuring a specialized sealing design, it offers a simplified structure that facilitates easier on-site maintenance while reducing overall size and weight. This robust construction ensures reliable, cost-effective thermal energy transfer even under extreme operational conditions.
Technical Specifications
Design Pressure
7 MPa
Minimum Pressure
35 MPa
Maximum Pressure
Design Temperature
300 ℃
Minimum Temperature
700 ℃
Maximum Temperature
- Max Shell Diameter
- 1800 mm
Applications
- Suitable For
- Hydrogenation UnitsHydrocracking UnitsAmmonia PlantsHigh Pressure Heat Transfer Services
Design Features
Design Advantages
- Specialized sealing structure
- Simplified maintenance at site
- Reduced equipment flange size
- Optimized main bolt design
- Lower operational costs
- High reliability
