Technical Specifications
Product Overview
High-Pressure Hydraulic Hose
This industrial-grade hydraulic hose is engineered for demanding high-pressure fluid transfer applications in heavy machinery and industrial systems. Featuring a multi-layered reinforced structure, it offers superior durability, abrasion resistance, and reliable performance in extreme operating conditions. It is compatible with a wide range of hydraulic fluids, including hydraulic oil, fuel oil, lubricants, emulsions, glycol, and water.
Technical Specifications
Standard Temperature Range
-40 C
Min Temp
120 C
Max Temp
- Available Series
- R1R21SN2SN4SP4SHR9R10R12R13R15
- Cold Resistant Variant
- -55 C
Standards & Compliance
Certified Standards
- GB/T10544-2003
- MT/T98-2006
Certification Codes
XK13-022-00082MEE100510
Performance Metrics

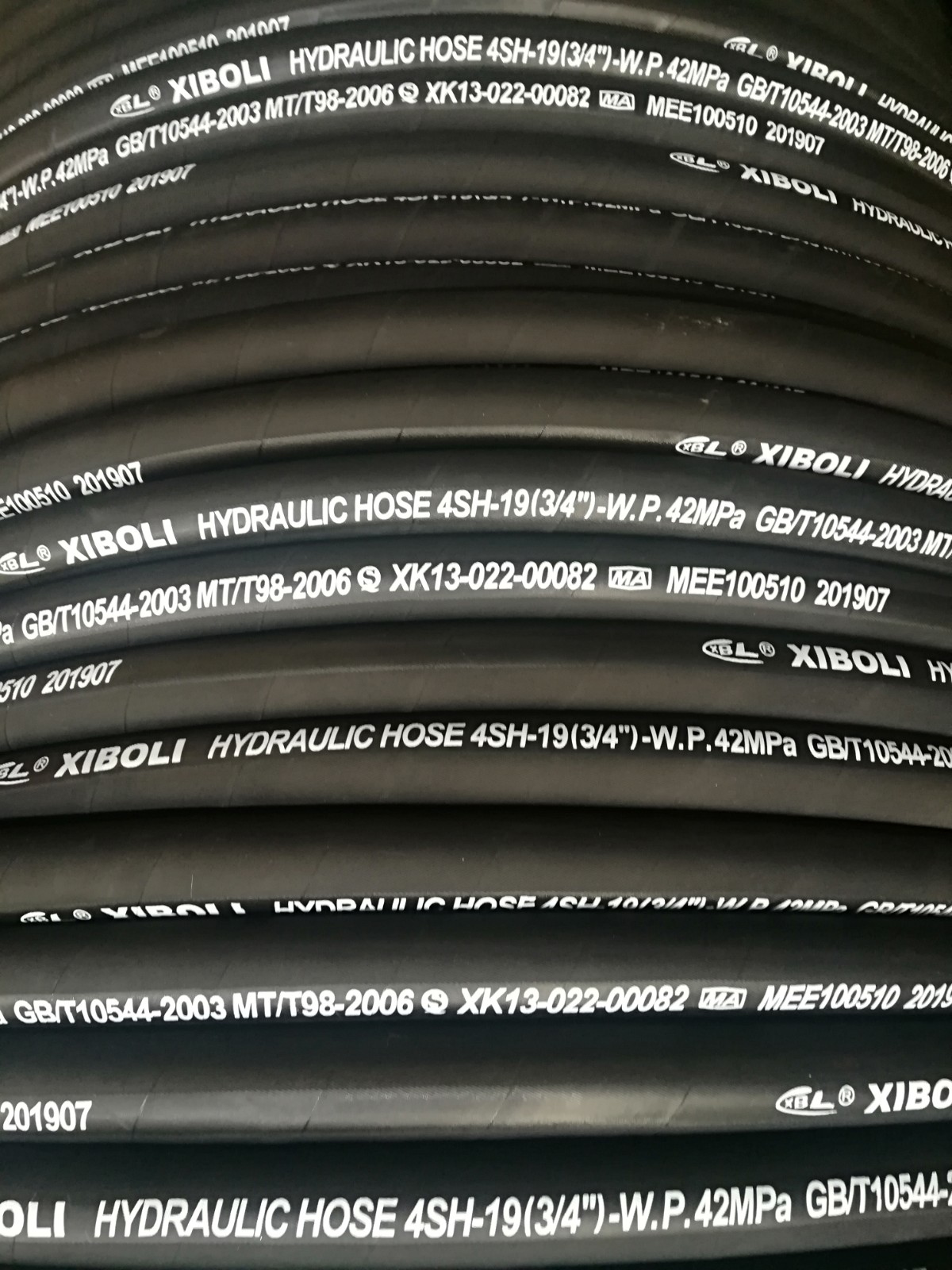

- Working Pressure (4SH-19)
- 42 MPa
- Size (4SH-19)
- 3/4 inch
