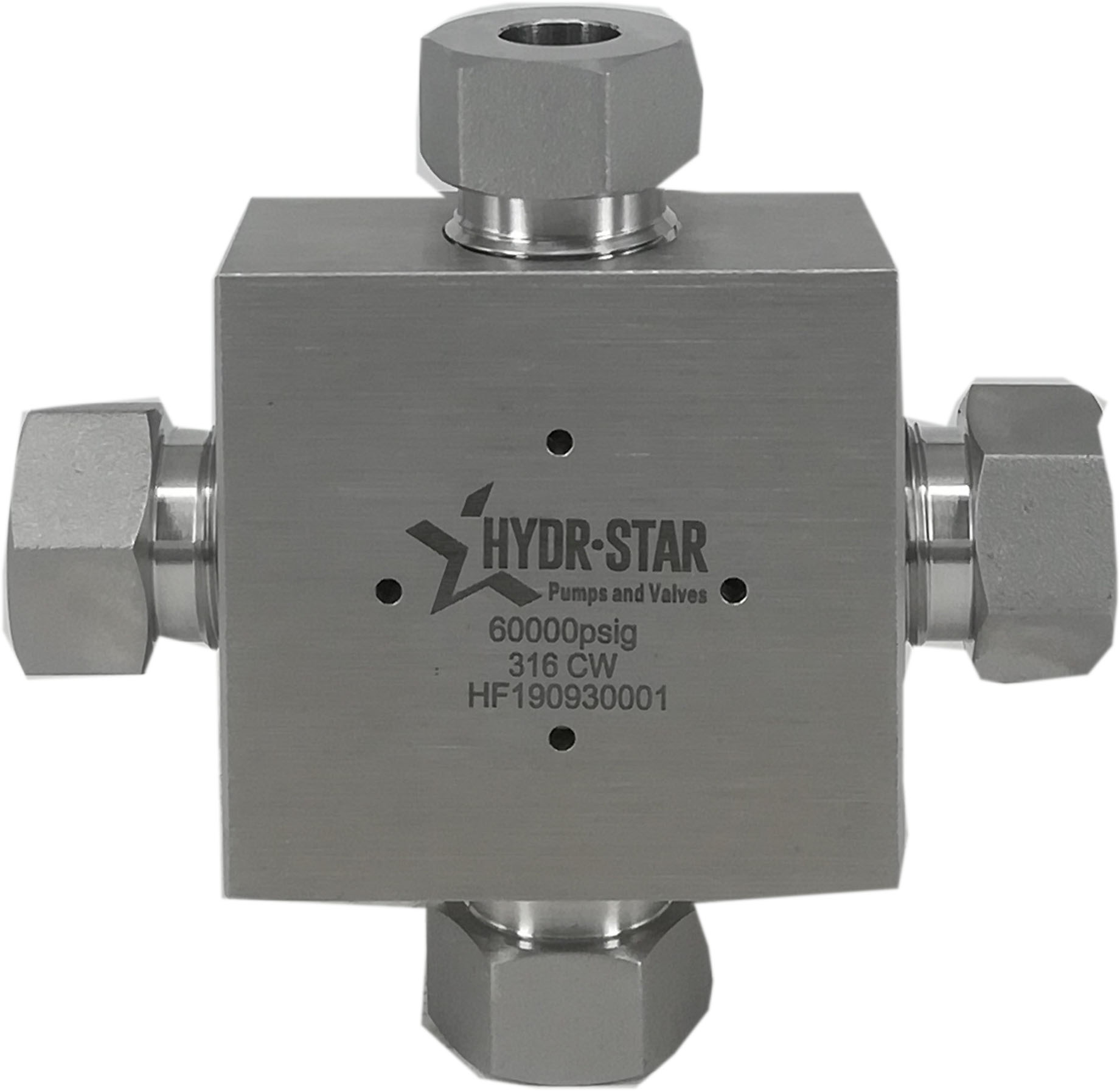

High-Pressure Cross Fitting
This high-pressure cross fitting features a 316 stainless steel structure. It is capable of handling work pressures up to 60000psi and is also available for sour gas service.
Technical Specifications
Product Overview
High-Performance Fluid Control
This high-pressure cross fitting is engineered for demanding industrial environments such as chemical processing and hydraulic systems. Constructed from 316 stainless steel, it provides exceptional durability and leak-free performance under extreme pressures. The fitting is also available in specialized alloys and is suitable for sour gas service, ensuring reliability in harsh operating conditions.
Technical Capabilities
Performance Metrics
60,000 psig
Maximum Working Pressure
Service Compatibility
Sour Gas ServiceHigh PressureCorrosive Media
Material Specifications
- Standard Material
- 316 Stainless Steel
- Special Materials Available
- Inconel 718Inconel 625Inconel 825
Dimensional Data

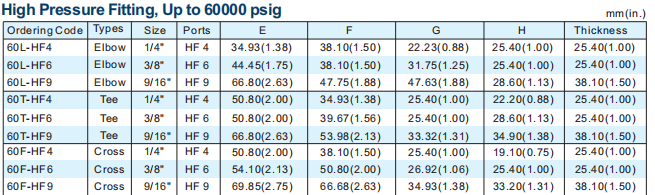

High Pressure Cross (60,000 psig) Specifications
| Ordering Code | Size | Port Type | E (mm) | F (mm) | Thickness (mm) |
|---|---|---|---|---|---|
| 60F-HF4 | 1/4" | HF 4 | 50.8 | 38.1 | 25.4 |
| 60F-HF6 | 3/8" | HF 6 | 54.1 | 50.8 | 25.4 |
| 60F-HF9 | 9/16" | HF 9 | 69.85 | 66.68 | 38.1 |

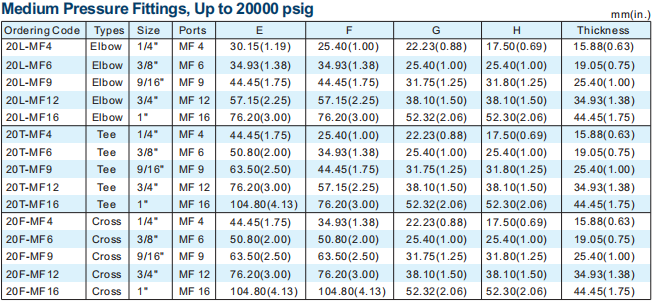

Medium Pressure Cross (20,000 psig) Specifications
| Ordering Code | Size | Port Type | E (mm) | Thickness (mm) |
|---|---|---|---|---|
| 20F-MF4 | 1/4" | MF 4 | 44.45 | 15.88 |
| 20F-MF6 | 3/8" | MF 6 | 50.8 | 19.05 |
| 20F-MF9 | 9/16" | MF 9 | 63.5 | 25.4 |
| 20F-MF12 | 3/4" | MF 12 | 76.2 | 34.93 |
| 20F-MF16 | 1" | MF 16 | 104.8 | 44.45 |
Applications
Recommended Applications
- Hydraulic Systems
- Chemical Processing
- Oil and Gas Fluid Handling
- High-Pressure Research Labs
