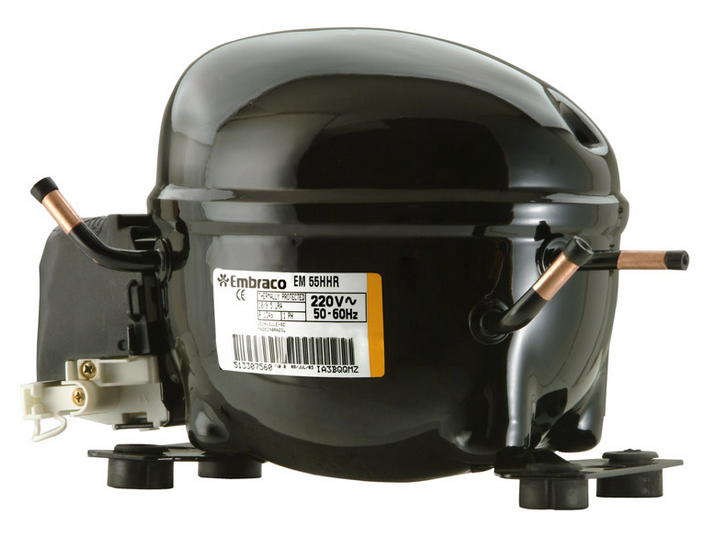

Hermetically Sealed Refrigerator Compressor
These hermetically sealed compressors are designed for commercial refrigeration applications. They feature an electric motor with internal protection and are available in versions with forced cooling.
Technical Specifications
Product Overview
Versatile Hermetically Sealed Compressor
This hermetically sealed reciprocating compressor is engineered for a wide range of refrigeration and cooling applications, including fresh food cabinets, ice makers, and walk-in coolers. It supports multiple refrigerant types and offers flexible evaporating temperature ranges to suit various industrial and commercial needs. Designed for reliability, it provides efficient cooling performance across diverse operating conditions.
Technical Specifications
- Electrical Requirements
- 220V~, 50-60Hz
- Compatible Refrigerants
- R406R410AR22R407CR134a
Operating Ranges
Evaporating Temperature Ranges
| Application Type | Temp Range (°F) |
|---|---|
| MBP (Medium Back Pressure) | 14 - 32 |
| HBP (High Back Pressure) | 32 - 59 |
| L/MBP (Low/Medium Back Pressure) | -31 - 23 |
| L/M/HBP (Wide Range) | -31 - 59 |
Typical Applications
- Fresh food cabinets
- Drink coolers
- Ice makers
- Walk-in coolers and freezers
- Dehumidifiers
- Dryers
- Commercial display counters
- Drinking fountains
Compliance
Certifications
CE
