Technical Specifications
Overview

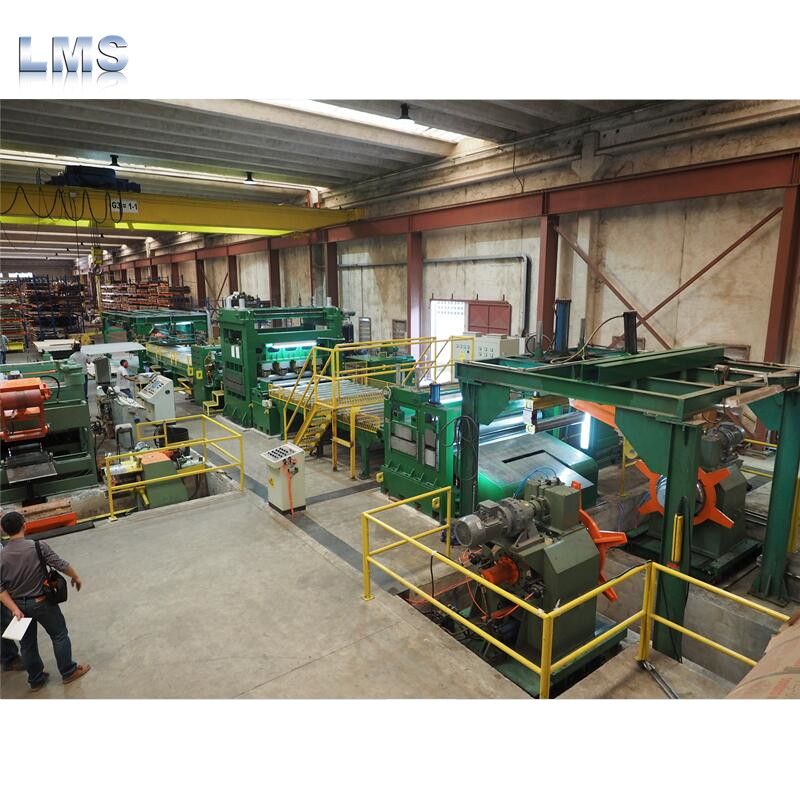

High-Performance Processing Line
This heavy-duty cut-to-length line is engineered for high-throughput metal processing, combining decoiling, leveling, and shearing into a single automated system. Designed for durability and precision, the line features a high-rigidity leveler frame and advanced hydraulic shearing capabilities. It is optimized for processing materials like hot-rolled steel plates, ensuring consistent output quality and minimal material waste.
Technical Specifications
- Max Strip Thickness
- 25 mm
- Max Strip Width
- 2500 mm
- Compatible Materials
- Hot Rolled SteelMetal Alloys
Decoiler System
Automated Features
- Automatic coil in-line centering
- Automatic strip parameter detection
- Decoiler Type
- Hydraulic Double-head
- Coil Inner Diameter
- 508-760 mm
Leveling & Processing
Surface Protection
Paper LaminatingPlastic Film Laminating
- Leveler Design
- 4-Hi (11-13 leveling rolls)
- Pre-leveling
- 5-roller lever
Shearing & Stacking
Max Stacking Load
20 tons
Max Load
- Shear Type
- Stop-to-cut hydraulic shear
- Stacker Type
- Bomb-Door type with air blower and baffle
