Heatmap Traffic Analysis Device

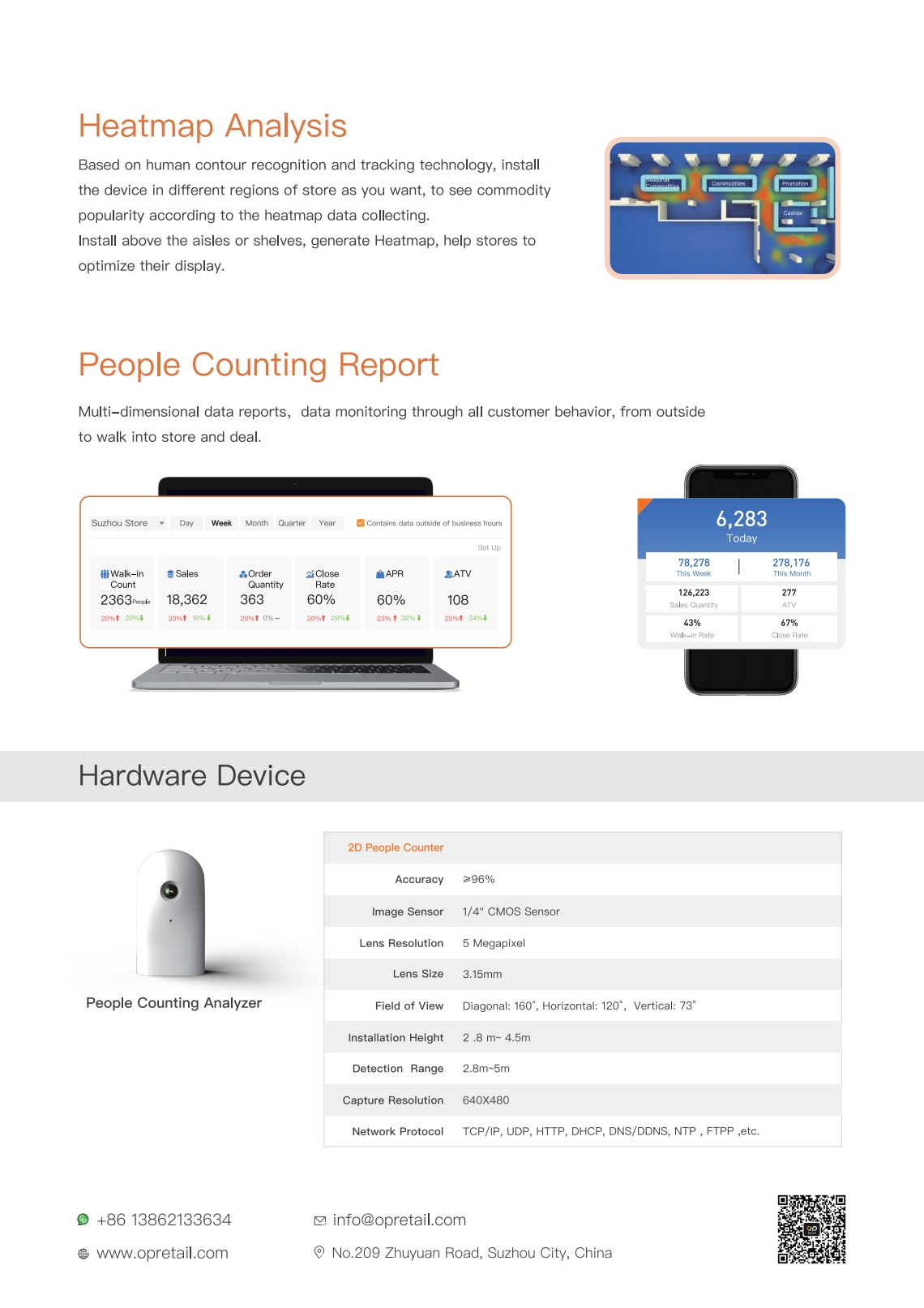

This device analyzes customer in-store walking trajectories and evaluates the dwell rate in different zones. It records commodity popularity based on heatmap data and provides multi-dimensional people counting reports.
Technical Specifications
Overview

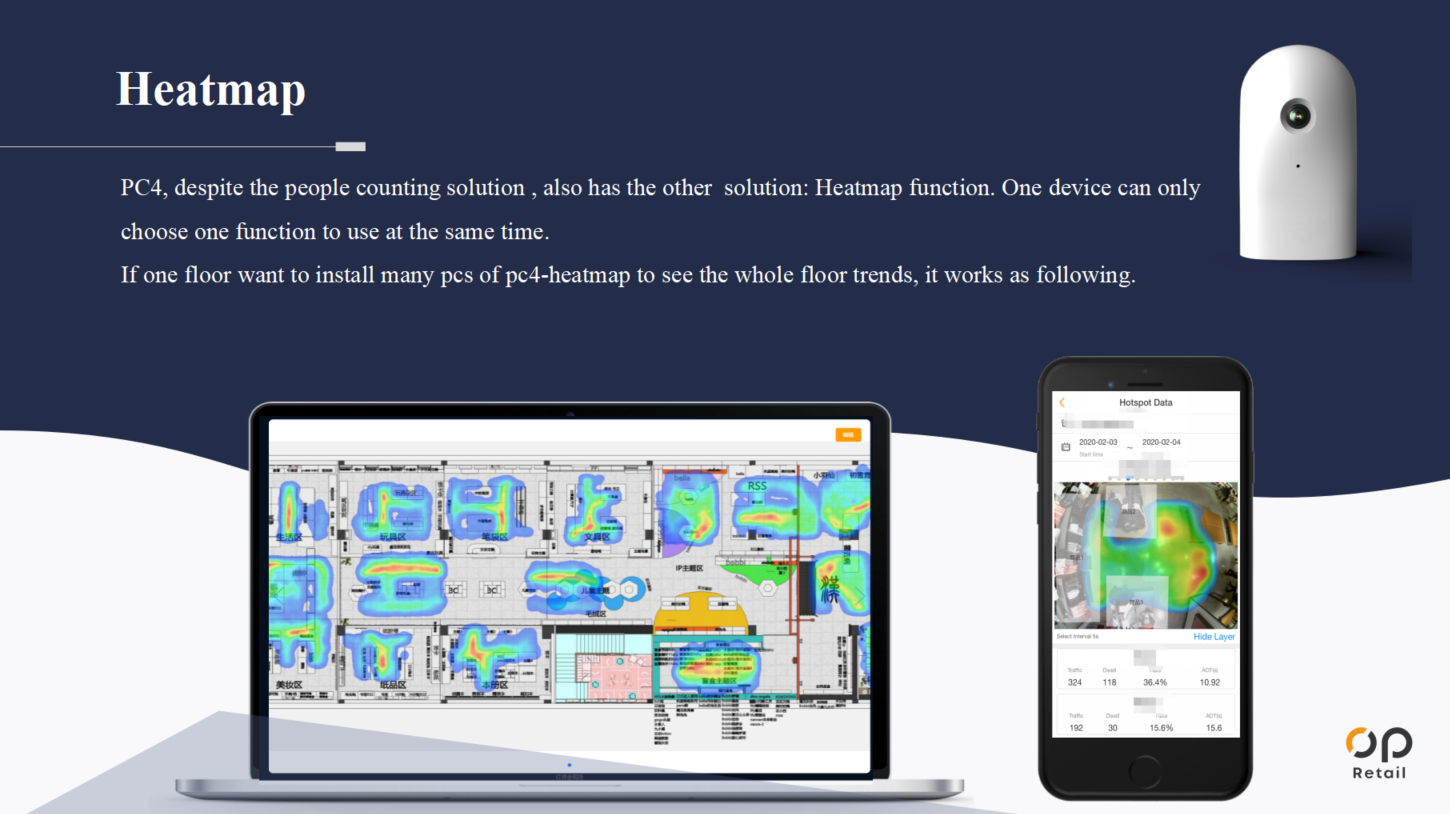

Advanced Traffic and Heatmap Analysis
This intelligent analysis device utilizes advanced human contour recognition and tracking technology to provide deep insights into customer behavior. Designed for retail and commercial environments, it offers dual-functionality, allowing users to choose between precise people counting or comprehensive heatmap analysis for store layout optimization. The system supports multi-dimensional reporting, enabling businesses to aggregate data across multiple locations for improved operational efficiency and resource allocation.
Key Features
- Core Capabilities
- Heatmap AnalysisPeople CountingHuman Contour RecognitionMulti-store ManagementVisual Data RepresentationData Aggregation
Hardware Specifications
- Image Sensor
- 1/4" CMOS Sensor
- Lens Resolution
- 5 Megapixel
- Lens Size
- 3.15 mm
- Capture Resolution
- 640x480

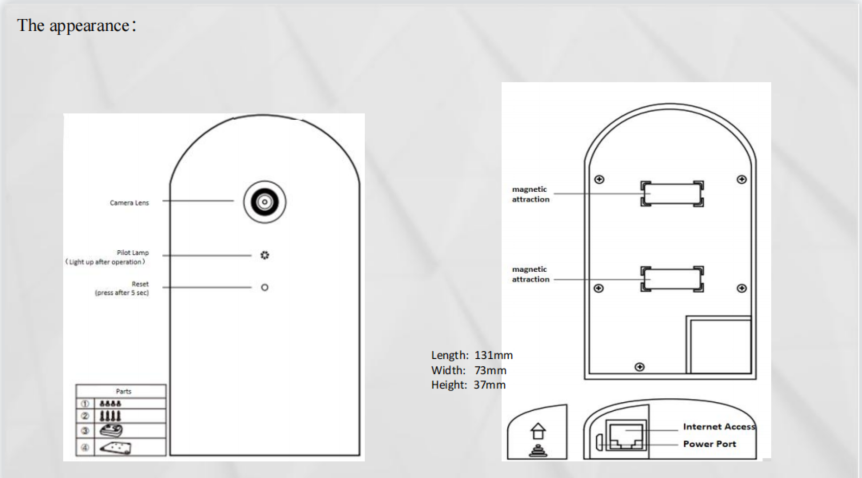

- Dimensions
- 131mm x 73mm x 37mm
Performance Metrics
People Counting Accuracy
96 %
Accuracy
Field of View
- Diagonal: 160°
- Horizontal: 120°
- Vertical: 73°
Installation Requirements

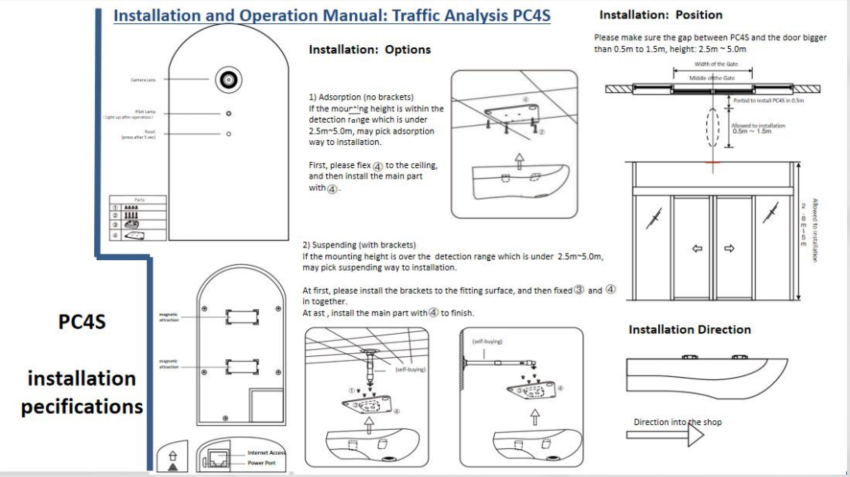

Mounting Methods
Magnetic AttractionAdsorptionBracket Suspension

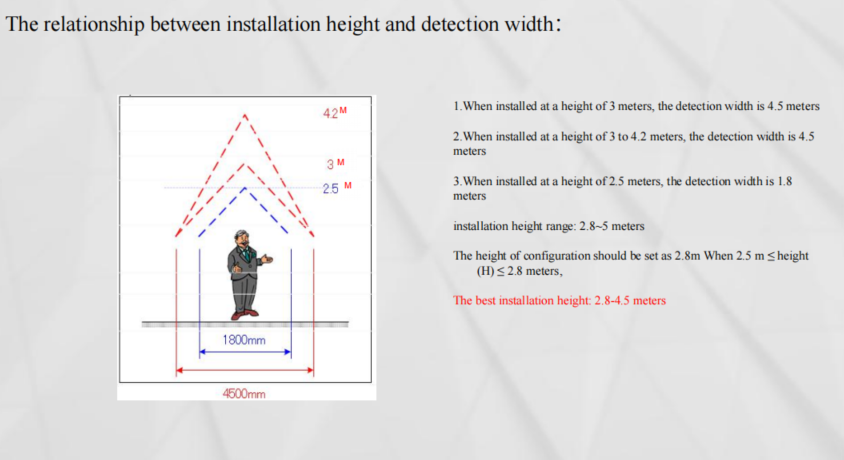

- Installation Height Range
- 2.8m - 5m
- Detection Range
- 2.8m - 5m
Connectivity
- Supported Protocols
- TCP/IPUDPHTTPDHCPDNS/DDNSNTPFTPP
