Heat Shrinkable Tubing
This heat shrinkable tubing provides waterproof protection with its hot-melt adhesive. It is suitable for cable termination and intermediate connecting insulation protection up to 36kV.
Technical Specifications
Overview
High-Performance Heat Shrinkable Tubing
This thick-wall heat shrinkable tubing is engineered for medium voltage applications up to 36kV, providing exceptional protection against moisture and environmental pressure. Featuring a 3:1 shrinkage ratio and a hot-melt adhesive lining, it ensures a secure, waterproof seal for cable terminations and intermediate connections. Its halogen-free composition and resistance to UV, weathering, and corrosion make it a reliable choice for demanding electrical insulation needs.
- Key Features
- Halogen-freeUV ResistantWaterproofCorrosion ResistantThick Wall
Technical Specifications
- Shrinkage Ratio
- 3:1
- Max Voltage
- 36 kV
- Color
- Black
- Operating Temperature
- -40°C to +90°C
- Compliance Standard
- IEC 60684
Size Specifications

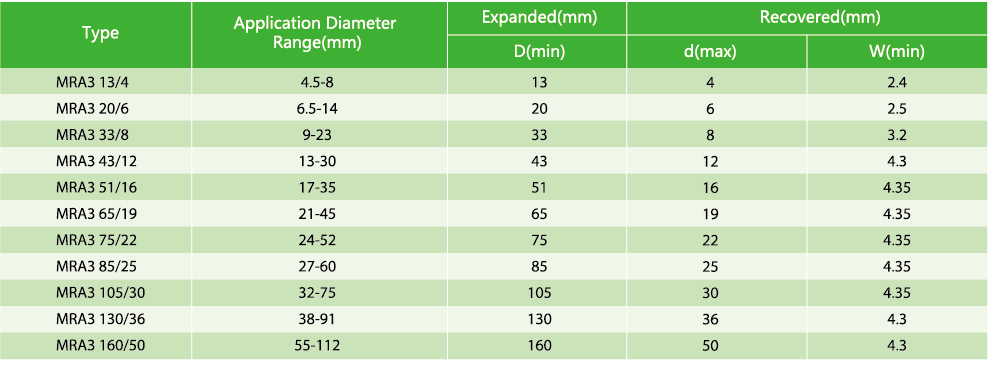

Size and Dimension Matrix
| Type | App. Diameter (mm) | Expanded (mm) | Recovered (mm) | Wall Thickness (mm) |
|---|---|---|---|---|
| MRA3 13/4 | 4.5-8 | 13 | 4 | 2.4 |
| MRA3 20/6 | 6.5-14 | 20 | 6 | 2.5 |
| MRA3 33/8 | 9-23 | 33 | 8 | 3.2 |
| MRA3 43/12 | 13-30 | 43 | 12 | 4.3 |
| MRA3 51/16 | 17-35 | 51 | 16 | 4.35 |
| MRA3 65/19 | 21-45 | 65 | 19 | 4.35 |
| MRA3 75/22 | 24-52 | 75 | 22 | 4.35 |
| MRA3 85/25 | 27-60 | 85 | 25 | 4.35 |
| MRA3 105/30 | 32-75 | 105 | 30 | 4.35 |
| MRA3 130/36 | 38-91 | 130 | 36 | 4.3 |
| MRA3 160/50 | 55-112 | 160 | 50 | 4.3 |
