Heat Shrinkable Cable Skirt for Medium Voltage Termination
Heat shrinkable skirt used for medium voltage termination up to 36kV. It increases creepage distance and scatters rain for outdoor use.
Technical Specifications
Overview
Medium Voltage Cable Termination Skirt
This heat-shrinkable cable skirt is engineered for medium voltage terminations up to 36kV. Designed specifically for outdoor applications, it effectively increases creepage distance and scatters rain to maintain electrical integrity. Its robust construction provides superior electrical and mechanical properties, ensuring long-term reliability in demanding power infrastructure environments.
Key Features
- Key Features
- Anti-trackingCorrosion ResistantUV ResistantWeathering Resistant
Technical Specifications
Standard Color
Red
Voltage Rating
36 kV
Max Voltage
- Operating Temperature
- -40°C to +110°C

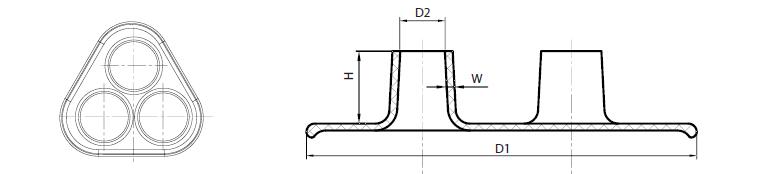

Dimensional Data
MCES Series Dimensions
| Type | Expanded D1(mm) | Recovered D2 min(mm) | Recovered D2 max(mm) | Nominal Height(mm) | Width(mm) |
|---|---|---|---|---|---|
| MCES 37/14 | 85 | 37 | 14 | 20 | 2.5 |
| MCES 50/21 | 95 | 50 | 21 | 25 | 2.5 |
| MCES 67/28 | 112 | 67 | 28 | 30 | 2.8 |
| MCES3 50/18 | 140 | 50 | 18 | 25 | 2.5 |
