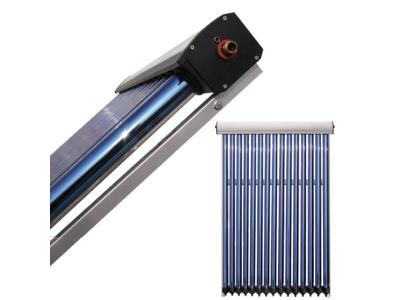

Heat Pipe Solar Collector for Water Heating
This heat pipe solar collector uses evacuated tube technology for efficient solar thermal energy conversion. It is designed for residential and commercial water heating applications, offering reliable performance in various climates.
Technical Specifications
Product Overview
High-Efficiency Solar Thermal Solution
This heat pipe solar collector utilizes advanced evacuated tube technology to deliver superior heating efficiency compared to traditional flat panel collectors. Designed for both residential and commercial water heating, the system features a vacuum-insulated design that minimizes heat loss and ensures reliable operation across various climates. Its robust construction and pressurized heat pipe mechanism allow for rapid heat transfer, making it an ideal choice for sustainable energy integration.
Key Features
Key Advantages
- High heating efficiency
- Quick operation under pressure
- Strong freezing resistance
- No water inside evacuated tubes
- Easy installation and maintenance
- Versatile mounting (wall, roof, or ground)
Technical Specifications
- Outer Manifold Material
- Aluminum alloy (2.0mm thickness)
- Header Pipe Material
- Red Copper (1.0mm thickness)
- Heat Pipe Material
- Red Copper (0.6mm thickness)
- Insulation Material
- High Density Rock wool
- Frame Material
- Aluminum alloy (2.0mm thickness)
- Seal Material
- Stabilized high temperature silicon
- Vacuum Tube Construction
- Borosilicate glass 3.3 with AL-SS-CU absorb coating
Performance Metrics
Working Pressure
6 bar
Working Pressure
12 bar
Testing Pressure
Installation

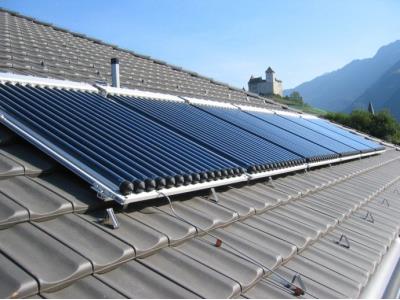

- Compatible Mounting
- Flat roofInclined roofWallGround
