Heat Pipe Solar Collector for Water Heating

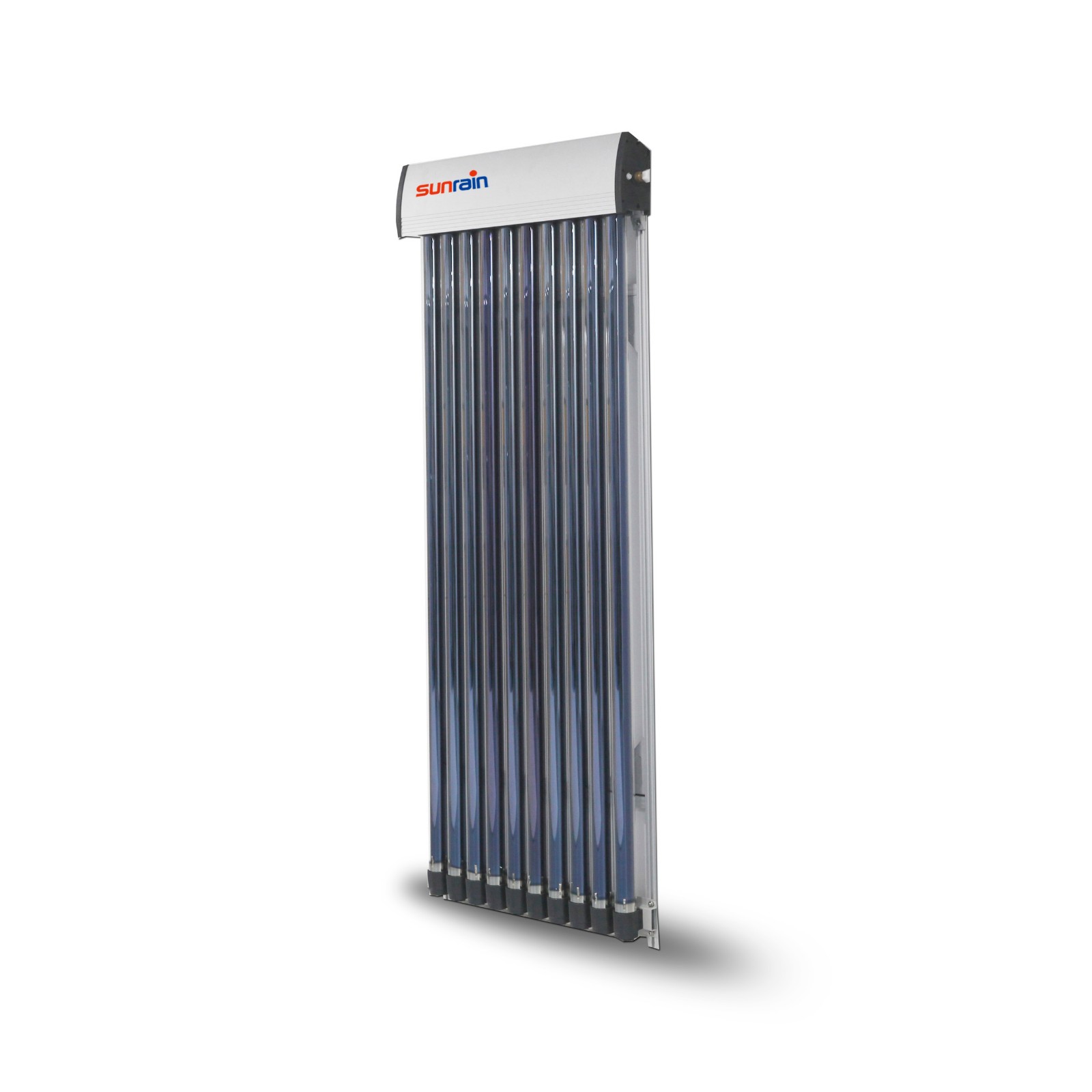

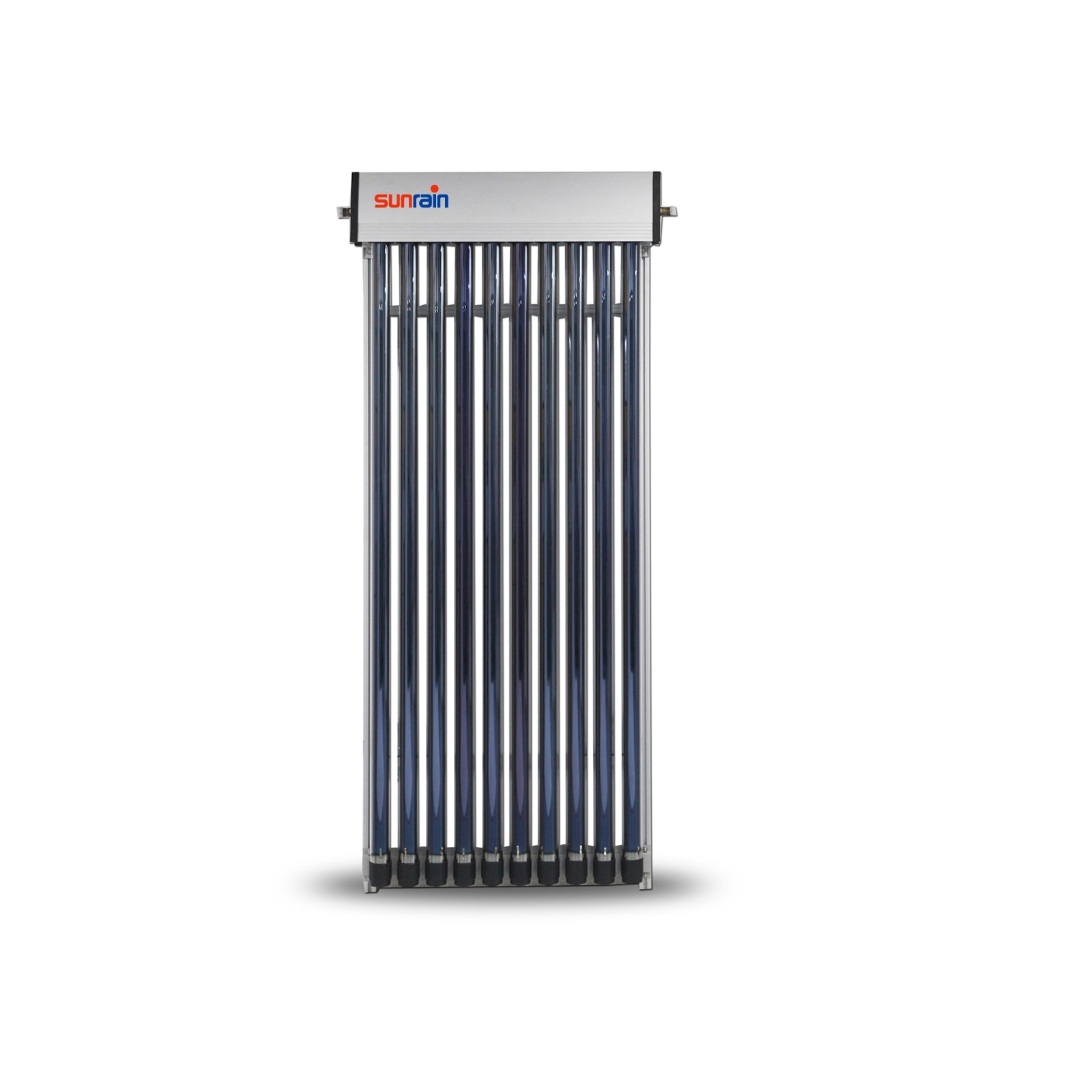

This heat pipe solar collector is designed for efficient solar energy absorption and rapid heat transfer. It features an aluminum manifold and frame, making it suitable for roof integration.
Technical Specifications
Overview
High-Efficiency Solar Heating
This heat pipe solar collector offers a sophisticated solution for residential and commercial water heating. Utilizing advanced evacuated tube technology, it ensures rapid heat transfer and superior thermal performance, even in colder climates. Its durable aluminum manifold and frame design provide a sleek aesthetic that integrates seamlessly with roof structures, while the simple, modular construction facilitates easy installation and long-term maintenance.
Certifications & Technology
- Certifications
- Solar KeymarkMCSSRCC
- Core Technology
- Heat pipe evacuated tube collector

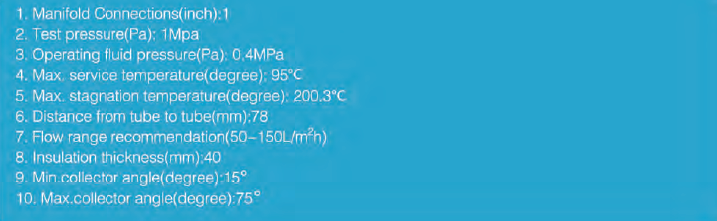

Technical Specifications
- Manifold Connection
- 1 inch
- Test Pressure
- 1 MPa
- Operating Fluid Pressure
- 0.4 MPa
- Max Service Temperature
- 95 °C
- Max Stagnation Temperature
- 200.3 °C
- Insulation Thickness
- 40 mm
- Collector Angle Range
- 15° to 75°
- Recommended Flow Range
- 50-150 L/m²h
Model Configurations
Model Specifications

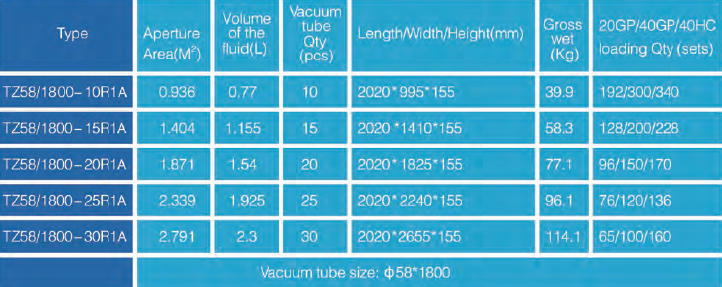

| Model | Aperture Area (m²) | Fluid Volume (L) | Tube Qty | Weight (kg) |
|---|---|---|---|---|
| TZ58/1800-10R1A | 0.936 | 0.77 | 10 | 39.9 |
| TZ58/1800-15R1A | 1.404 | 1.155 | 15 | 58.3 |
| TZ58/1800-20R1A | 1.871 | 1.54 | 20 | 77.1 |
| TZ58/1800-25R1A | 2.339 | 1.925 | 25 | 96.1 |
| TZ58/1800-30R1A | 2.791 | 2.3 | 30 | 114.1 |
