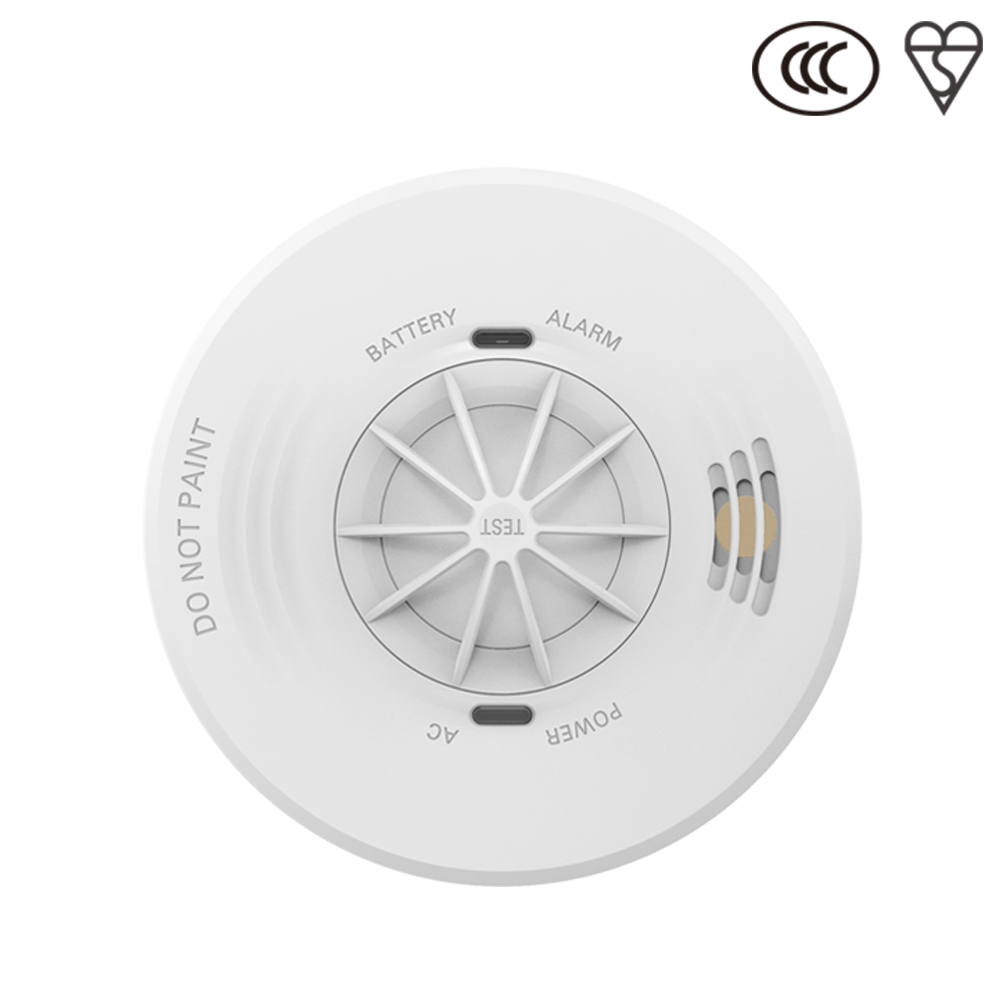

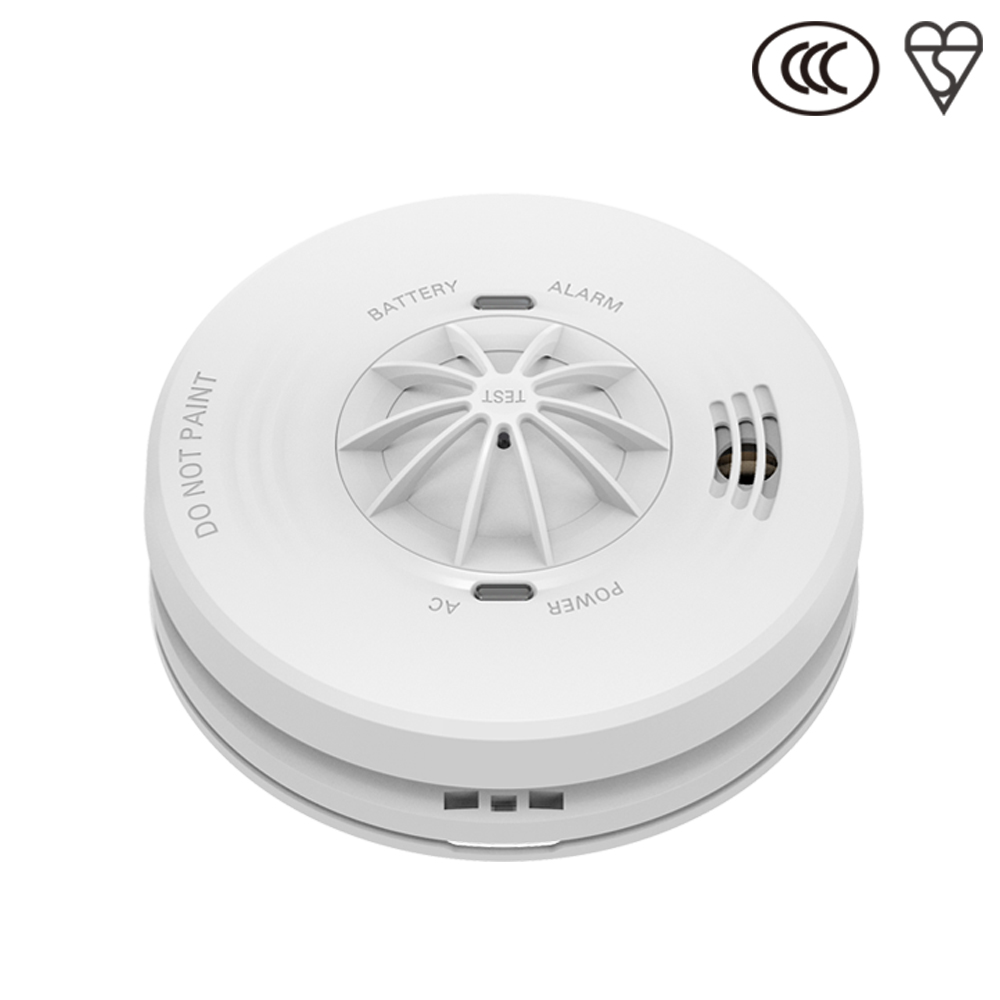

Heat Alarm with Wired/Wireless Interconnection
This heat alarm uses AC 220V main power with a DC 9V battery backup. It can be configured for wired or wireless interconnection, allowing multiple alarms to communicate.
Technical Specifications
Overview
Reliable Heat Detection & Interconnection
This heat alarm is designed for rapid temperature detection, triggering alerts when ambient temperatures reach 54℃-65℃. It features dual power reliability with AC 220-240V mains and a DC 9V battery backup, ensuring operation during power outages. With advanced wired interconnection capabilities, up to 40 devices can be linked to provide comprehensive coverage across residential or commercial spaces.
Technical Specifications
Alarm Volume
85 dB(A)
Alarm Volume
Operating Environment
| Parameter | Range |
|---|---|
| Temperature | 0℃ ~ 65℃ |
| Humidity | < 93% RH |
- Power Source
- AC 220-240V / 50-60Hz with DC 9V battery backup
- Heat Sensitivity Range
- 54℃ - 65℃
- Compliance Standards
- BS 5446-2:2003ISO8201
Features & Functionality
Operational Modes
- Silence Mode (approx. 8 minutes)
- No Disturb Mode (14 hours)
- Test Mode
- Low Battery Warning
- Interconnection
- Wired interconnection (up to 40 devices)
Physical Dimensions
- Dimensions
- 140mm diameter x 58.8mm depth
- Service Life
- 10 years
