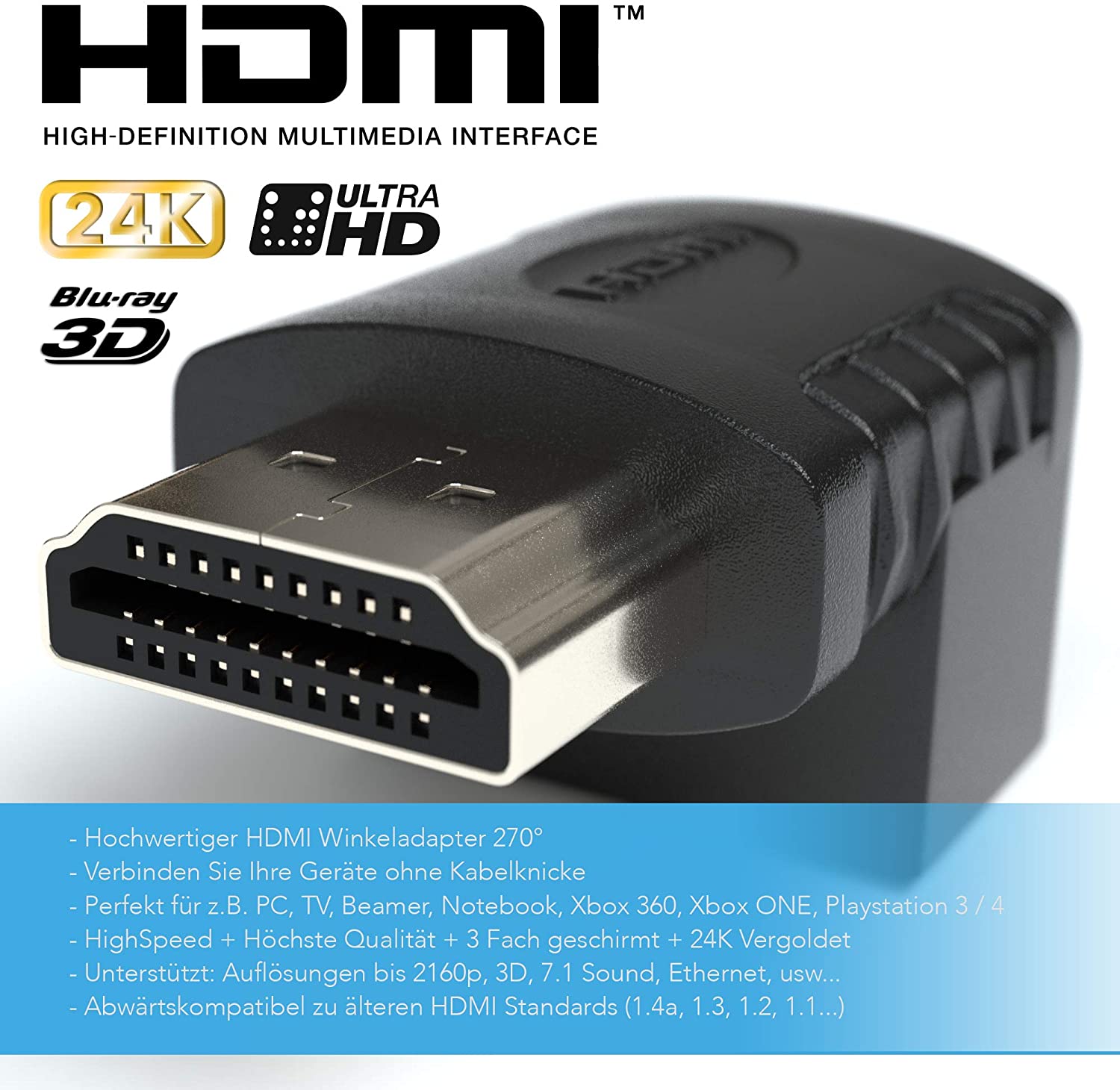

HDMI Male to Female Angle Adapter
This HDMI adapter connects devices without kinking cables, ideal for tight spaces. It supports resolutions up to 2160p, 3D, and 7.1 sound.
Technical Specifications
Overview
High-Performance HDMI Connectivity
This premium HDMI male-to-female angle adapter is designed to facilitate seamless connections in tight spaces, effectively preventing cable kinking. It supports high-end multimedia requirements including 2160p resolution, 3D content, and 7.1 surround sound. Built with 24K gold-plated connectors and triple shielding, it ensures maximum signal integrity for professional and home entertainment setups.
Technical Performance
Key Performance Metrics
2,160 p
Max Resolution
24 K Gold
Connector Plating
270 °
Angle Orientation
Audio Support
7.1 SoundHD Audio
Compatibility
HDMI Standards Support
- HighSpeed HDMI
- Ethernet Support
- Backward compatible with 1.4a
- Backward compatible with 1.3
- Backward compatible with 1.2
- Backward compatible with 1.1
- Compatible Devices
- PCTVBeamerNotebookXbox 360Xbox ONEPlaystation 3Playstation 4Blu-ray Players
Physical Dimensions
Detailed Measurements
| Dimension Type | Measurement |
|---|---|
| Main Connector Body Height | ca. 30.5 mm |
| Angled Connector Height | ca. 20.5 mm |
| Angled Section Width | ca. 16 mm |
| Installed Height (Plugged In) | ca. 21 mm |
Construction
- Shielding
- 3-fold shielding
- Connector Surface
- 24K Gold-plated
