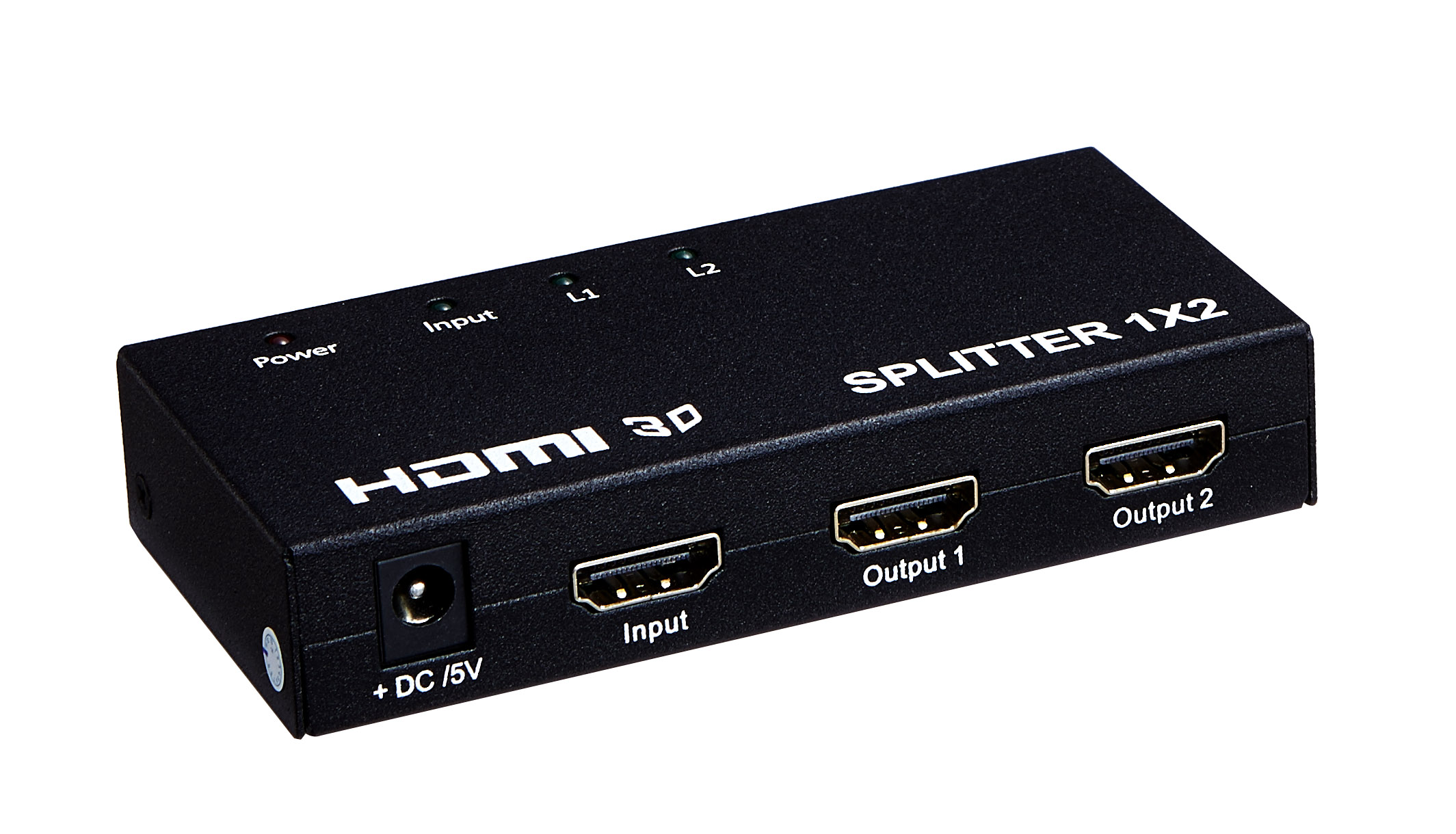

HDMI 1x2 Splitter
The HDMI 1x2 Splitter allows a single HDMI source to connect to multiple HDMI displays. It easily splits one HDMI device's signal to two HDMI-compatible monitors or projectors.
Technical Specifications
Overview
Professional HDMI Distribution
The HDMI 1x2 Splitter efficiently distributes a single HDMI source signal to two HDMI-compatible displays simultaneously. Designed for versatility, it can also function as a signal regenerator when placed at the end of a long HDMI cable run. This compact, reliable solution is ideal for home theater setups, digital signage, and professional presentations requiring high-definition output.
Technical Specifications
Supported Audio Formats
- DTS-HD
- Dolby-trueHD
- DTS
- Dolby-AC3
- DSD
- HDMI Version
- 1.4a
- Maximum Resolution
- 1920x1080 at 60Hz
- Deep Color Support
- 8-bit10-bit12-bit
Performance
Performance Metrics
2.25 Gbps
Max Baud Rate
225 MHz
Max Bandwidth
Supported Cable Lengths (AWG26)
| Connection | Max Length |
|---|---|
| Input | 15 meters |
| Output | 25 meters |
Power & Connectivity
Key Features
Full 3D SupportSignal RegenerationMetal Enclosure
- Power Supply
- 5V / 1A
