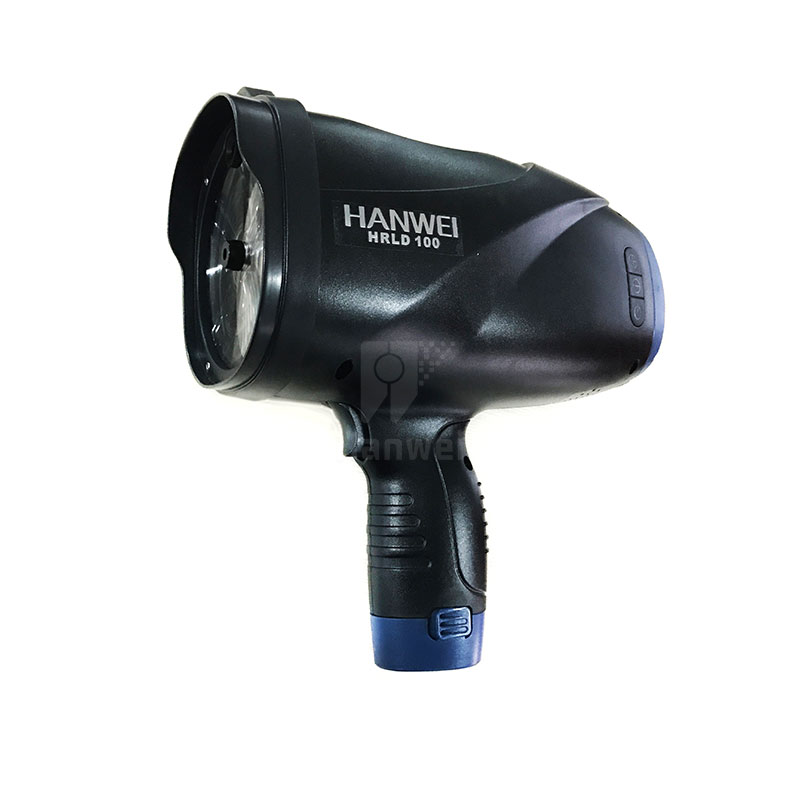

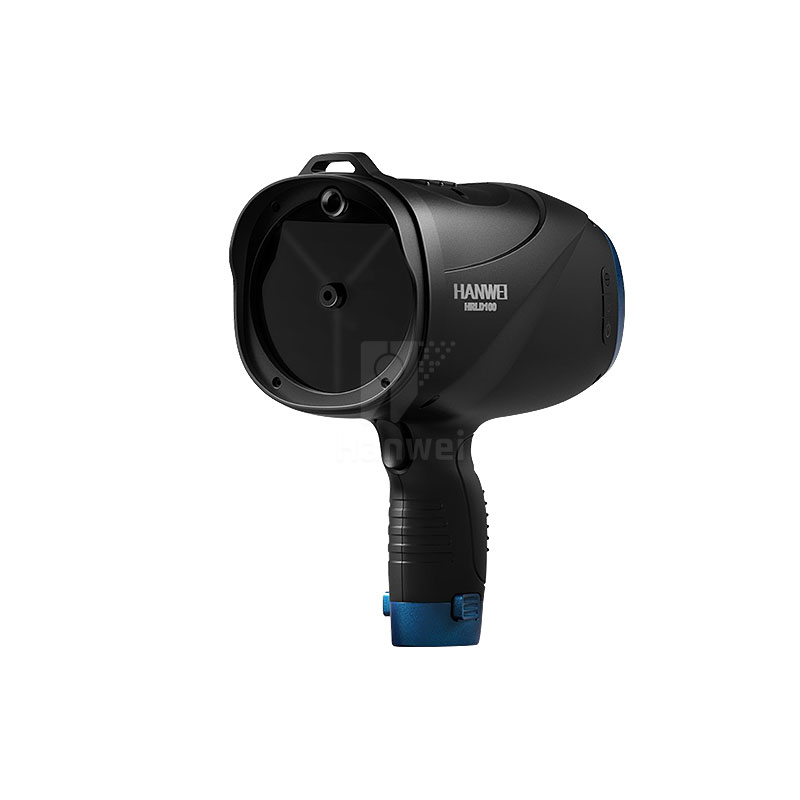

Handheld Laser Methane Leak Detector
This handheld laser methane detector enables rapid and accurate detection of methane gas leaks. It utilizes laser absorption spectroscopy for remote, non-contact detection, improving safety and efficiency in leak detection.
Technical Specifications
Overview
Advanced Methane Detection
This handheld laser methane detector utilizes advanced TDLAS technology to provide fast, remote, and highly accurate detection of methane leaks. Designed for durability and efficiency, it is an essential tool for inspecting underground pipelines, gas plants, and green belts. With its non-contact measurement capability and rapid response time, it ensures safety and reliability in critical industrial and environmental monitoring applications.
Performance Metrics
Detection Performance
50,000 ppm*m
Measuring Range
0.1 s
Response Time (T90)
Sensor Specifications
| Feature | Detail |
|---|---|
| Sensor Type | TDLAS |
| Sensor Life | 10 Years |
| Measuring Type | Laser beam |
Alarms & Alerts
Preset Alarm Levels
- Low alarm: 20% LEL
- High alarm: 50% LEL
- Alert Methods
- VisibleAudible (85dB @ 1m)VibrationLED Warning Lamp
Physical & Environmental
Device Build
| Attribute | Value |
|---|---|
| Case Material | ABS+PC |
| Ingress Protection | IP54 |
| Dimensions | 25 x 25 x 11 cm |
| Weight | 1.3 kg |
Operating Conditions
-20°C to +50°CHumidity ≤99%RH (no condensation)
Power & Accessories
Battery & Power
3.7 V
Voltage
6,600 mAh
Capacity
8 hours
Working Time
- Included Accessories
- BeltScreen cover
Compliance
Certifications & Safety
Ex ib IIB T4
