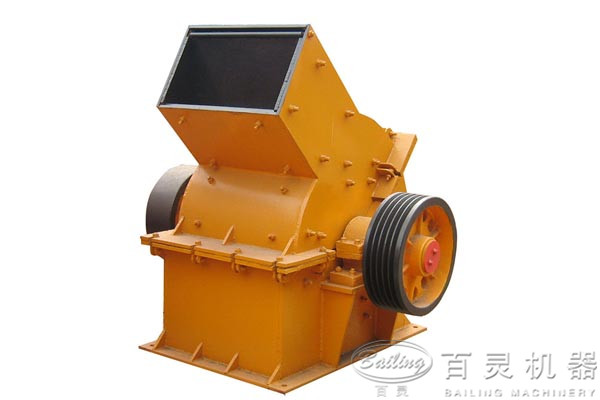

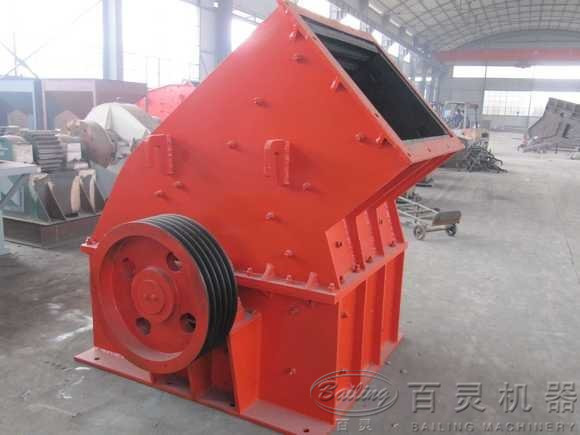

Hammer Crusher for Mining
This hammer crusher is designed for crushing medium-hard and brittle materials. It utilizes a high-speed rotor with attached hammers to impact and break down materials.
Technical Specifications
Overview
High-Efficiency Crushing Performance
This industrial hammer crusher utilizes a high-speed rotor system equipped with durable hammers to impact, cut, and grind raw materials into uniform particle sizes. Designed for reliable performance in industries such as cement, coal, and construction, it features an adjustable screening plate and rotor-to-screen gap to precisely control the final output size. The robust construction, incorporating high-chromium alloying materials, ensures superior wear resistance and operational longevity.
Key Features
Design Advantages
- Gas-shielded welded body with vibration-treated structure for enhanced toughness
- Numerical control-processed rotating parts for quality assurance
- High-toughness hammer plates with overlay treatment for anti-resistance
- High-chromium alloy hammer heads for superior tensile strength and wear resistance
- Anti-impact and wear-resistant screen and protecting boards
- Suitable Industries
- CementCoal SeparationElectricity GenerationBuilding MaterialsCompound Fertilizer
Technical Specifications
Model Specifications
| Model | Max Feed (mm) | Output Size (mm) | Capacity (t/h) | Motor (kW) | Weight (kg) |
|---|---|---|---|---|---|
| PC400x300 | 100 | 10 | 5-10 | 11 | 800 |
| PC600x400 | 120 | 15 | 10-25 | 18.5 | 1,500 |
| PC800x600 | 120 | 15 | 20-35 | 55 | 3,100 |
| PC1000x800 | 200 | 13 | 20-40 | 115 | 7,900 |
| PC1000x1000 | 200 | 15 | 30-80 | 132 | 8,650 |
| PC1300x1200 | 250 | 19 | 80-200 | 240 | 13,600 |
