H-Beam Flange Straightening Equipment
This machine is designed for correcting deformations in H-beam flanges using controlled pressure. It features a robust frame, adjustable settings, and a control panel for easy operation and monitoring.
Technical Specifications
Overview
Precision Flange Straightening

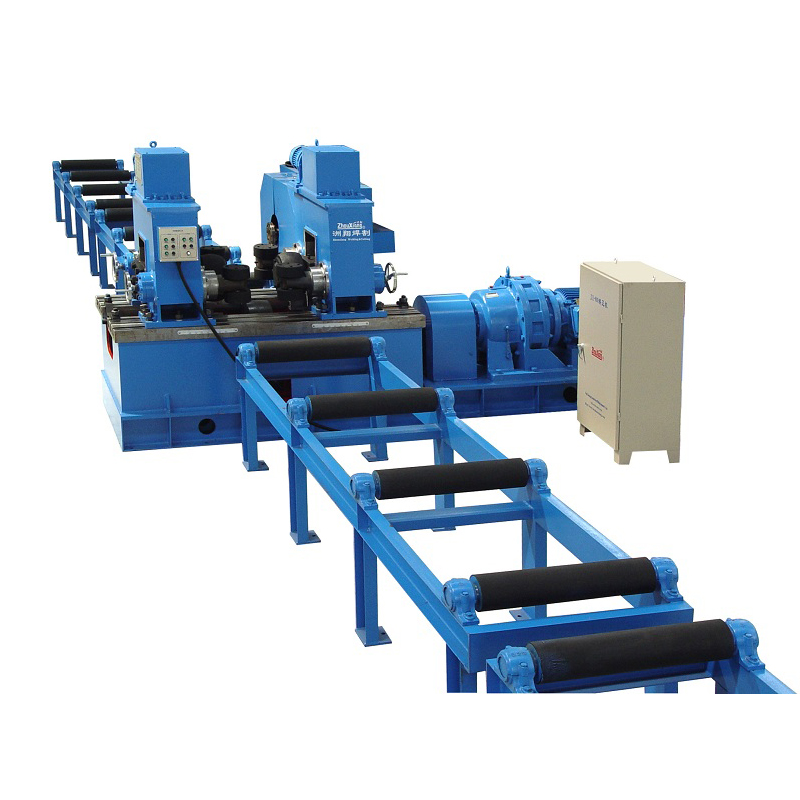

This H-Beam Flange Straightening equipment is engineered to correct deformations in H-beam flanges through a precise hydraulic roller system. By utilizing two upper straightening rollers and a bottom support roller, the machine applies controlled pressure to restore dimensional accuracy and structural integrity. It is a vital asset for steel fabrication and construction projects requiring high-quality, straight H-beam components.
Technical Specifications
Straightening Speed
18 m/min
Speed
Motor Power
22 kW
Power
Capacity
Flange Capacity
| Thickness Range | Width Range |
|---|---|
| ≤ 25 mm | 200–350 mm |
| 25–30 mm | 350–500 mm |
| 30–35 mm | 500–600 mm |
| 35–40 mm | 600–800 mm |
- Compatible Material
- Q235-A
System Components
Machine Components
- Main machine base
- Upper frame
- Upper straightening roller mechanism
- Web plate guiding device
- Upper frame moving device
- Main transmission mechanism
- Roller conveyor
- Electrical control system
