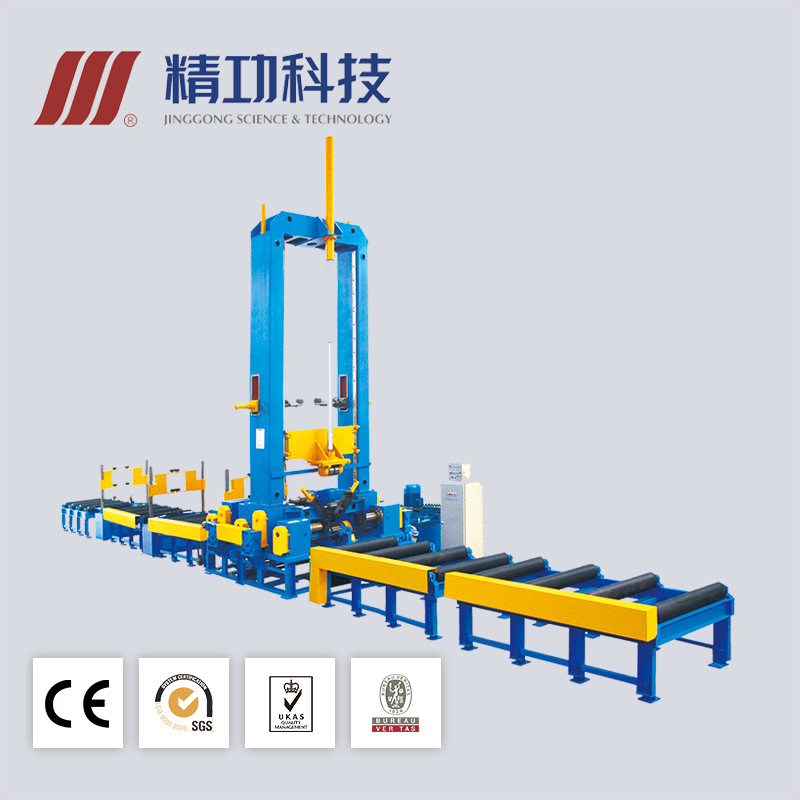

H-Beam Assembly and Flange Straightening Machine
The H-beam assembling machine aligns and joins the web and flanges of H-beams to ensure structural integrity. The flange straightening machine corrects distortions in H-beam flanges, ensuring they meet required specifications.
Technical Specifications
Overview
Precision H-Beam Fabrication
This specialized assembly and straightening machine is designed for the efficient production of structural H-beams. It combines automated web plate and flange alignment with integrated tack-welding capabilities to ensure structural integrity. Additionally, the system features a robust hydraulic straightening mechanism to correct angle distortions, ensuring high-quality, dimensionally accurate beams suitable for demanding construction and engineering projects.
Certifications
- Compliance & Certifications
- CEISO 9001-2000SGSUKAS
Technical Features
Core Components
- Alignment system
- Conveyor rolls
- Hydraulic system
- Electrical control system
- Upper pinch rollers (two or four groups)
- Straightening Method
- Hydraulic
Operational Capabilities
Primary Functions
Web & Flange AlignmentAutomatic Tack-WeldingAngle Distortion Correction
Customization
- Manufacturing Flexibility
- Yes
