Gutter and Downpipe Roll Forming Machine
This machine is designed for manufacturing aluminum gutters, downpipes, and steel profiles. It utilizes a rolling mill process to form the metal into the desired shape.
Technical Specifications
Overview
Automatic Gutter & Downpipe Production

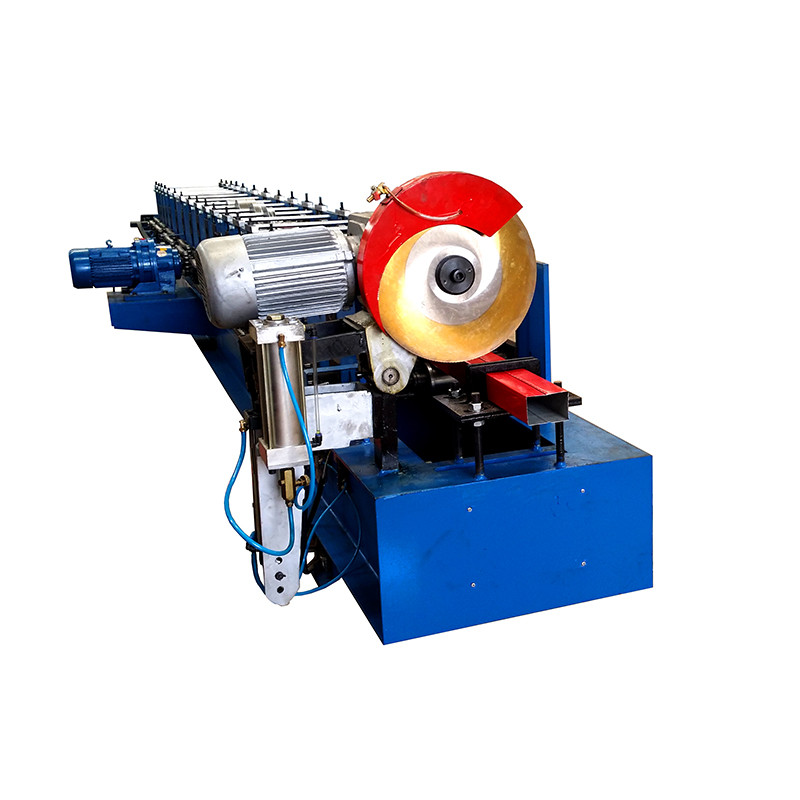

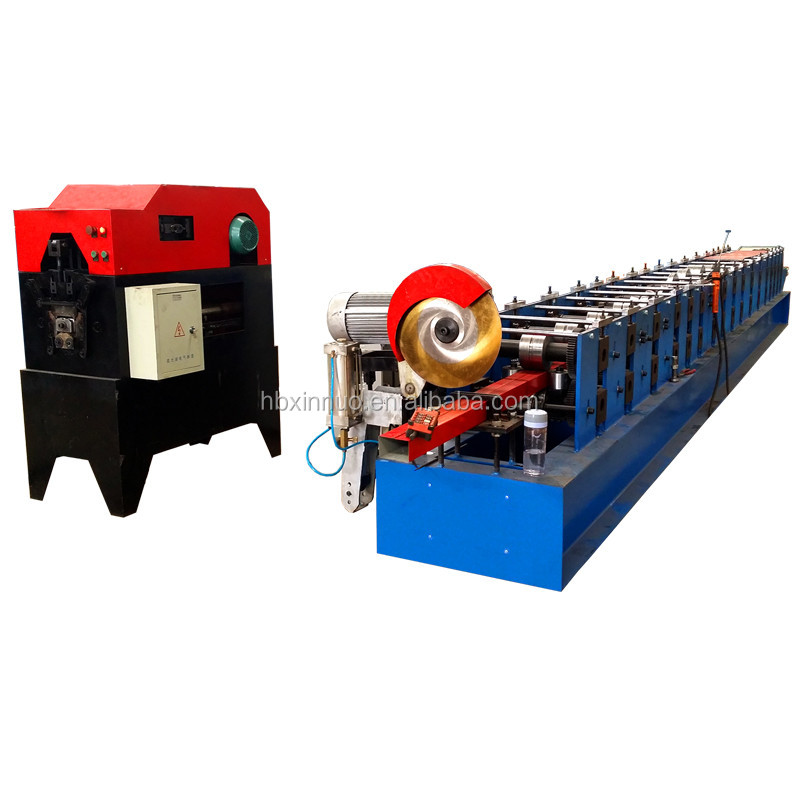

This high-precision roll forming machine is engineered for the continuous production of round steel and aluminum gutters and downpipes. It features a robust design with 12 rows of forged steel rollers and an integrated flying saw cutting system for precise dimension control. Designed for high-volume industrial applications, it offers both automatic and manual operation modes to ensure efficiency and versatility in metal fabrication.
Technical Performance
Working Speed
15 m/min
Max Speed
- Feeding Material Thickness
- 1 mm

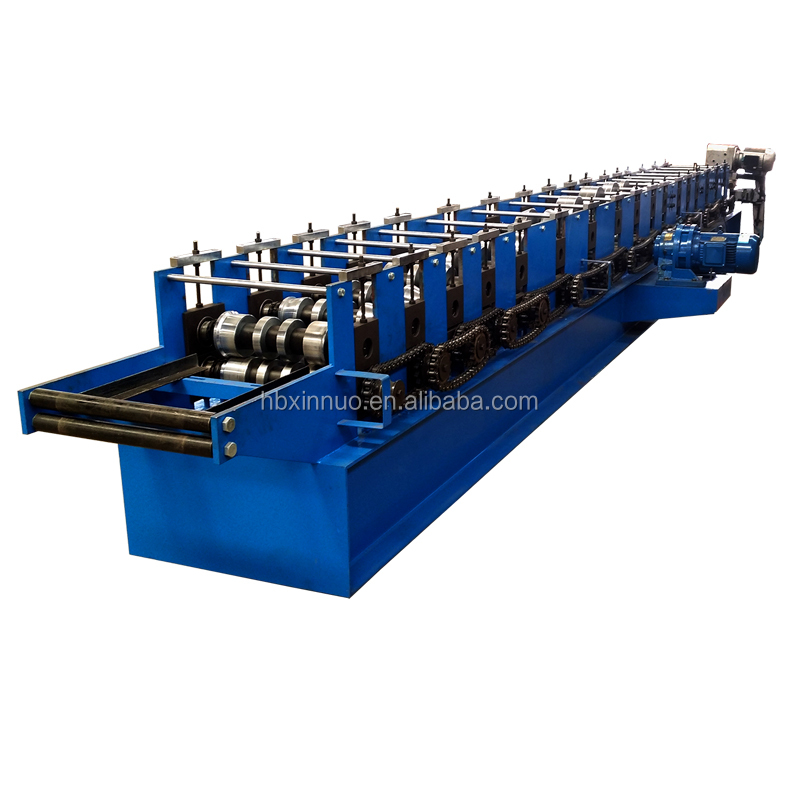

- Roller Stations
- 12
- Roller Material
- High grade No.45 forged steel
Control System
Operation Modes
- Automatic Mode
- Manual Mode
- Control System
- PLC Computer Control with Hydraulic Drive
- System Languages
- EnglishChineseSpanishRussian
Hydraulic & Power
- Main Motor Power
- 5.5 kW
- Hydraulic System Power
- 4 kW
- Working Pressure
- 12-16 Mpa (Adjustable)
Uncoiler Specifications
Coil Compatibility
| Parameter | Value |
|---|---|
| Steel Coil Width | 1300mm |
| Inner Diameter | 500-508mm |
| Max Outer Diameter | 1250mm |
- Loading Capacity
- 5 T

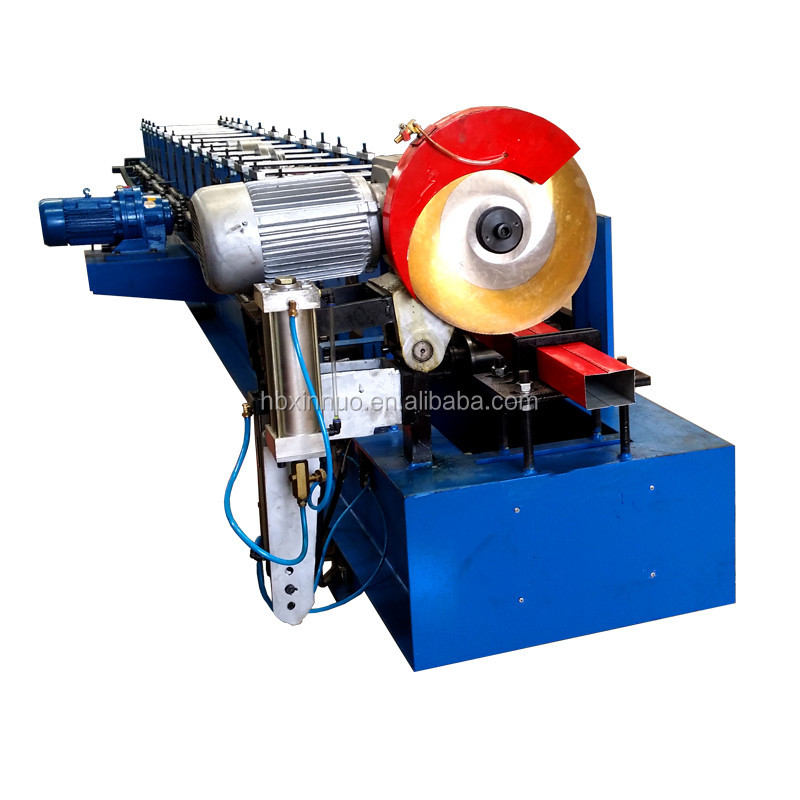

Cutting System
- Cutting Type
- Flying Saws Cutting
- Blade Material
- Cr12Mov with quenched treatment
Logistics
Packaging Method
- Main machine: Nude in container
- Computer control box: Wooden frame/packaging
- Delivery Detail
- 20 days
