Overview

Professional Patrol Management System

This advanced guard tour patrol management system is designed for robust security monitoring and personnel accountability. Featuring integrated RFID reading, walkie-talkie functionality, and real-time data transmission via Wi-Fi and USB, it ensures efficient and reliable patrol operations. The device is built for harsh environments with IP67-rated protection, offering long-lasting performance with a high-capacity battery and fast-charging capabilities.

Technical Specifications

Physical Dimensions & Weight

125 mm

Length

62 mm

Width

27 mm

Thickness

205 g

Weight

Performance Metrics

Feature	Specification
IP Rating	IP67
RFID Frequency	125 KHz
Reading Speed	10,000 pieces/min
Reading Distance	> 3 cm
Data Storage	60,000 pieces
Operating Temperature	-40°C to +85°C

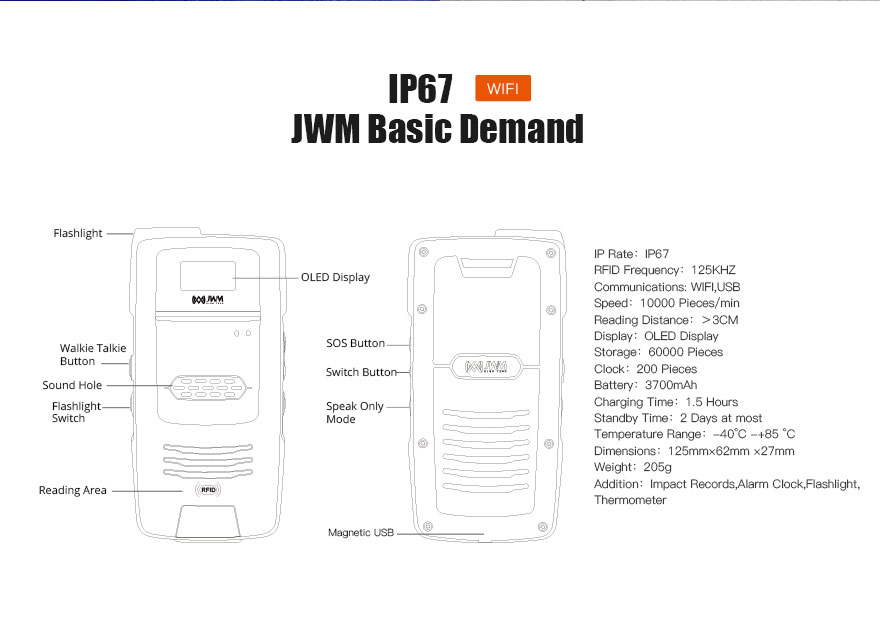

Detailed view of the guard tour device with labeled components — The device features a ruggedized design with an OLED display, SOS button, and magnetic USB port for reliable operation.

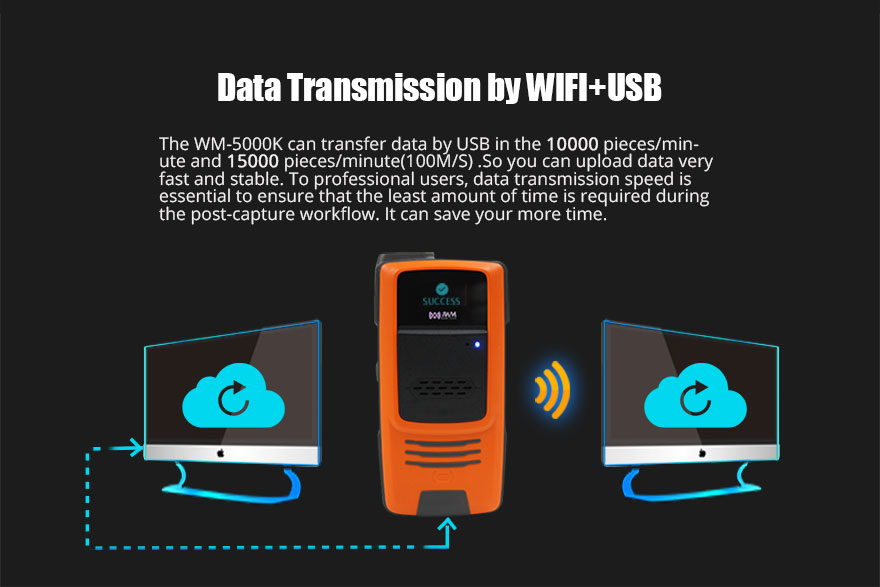

Data transmission diagram — Supports high-speed data transfer via Wi-Fi and USB to streamline post-capture workflow.

Power & Battery

Battery Performance

3,700 mAh

Capacity

1.5 hours

Charging Time

2 days

Standby Time

Battery charging and performance graphic — High-capacity battery with fast charging ensures the device is ready for long shifts.

Features

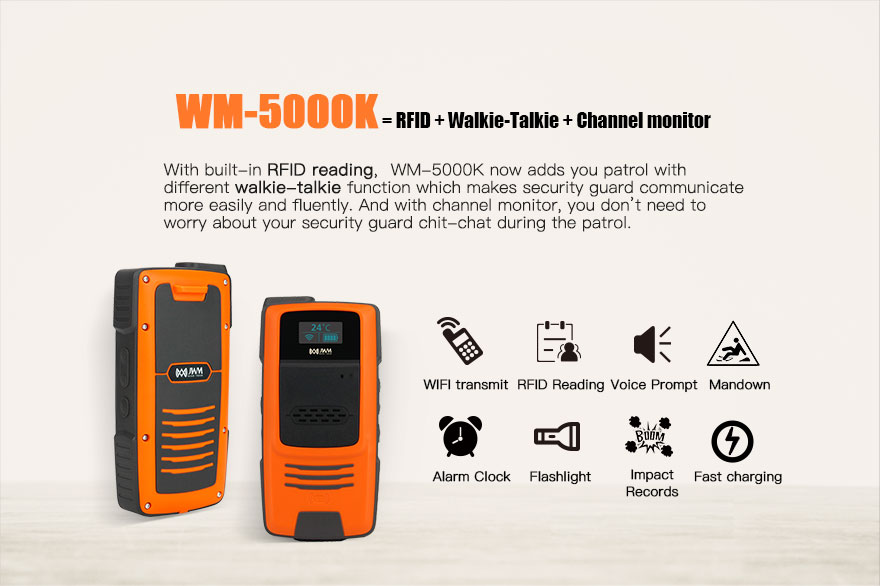

Key Functionalities: Wi-Fi ConnectivityUSB Data TransmissionWalkie-Talkie FunctionVoice PromptsMan-Down AlertFlashlightThermometerImpact RecordsAlarm Clock
