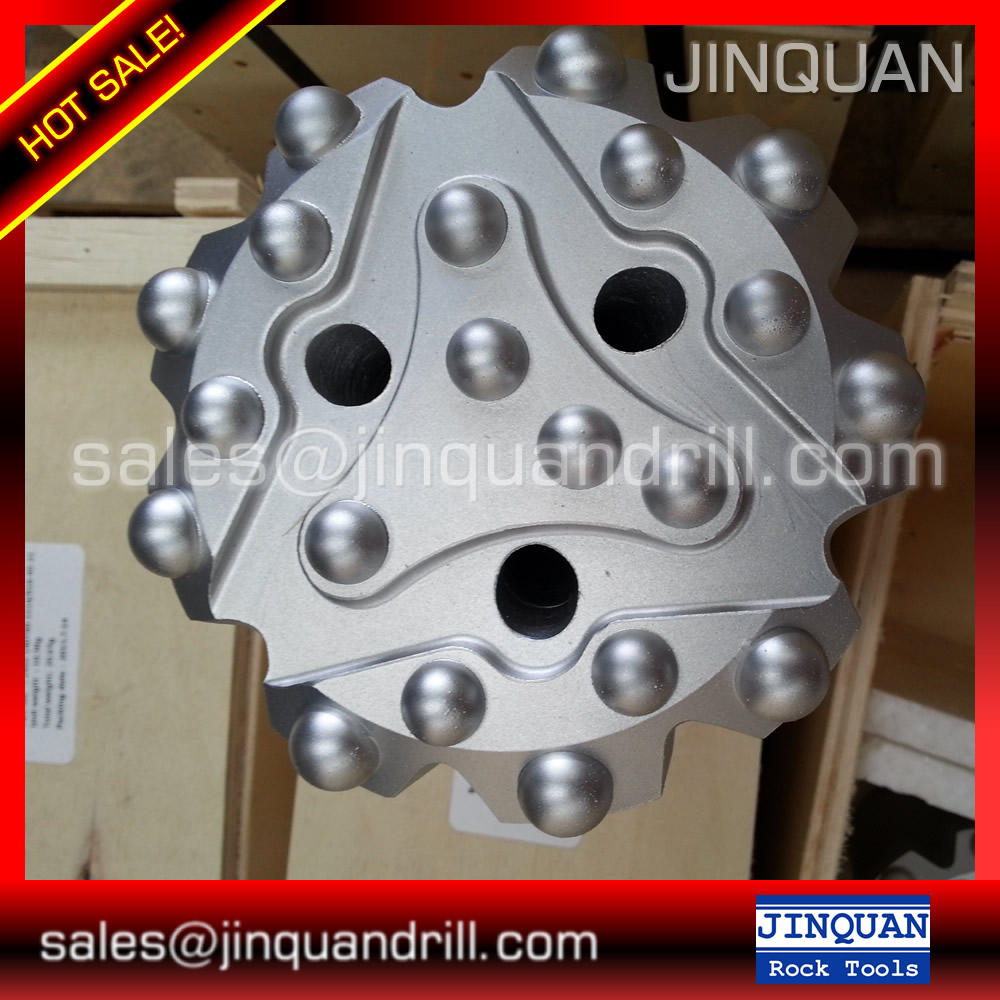

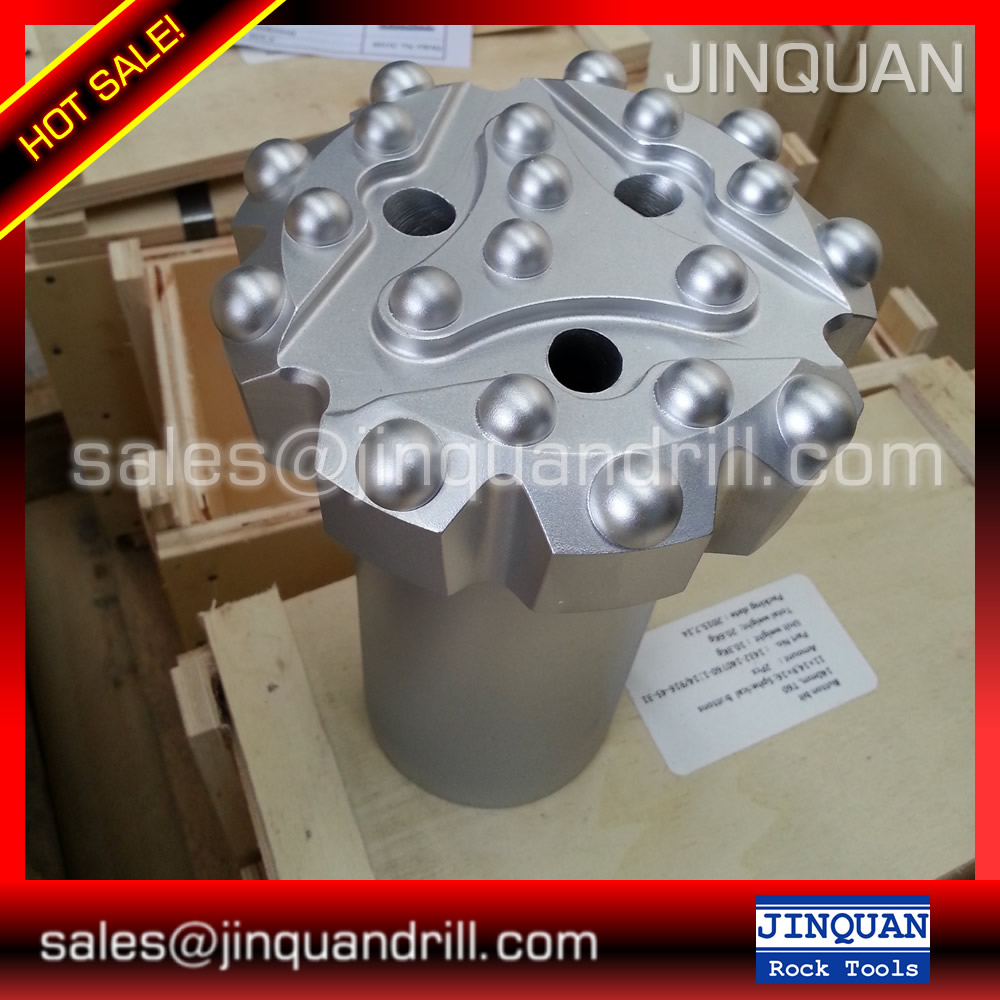

GT60 Tungsten Carbide Button Bit
Tungsten carbide button bits are designed for high-performance rock drilling in mining and construction. The GT60 connection ensures compatibility with standard drilling rigs and provides efficient drilling performance.
Technical Specifications
Product Overview
High-Performance Drilling Solutions
These GT60 thread button bits are engineered for benching and production drilling, offering superior compatibility with various rock formations and site conditions. Designed for durability and efficiency, they feature advanced tungsten carbide tips that provide longer service life and higher penetration rates. The robust construction ensures optimal energy transfer, helping to reduce downtime and improve overall productivity in demanding mining and construction environments.
Technical Specifications
Body Configuration
Normal BodyRetrac Body
- Material Composition
- 45CrNiMoV Alloy SteelYK05 Tungsten Carbide
- Diameter Range
- 127 mm
- Button Shapes
- SphericalBallistic
- Face Shape
- FlatDrop-center
Available Thread Types
Supported Threads
- R22
- R25
- R28
- R32
- R38
- T38
- T45
- T51
- ST58
- ST68
- GT60
Size Availability Table
| Thread Type | Available Diameters (mm) |
|---|---|
| R22 | 32, 36, 38, 41 |
| R25 | 33, 35, 37, 38, 41, 43, 45 |
| R28 | 37, 38, 41, 43, 45, 48 |
| R32 | 41, 43, 45, 48, 51, 54, 57, 64, 76 |
| T38 | 64, 70, 76, 89, 102, 127 |
| T45 | 76, 89, 102 |
| T51 | 89, 102, 115, 127 |
| T60 | 92, 96, 102, 115, 118, 127, 140, 152 |
