Technical Specifications
Overview
Sustainable Climate Control
This ground source heat pump leverages the earth's constant year-round temperature to provide highly efficient heating and cooling for both residential and commercial buildings. Designed as a next-generation energy-saving solution, it offers significant operational cost reductions compared to conventional systems. The unit features a modular design for easy maintenance and independent billing, making it an ideal choice for schools, hospitals, and apartment complexes.
Performance Metrics
Key Performance Indicators
7 kW
Heating Capacity
3.5 kW
Cooling Capacity
5.5 COP
Max Energy Efficiency
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Rated Voltage | 220V |
| Rated Frequency | 50Hz |
| Rated Current | 6A |
| Rated Power | 1.7kW |
Water System Data
| Parameter | Value |
|---|---|
| Outlet Water Rated Temp | 55°C |
| Outlet Water Max Temp | 60°C |
| Water Flow | 2000 L/H |
| Pipe Size (Hot/Cold) | DN25 mm |
Physical Characteristics
Dimensions and Weight
- Dimensions: 706 x 706 x 650 mm
- Weight: 75 kg
- Safety and Protection
- IPX4 Defend GradeElectric Shock Grade 1Noise < 50dB

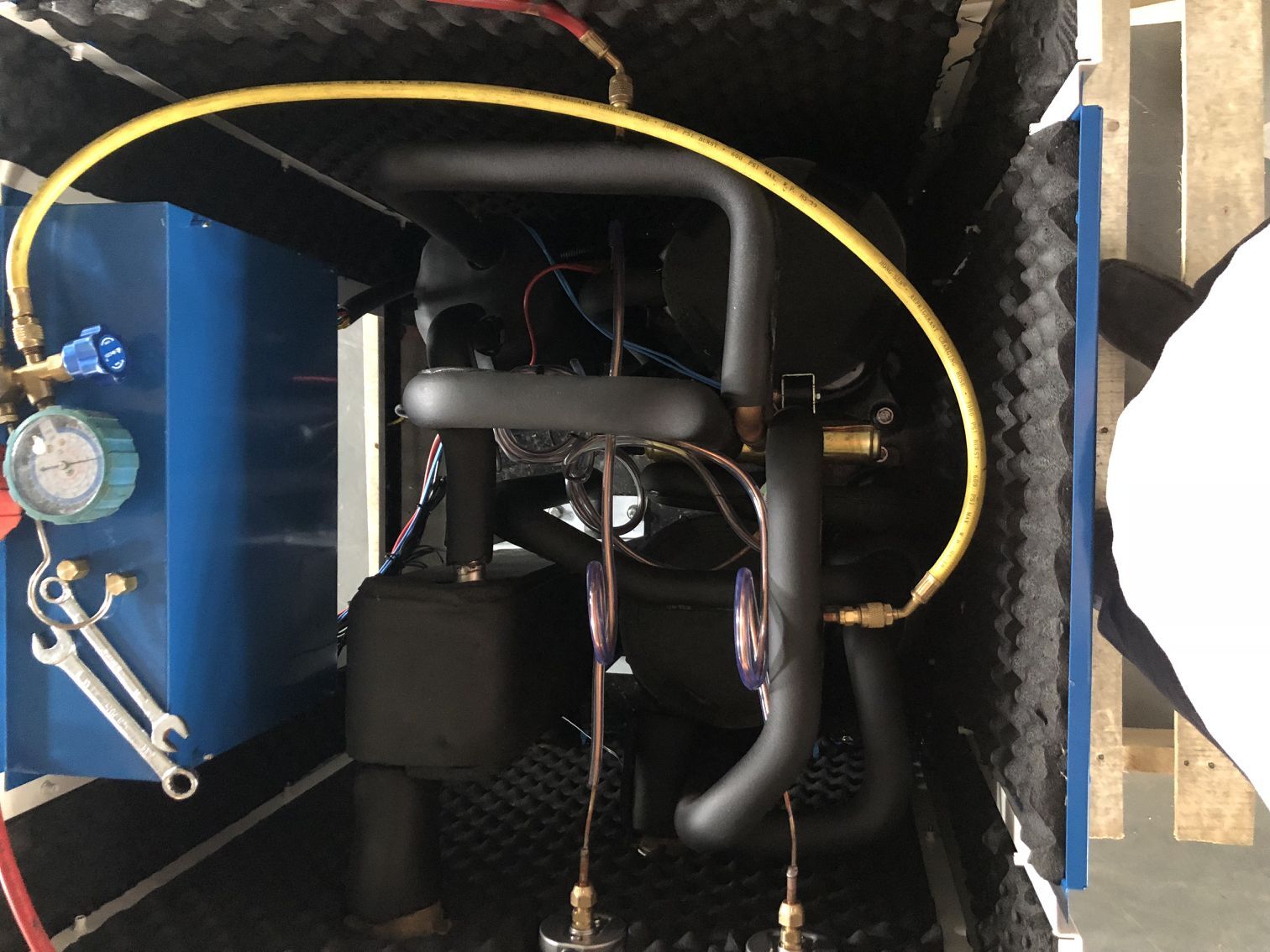

System Components
Main Collocation
- Evaporator
- Condenser
- Compressor
- Electric control system
