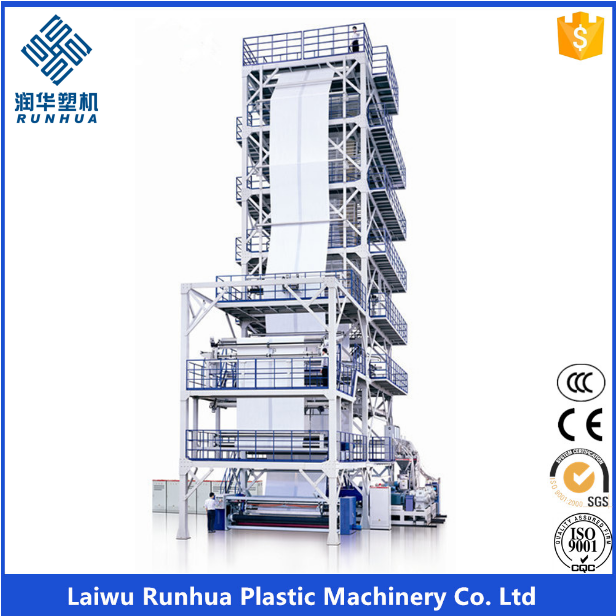

Greenhouse Film Blowing Machine
This machine produces film with a width range of 3 to 24 meters and a thickness of 0.05 to 0.2mm. It utilizes a 1-5 layer co-extrusion process and can process PE, LDPE, LLDPE, MPE, and EVA materials.
Technical Specifications
Overview
High-Performance Greenhouse Film Production
This advanced film blowing line is engineered for the efficient production of high-quality agricultural greenhouse films. Capable of handling 1-5 layer co-extrusion, the system supports a wide range of materials including PE, LDPE, LLDPE, mPE, and EVA. Designed for durability and precision, it features robust cooling and traction systems to ensure uniform film thickness, enhanced mechanical strength, and superior resistance to severe weather conditions.
Technical Specifications
Film Production Capabilities
24 m
Max Unfolding Width
0.2 mm
Max Thickness
5 layer
Max Layers
Film Functional Properties
Anti-UVAnti-foggingAnti-dripping
- Compatible Materials
- PELDPELLDPEmPEEVAMaster BatchRecycled Materials
Machine Components
Included Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (with cooling fan)
- Herringbone, plugboard, and sizing cage
- First and Second traction devices
- Rewinder device
- IBC inner cooling system
Model Comparison
Model Specifications
| Model | Max Width (mm) | Die Diameter (mm) |
|---|---|---|
| 3FM3200 | 6,000 | 1,000 |
| 3FM2800 | 8,000 | 1,100 |
| 3FM3000 | 10,000 | 1,450 |
| 3FM3500 | 12,000 | 1,600 |
| 3FM4500 | 14,000 | 1,900 |
| 3FM5000 | 16,000 | 2,300 |
