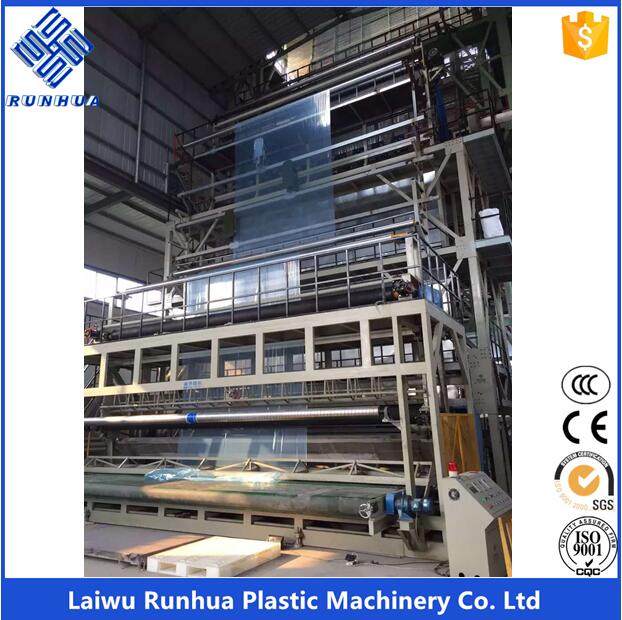

Greenhouse Film Blowing Machine
This machine produces greenhouse film with a width range of 3-24 meters and a thickness of 0.05-0.2mm. It processes PE, LDPE, LLDPE, MPE, EVA, master batch, or recycled materials for films with anti-UV, anti-fogging, and anti-dripping properties.
Technical Specifications
Overview
High-Performance Greenhouse Film Production
This advanced co-extrusion film blowing line is engineered for the high-volume production of agricultural greenhouse films. Capable of processing a wide range of materials including PE, LDPE, LLDPE, mPE, and EVA, it delivers films with critical agricultural functions such as anti-UV, anti-fogging, and anti-dripping properties. The system features a robust, multi-stage configuration designed to ensure superior longitudinal and transverse strength, making the final product highly adaptable to severe weather conditions.
Technical Specifications
- Unfolding Width Range
- 3 - 24 meters
- Film Thickness
- 0.05 - 0.2 mm
- Co-extrusion Layers
- 3 layers
- Compatible Materials
- PELDPELLDPEmPEEVAMaster batchRecycled materials
Performance Metrics
Traction & Winding Speed
Machine Configuration
Included Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (with cooling fan)
- Herringbone, plugboard and sizing cage
- First and Second traction devices
- Rewinder device
- IBC inner cooling of film bubble
Model Comparison
Model Specifications
| Model | Max Width (mm) | Die Diameter (mm) |
|---|---|---|
| 3FM3200 | 6,000 | 1,000 |
| 3FM2800 | 8,000 | 1,100 |
| 3FM3000 | 10,000 | 1,450 |
| 3FM3500 | 12,000 | 1,600 |
| 3FM4500 | 14,000 | 1,900 |
| 3FM5000 | 16,000 | 2,300 |
