Technical Specifications

Overview

High-Efficiency Heavy Hammer Crusher

The PCZ Heavy Hammer Crusher is an advanced, high-efficiency solution designed for primary and secondary crushing applications. Featuring a unique grate-free design, it effectively eliminates clogging issues, even when processing wet materials or soil-heavy debris. Built with durable alloy hammers, this machine significantly reduces wear part consumption by approximately 35%, offering a cost-effective alternative for high-volume stone and mineral processing.

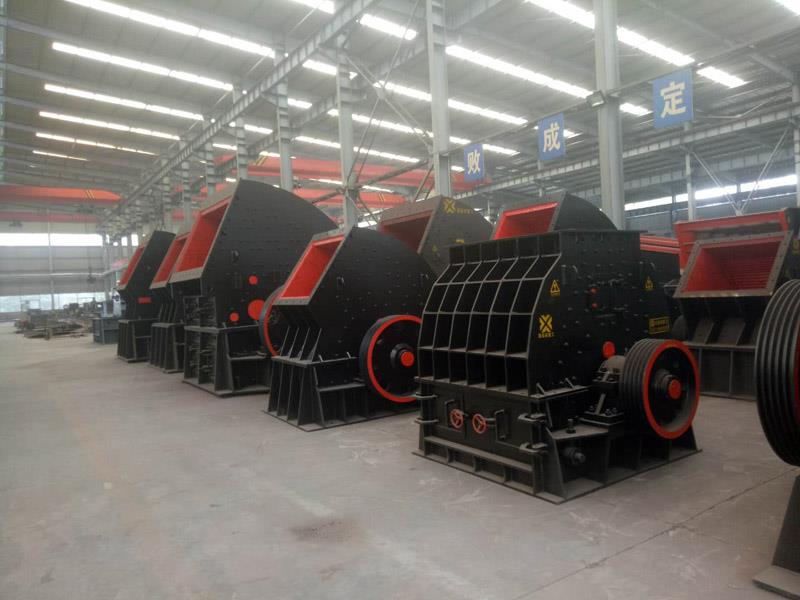

Heavy Hammer Crusher unit showing robust construction — The heavy-duty hammer crusher engineered for primary and secondary crushing.

Technical Specifications

Model: PCZ1308
Motor Power: 132 kw
Weight: 15.6 t

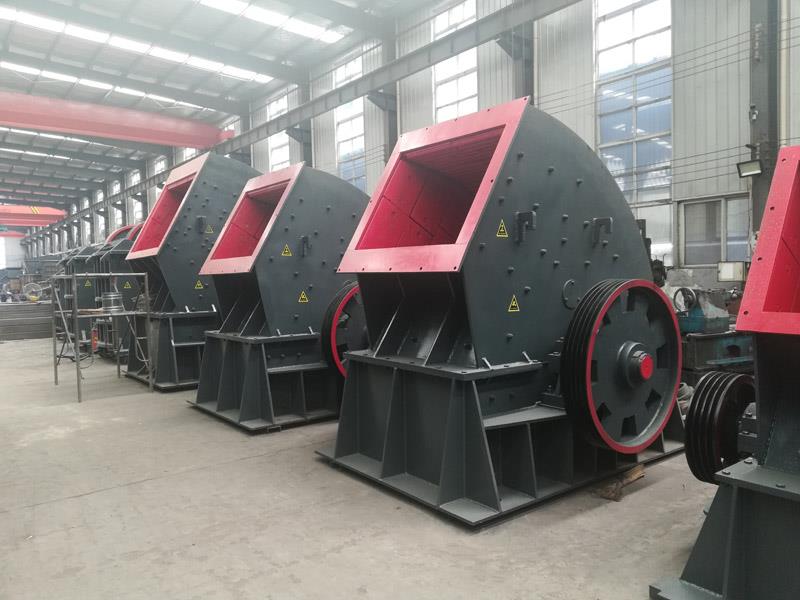

Close up of heavy hammer crusher rotor and internal components — High-strength rotor and hammer assembly designed for high-impact force.

Performance Metrics

Capacity

100 m3/h

Min Capacity

160 m3/h

Max Capacity

Max Feed Size: 600 mm
Max Outlet Size: 30 mm

Dimensions

Rotor Diameter: 1310*790mm
Inlet Size: 850*800mm
Overall Dimensions: 2818*2100*2390mm

Features

Key Advantages: Grate-free designAnti-cloggingAlloy hammersReduced wear consumptionOne-time crushing

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

Grate-Free Heavy Hammer Crusher

This machine features a grate-free design, which eliminates clogging issues when processing wet materials or those with high soil content. Alloy hammers are utilized to decrease the consumption of wear parts, thereby reducing production costs by approximately 35%.

Request a Quote Download PDFPDF
