Grain Thresher for Rice, Wheat, and Soybeans
This grain thresher is designed for threshing wheat, rice, and soybeans. It separates grain, straw, chaff, and remaining material in a single feeding.
Technical Specifications
Overview

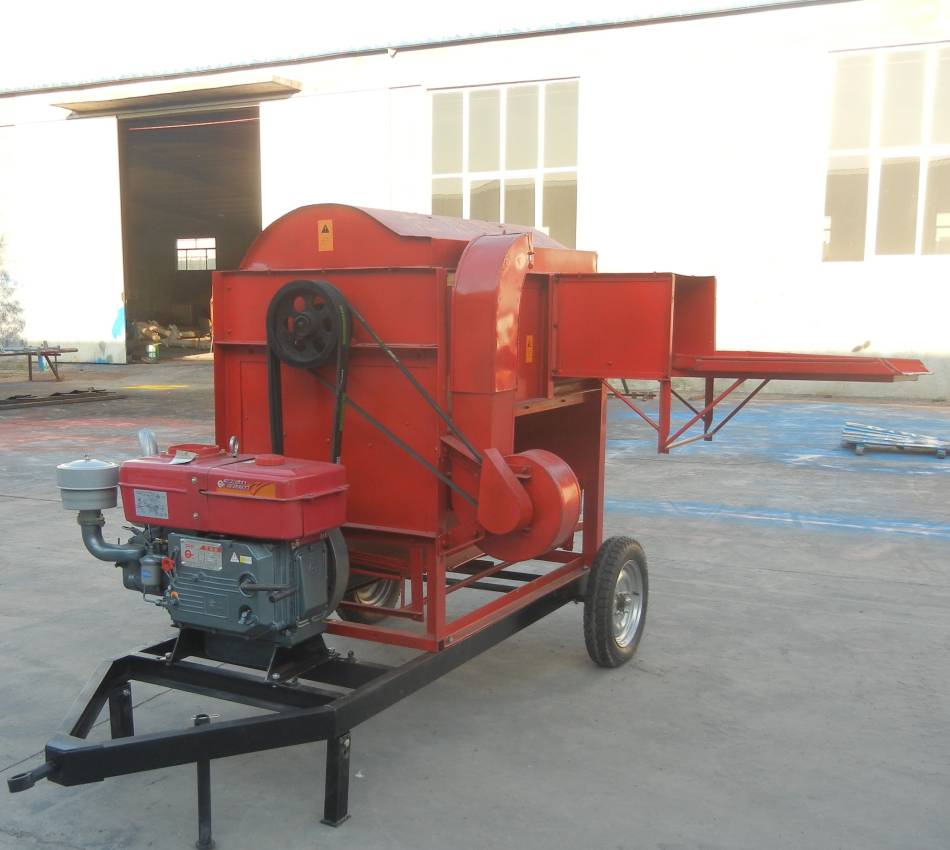

5TD Series Grain Thresher
The 5TD series is a versatile, full-feed agricultural thresher designed for the efficient processing of rice, wheat, and soybeans. This machine streamlines post-harvest operations by performing simultaneous threshing and separation of kernels, straw, chaff, and bran in a single pass. Built with a focus on durability and ease of maintenance, it is an essential solution for small to medium-sized farms looking to reduce manual labor and improve crop yield.
Performance Metrics
Model Specifications
| Model | Weight (kg) | Efficiency (kg/h) | Roller Speed (r/min) |
|---|---|---|---|
| 5TD-125 | 450 | 1400-1600 | 1,000 |
| 5TD-100 | 420 | 1000-1200 | 1,060 |
| 5TD-70 | 260 | 800-900 | 1,200 |
| 5TD-50 | 150 | 300-400 | 1,400 |
Quality Standards
1.5 %
Wheat Loss Rate
3 %
Rice Loss Rate
1.5 %
Breakage Rate
2 %
Impurity Rate
Technical Details
Fan Rotating Speed
- 5TD-125: 2500 r/min
- 5TD-70: 2400 r/min
- 5TD-50: 2500 r/min
- Productivity
- 130 Kg/hp
Features
Key Benefits
Full Feed TypeSimple StructureEasy MaintenanceSafe and Reliable
- Compatible Crops
- RiceWheatSoybeans
