Technical Specifications
Product Overview

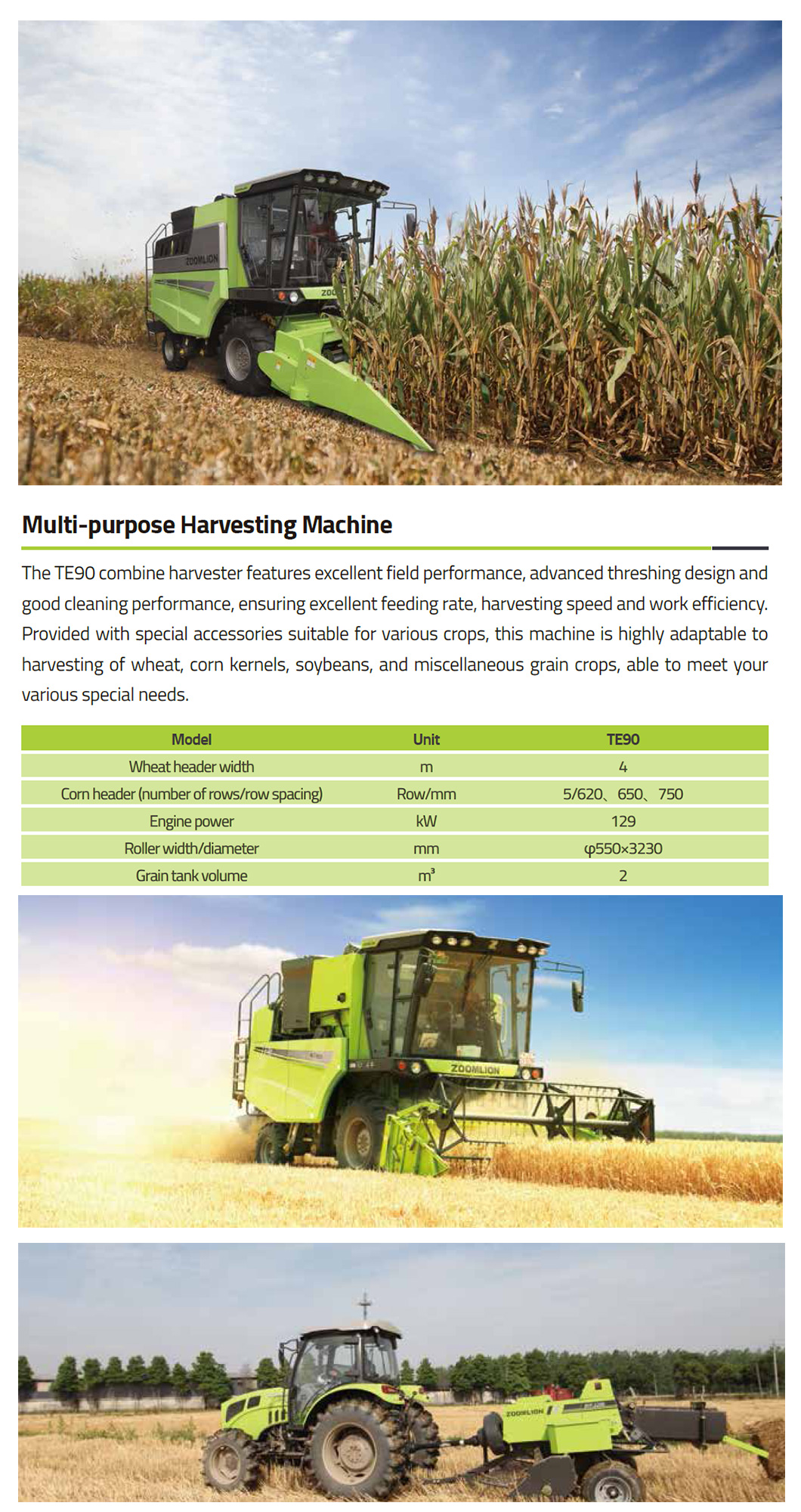

High-Performance Multi-Purpose Harvesting
This advanced combine harvester is engineered for superior field performance, rapid harvesting, and high work efficiency across diverse crop types including wheat, corn, and soybeans. It features a robust longitudinal axial flow threshing system and a highly adaptable design that minimizes grain loss while delivering high-quality output. Built for demanding modern farming operations, the machine incorporates intelligent control systems, a comfortable ergonomic cabin, and a high-capacity grain tank to maximize productivity and reduce downtime.
Key Performance Metrics
Operational Efficiency
175 HP
Engine Power

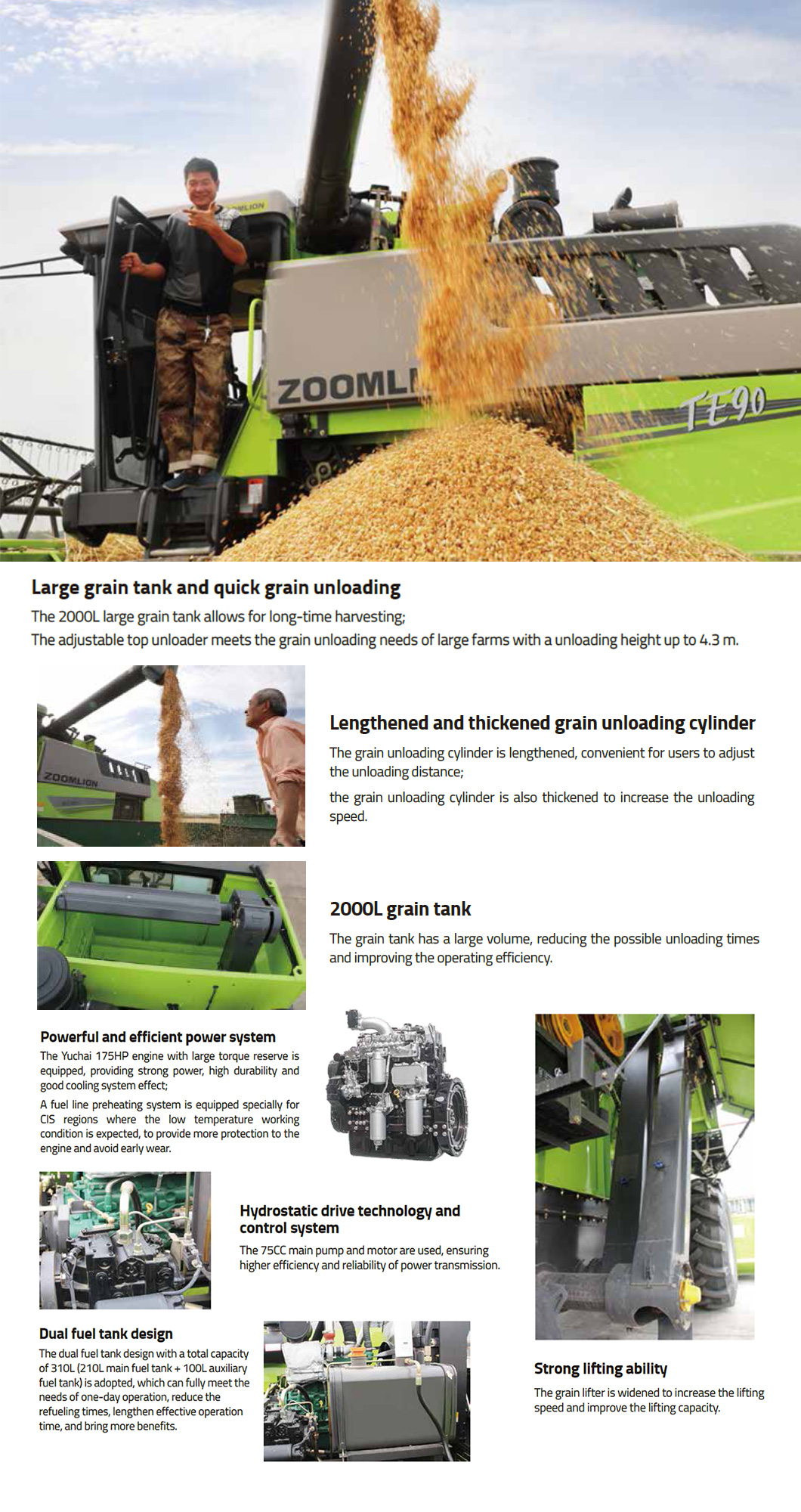

2,000 L
Grain Tank Capacity
4.3 m
Max Unloading Height
1.5 hm²/h
Max Productivity
Technical Specifications

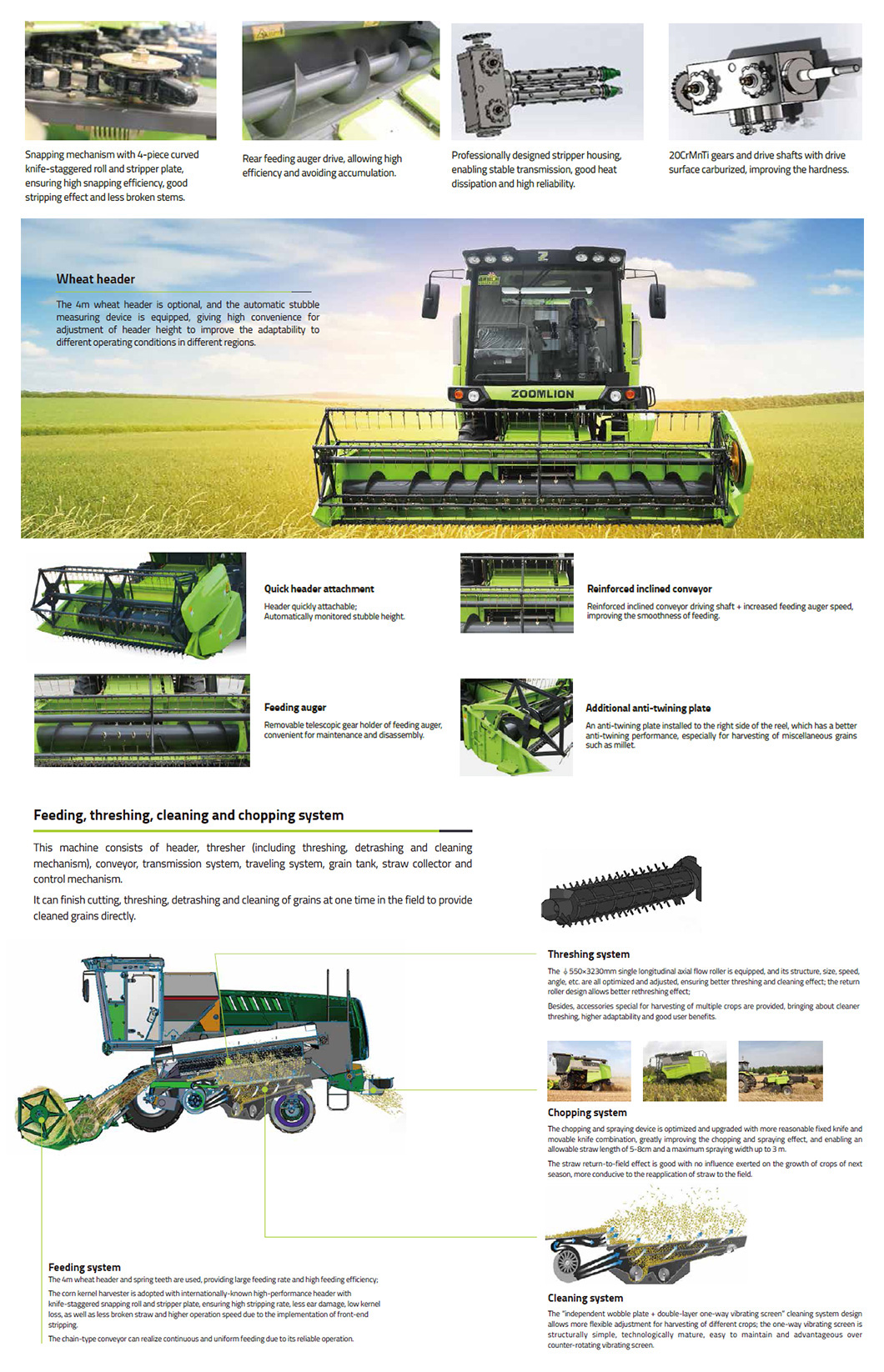

Threshing System Details
- Type: Single longitudinal axial flow
- Roller Dimensions: 550x3230 mm
- Concave Screen: Grille type
- Cleaning Screen: Air-and-screen type
- Return roller design for re-threshing
Engine and Power
| Parameter | Value |
|---|---|
| Rated Power | 129 kW |
| Rated Speed | 2200 r/min |
| Fuel Tank Capacity | 300 L |
| Drive System | Hydrostatic |
Operating Features
Intelligent Technology
IoT TerminalOperation MonitoringIntelligent DiagnosisVehicle Positioning

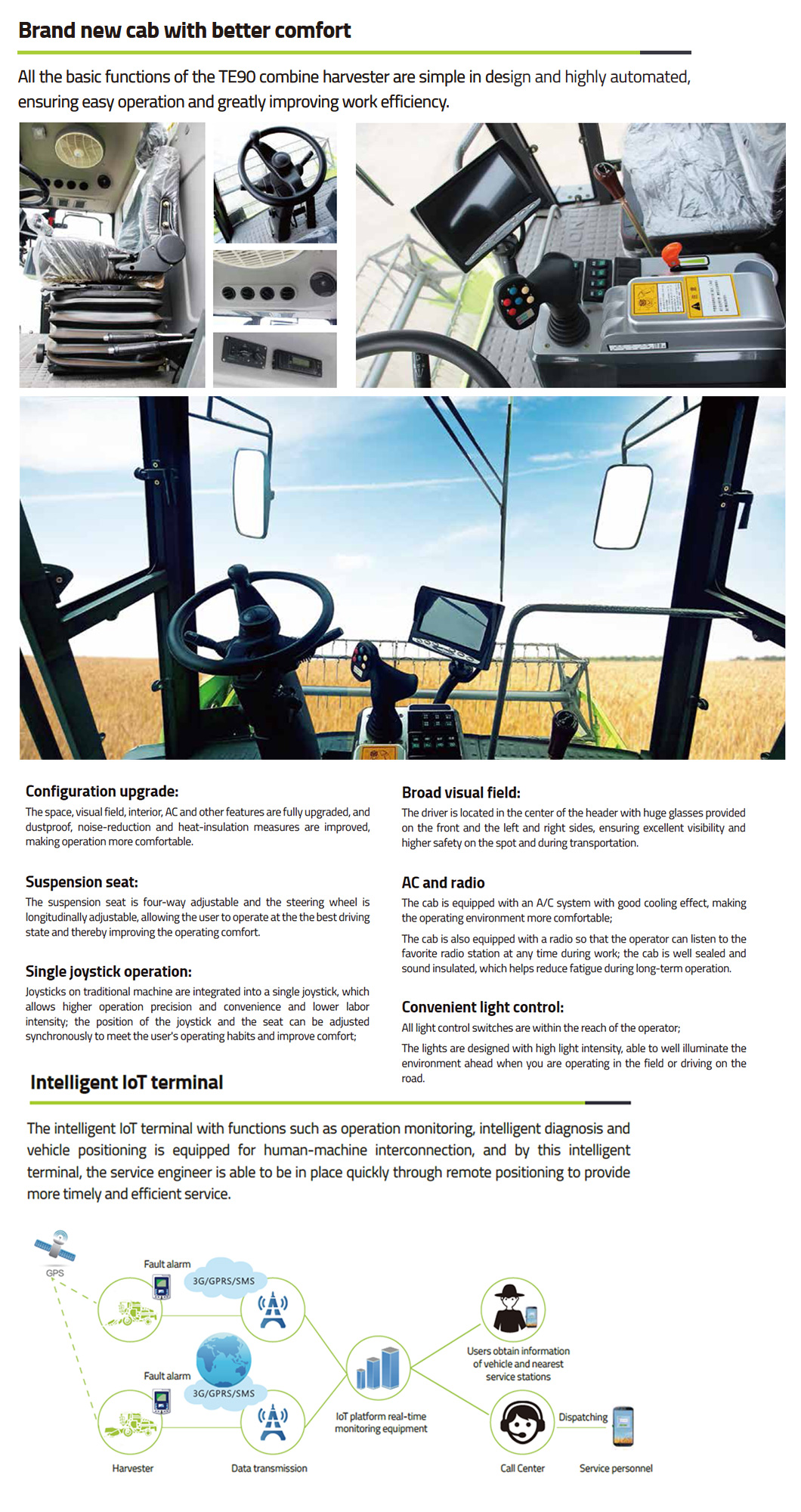

- Cabin & Comfort
- Air-conditionedSuspension seatMultifunction joystickSound insulatedLarge field of view
