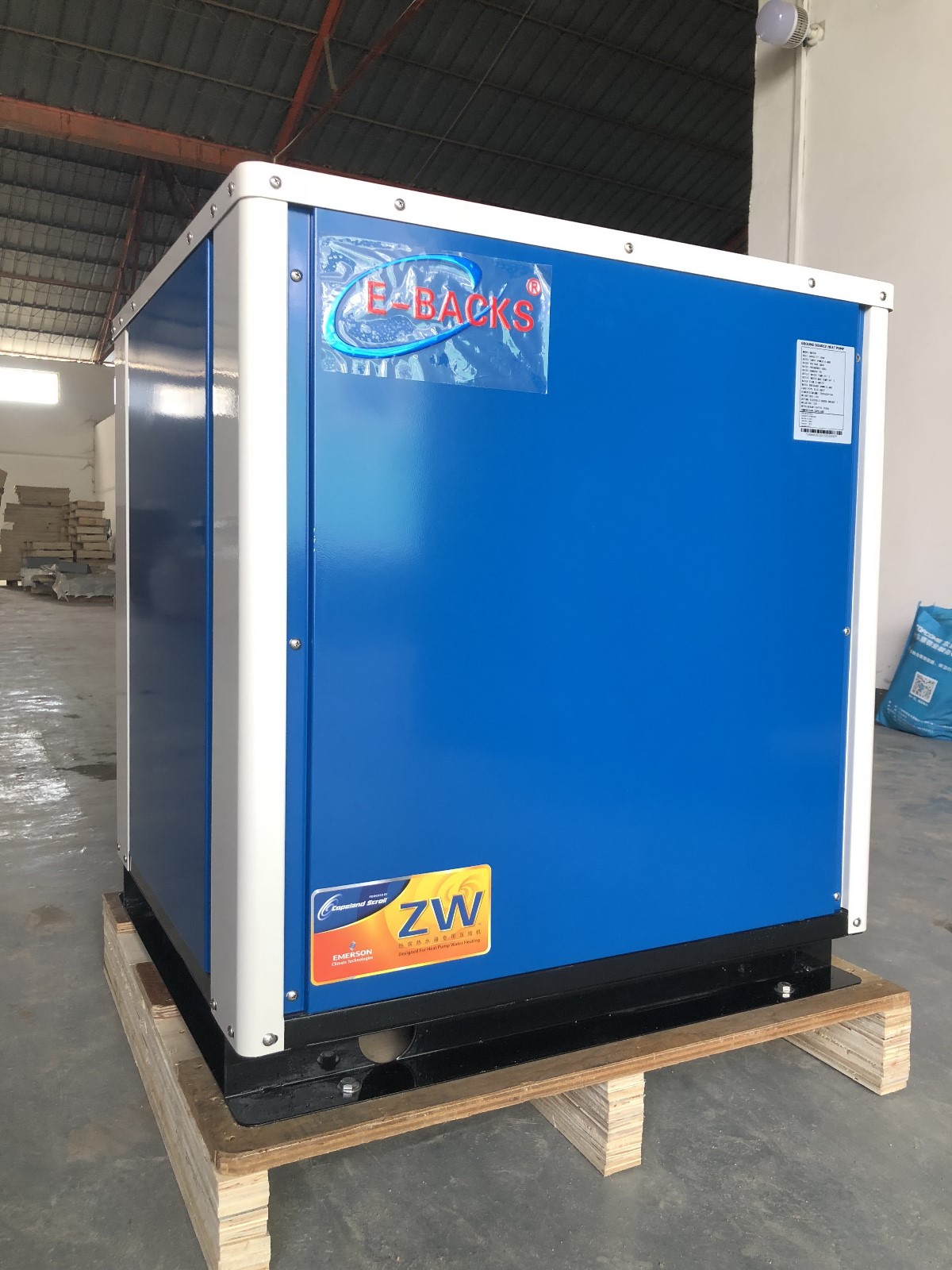

Geothermal Water Source Heat Pump
This anti-freeze water source heat pump has a rated heating capacity of 19kW and a rated cooling capacity of 14kW. It is designed to maintain a maximum outlet water temperature of 60℃.
Technical Specifications
Overview
Sustainable Thermal Management
This geothermal water source heat pump offers a high-efficiency solution for year-round heating and cooling by utilizing the constant temperature of groundwater. Designed for versatility, the unit is suitable for commercial buildings, public facilities, residential apartments, schools, and hospitals. It features a modular design for independent billing and easy maintenance, ensuring long-term reliability and significant energy savings.
Performance Metrics
Performance Highlights
19.5 kW
Heating Capacity
18.5 kW
Cooling Capacity
3.5
COP
5.5 kW
Input Power
Technical Specifications
System Specifications
| Parameter | Value |
|---|---|
| Model | HPS-060 |
| Power Supply | 380V/3PH/50HZ |
| Refrigerant | R410A (2.5kg) |
| Max Outlet Water Temp | 60°C |
| Water Flow | 3.2 m³/h |
| Water Connection | DN25 |
| Noise Level | 58 dB(A) |
| Dimensions | 1200 x 600 x 1400 mm |
| Net Weight | 220 kg |
Features
System Benefits
- High energy efficiency (4.4-5.5 range)
- Modular design for individual unit billing
- Low-noise operation with double shock absorber design
- Advanced micro-computer control interface
- Easy maintenance access
- Compact structure for space-saving installation
- Suitable Environments
- Commercial BuildingsPublic BuildingsResidential ApartmentsSchoolsHospitals
