Geomembrane Pond Liner Extrusion Machine
This machine is designed for producing geomembrane pond liners from HDPE, EVA and LDPE. It creates films with a wide range from 1 to 9 meters and a thickness of 0.2 to 2.2mm.
Technical Specifications
Overview
Industrial Geomembrane Extrusion Line

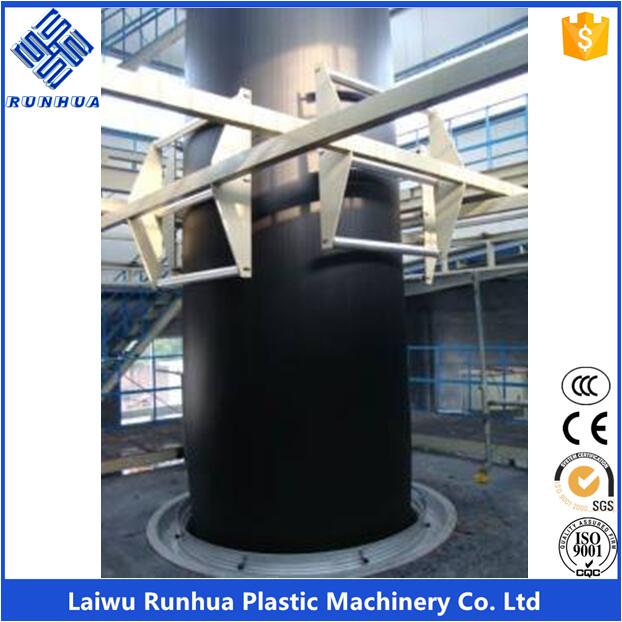

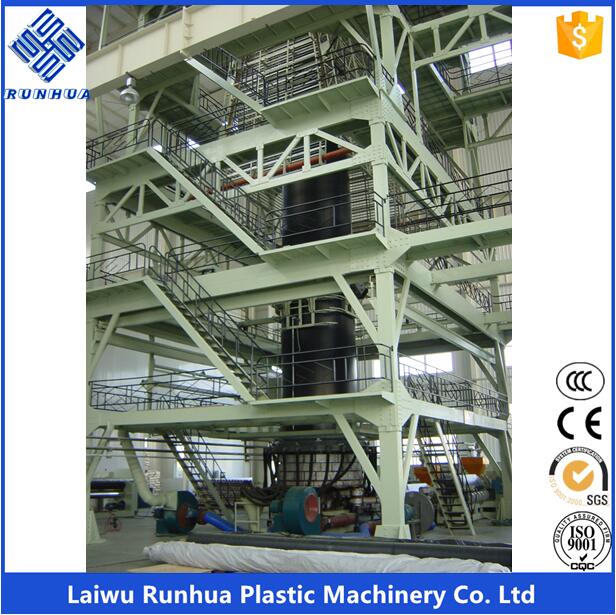

This high-performance blown extrusion line is engineered for the continuous production of premium geomembrane pond liners. Supporting a wide range of materials including HDPE, LDPE, LLDPE, and EVA, the system offers versatile layer configurations from 1 to 5 layers. Designed for durability and precision, this machine features advanced cooling, traction, and winding mechanisms to ensure consistent film thickness and quality for demanding waterproofing and lining applications.
Technical Specifications
- Film Width Range
- 1 meters
- Film Thickness
- 0.2-2.2mm
- Co-extrusion Layers
- 1-5 layers
- Compatible Materials
- HDPELDPELLDPEEVAmPERecycled Materials
Performance Metrics
Maximum Output
1,800 kg/g
Max Output
Machine Components
Included System Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (cooling fan and connecting tube)
- Herringbone and sizing cage
- Traction device
- Rewinder device
- IBC inner cooling system
- Matched spare parts set
Model Comparison
Model Specifications
| Model | Max Width (mm) | Layers | Max Output (kg/g) |
|---|---|---|---|
| TM3500 | 6,000 | 1 | 700 |
| 2TM3500 | 6,000 | 2 | 800 |
| 2TM4000 | 7,000 | 2 | 1,600 |
| 3TM4000 | 7,000 | 3 | 1,500 |
| 2TM5000 | 8,000 | 2 | 1,500 |
| 3TM5000 | 8,000 | 3 | 1,800 |
Certifications
Quality Certifications
ISO 9001CESGS Certified
