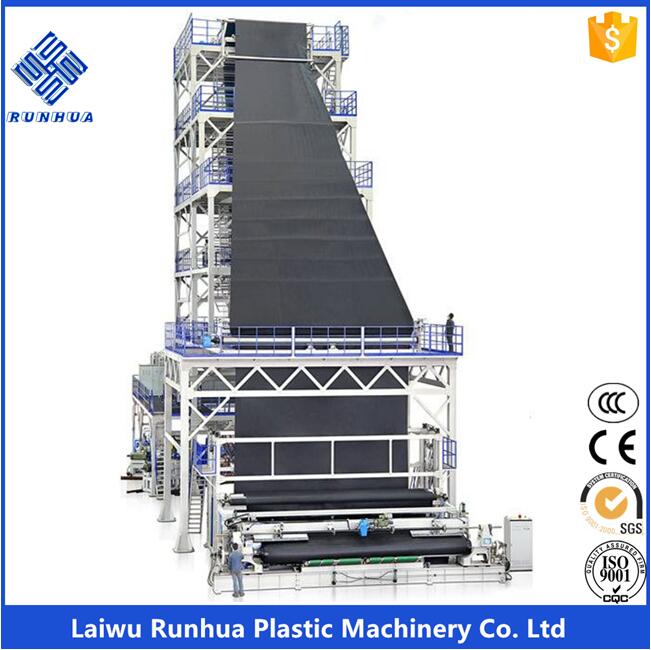

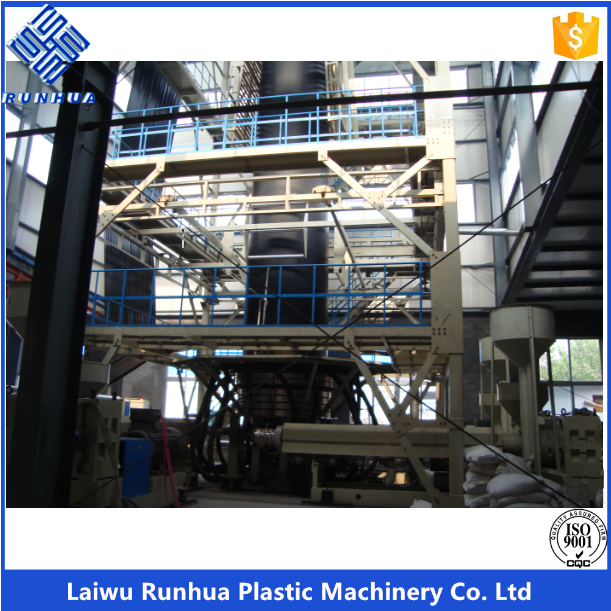

Geomembrane Pond Liner Extrusion Machine
This geomembrane extrusion machine produces pond liners with adjustable thickness from 0.2-2.2mm and widths from 1-9 meters. It can process HDPE, LDPE, or recycled materials in up to five layers.
Technical Specifications
Overview
High-Performance Geomembrane Extrusion Line
This industrial-grade blown extrusion line is engineered for the precise manufacturing of HDPE, LDPE, LLDPE, and EVA geomembrane pond liners. Designed for versatility, the system supports multi-layer co-extrusion capabilities and produces wide, consistent sheets suitable for critical waterproofing applications in civil engineering and environmental projects. Its robust construction integrates advanced cooling, traction, and winding mechanisms to ensure uniform thickness and high output efficiency.
Technical Specifications
System Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (cooling fan and connecting tube)
- Herringbone and sizing cage
- Traction device
- Rewinder device
- IBC inner cooling system
- Matched spare parts kit
- Compatible Materials
- HDPELDPELLDPEEVAmPEMaster batchRecycled materials
Performance Metrics
Production Capabilities
9 m
Max Film Width
2.5 mm
Max Film Thickness
5 layer
Max Layers
Model Comparison
Model Specifications
| Model | Max Width (mm) | Max Output (kg/h) | Layers |
|---|---|---|---|
| TM3500 | 6,000 | 700 | 1 |
| 2TM3500 | 6,000 | 800 | 2 |
| 2TM4000 | 7,000 | 1,600 | 2 |
| 3TM4000 | 7,000 | 1,500 | 3 |
| 2TM5000 | 8,000 | 1,500 | 2 |
| 3TM5000 | 8,000 | 1,800 | 3 |
Certifications
Quality Standards
CEISO 9001CQCSGS
