Geomembrane Extrusion Line for HDPE Liners
This geomembrane extrusion line is engineered for producing HDPE liners. It is capable of creating films with a wide range of thicknesses and widths, suitable for applications like fish farm pond liners.
Technical Specifications
Overview
High-Performance Geomembrane Extrusion Line
This advanced geomembrane extrusion line is engineered for the high-volume production of HDPE and LDPE liners, essential for applications such as fish farm pond construction and environmental containment. The system utilizes a multi-layer co-extrusion process, allowing for precise control over film thickness and material properties. With robust construction and integrated cooling systems, this machinery ensures consistent quality, durability, and chemical resistance in the finished geomembrane products.
Technical Specifications
Film Capabilities
9 m
Max Film Width
2.2 mm
Max Thickness
5 layers
Max Layers
- Compatible Materials
- HDPELDPELLDPEEVAmPEMaster batchRecycled materials
Component Breakdown
Included Machine Components
- Single-screw Extruder
- Screen changer
- Die head
- Air ring (cooling fan and connecting tube)

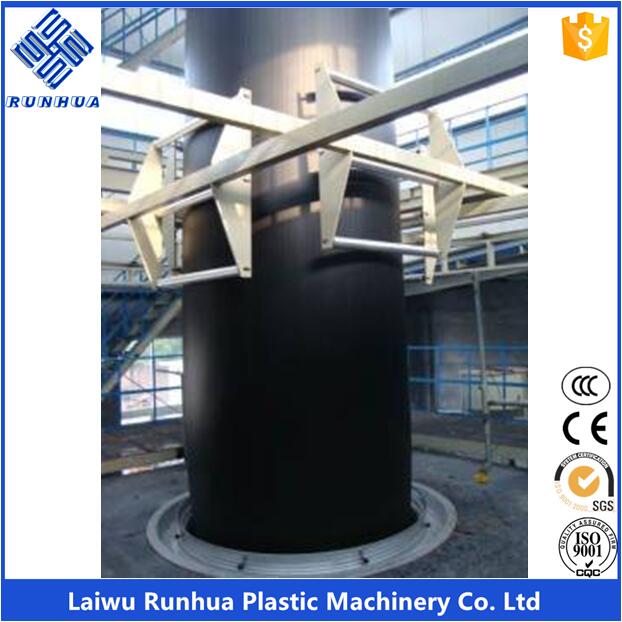

- Herringbone and sizing cage
- Traction device
- Rewinder device
- IBC inner film bubble cooling system
- Matched spare parts set
Model Comparison
Model Specifications
| Model | Max Width | Layers | Max Output |
|---|---|---|---|
| TM3500 | 6000mm | 1 | 700 kg/h |
| 2TM3500 | 6000mm | 2 | 800 kg/h |
| 2TM4000 | 7000mm | 2 | 1600 kg/h |
| 3TM4000 | 7000mm | 3 | 1500 kg/h |
| 2TM5000 | 8000mm | 2 | 1500 kg/h |
| 3TM5000 | 8000mm | 3 | 1800 kg/h |
