Geared Stepper Motor for Precise Motion Control

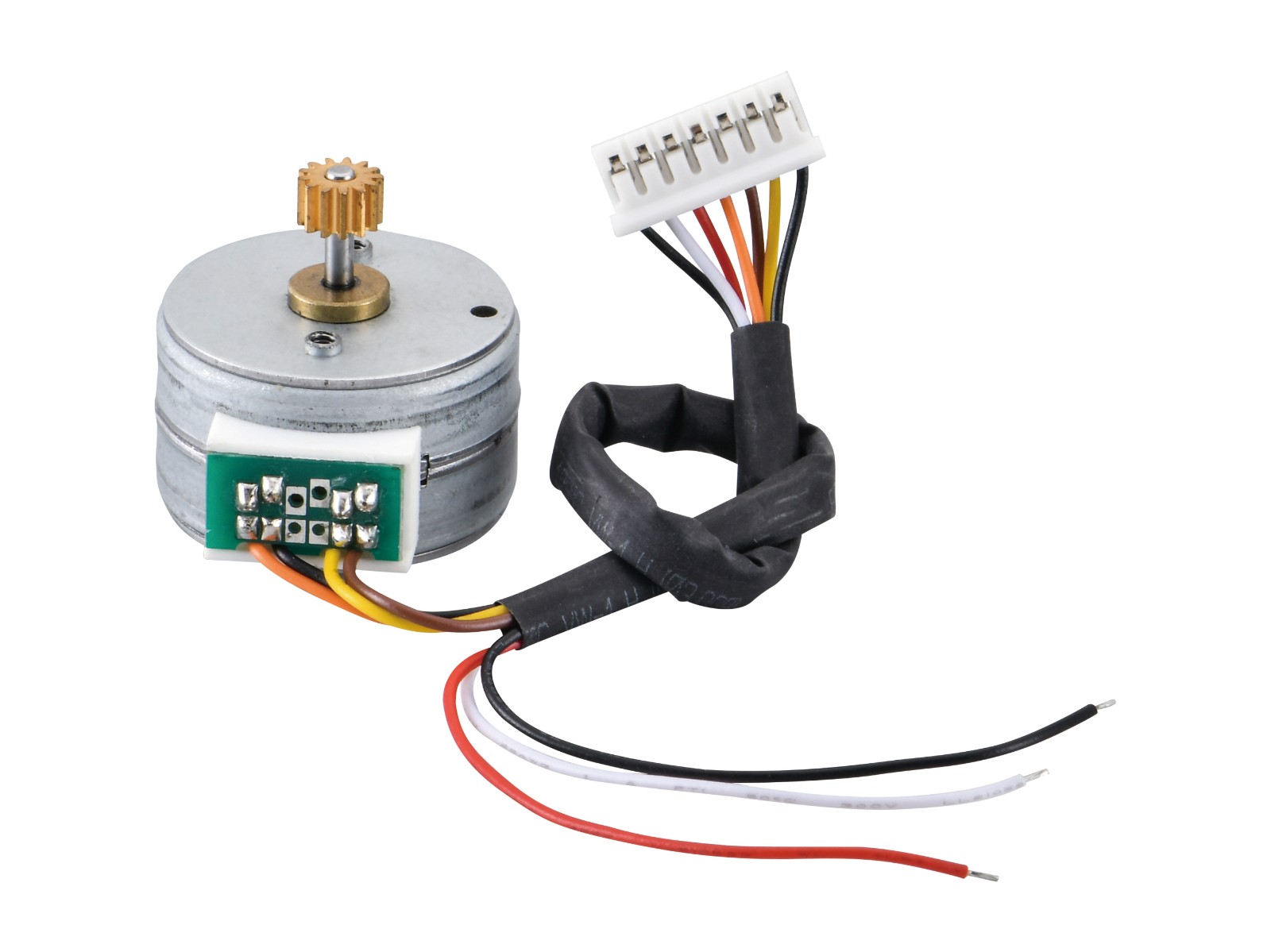

This stepper motor is designed for precise angular positioning. It features a geared output shaft and multi-pin connector for control signals.
Technical Specifications
Product Overview
Precision Motion Control
The VSM25 series stepper motors are compact electromechanical components engineered for high-precision angular positioning and automation. Featuring a robust geared drive mechanism, these motors ensure reliable performance in robotics and automated systems. Available in two distinct models to suit different impedance and torque requirements, they provide versatile integration options for sophisticated motion control tasks.

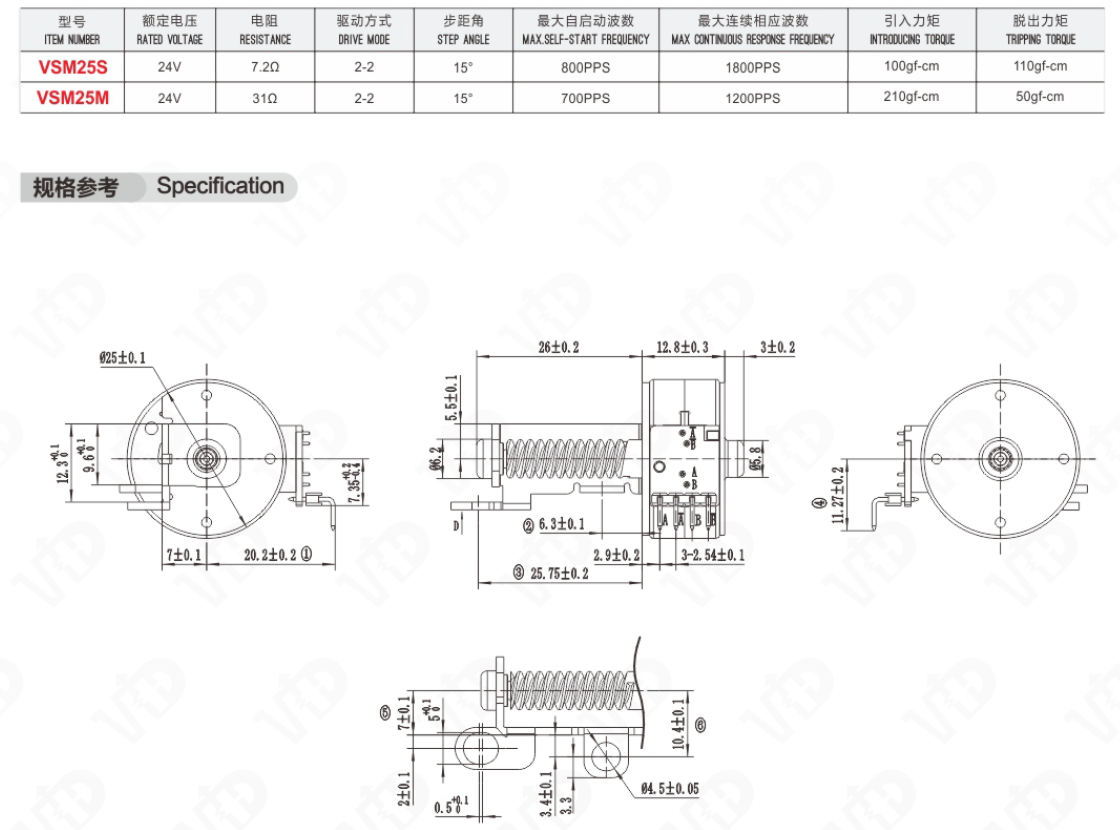

Technical Specifications
Torque Comparison Table
| Model | Introducing Torque | Tripping Torque |
|---|---|---|
| VSM25S | 100 gf-cm | 110 gf-cm |
| VSM25M | 210 gf-cm | 50 gf-cm |
- Rated Voltage
- 24 V
- Step Angle
- 15 °
- Drive Mode
- 2-2
Performance Metrics
Performance: Model VSM25S
7.2 Ω
Resistance
800 PPS
Max Self-Start Frequency
1,800 PPS
Max Continuous Response
100 gf-cm
Introducing Torque
Performance: Model VSM25M
31 Ω
Resistance
700 PPS
Max Self-Start Frequency
1,200 PPS
Max Continuous Response
210 gf-cm
Introducing Torque
