Technical Specifications
Product Overview

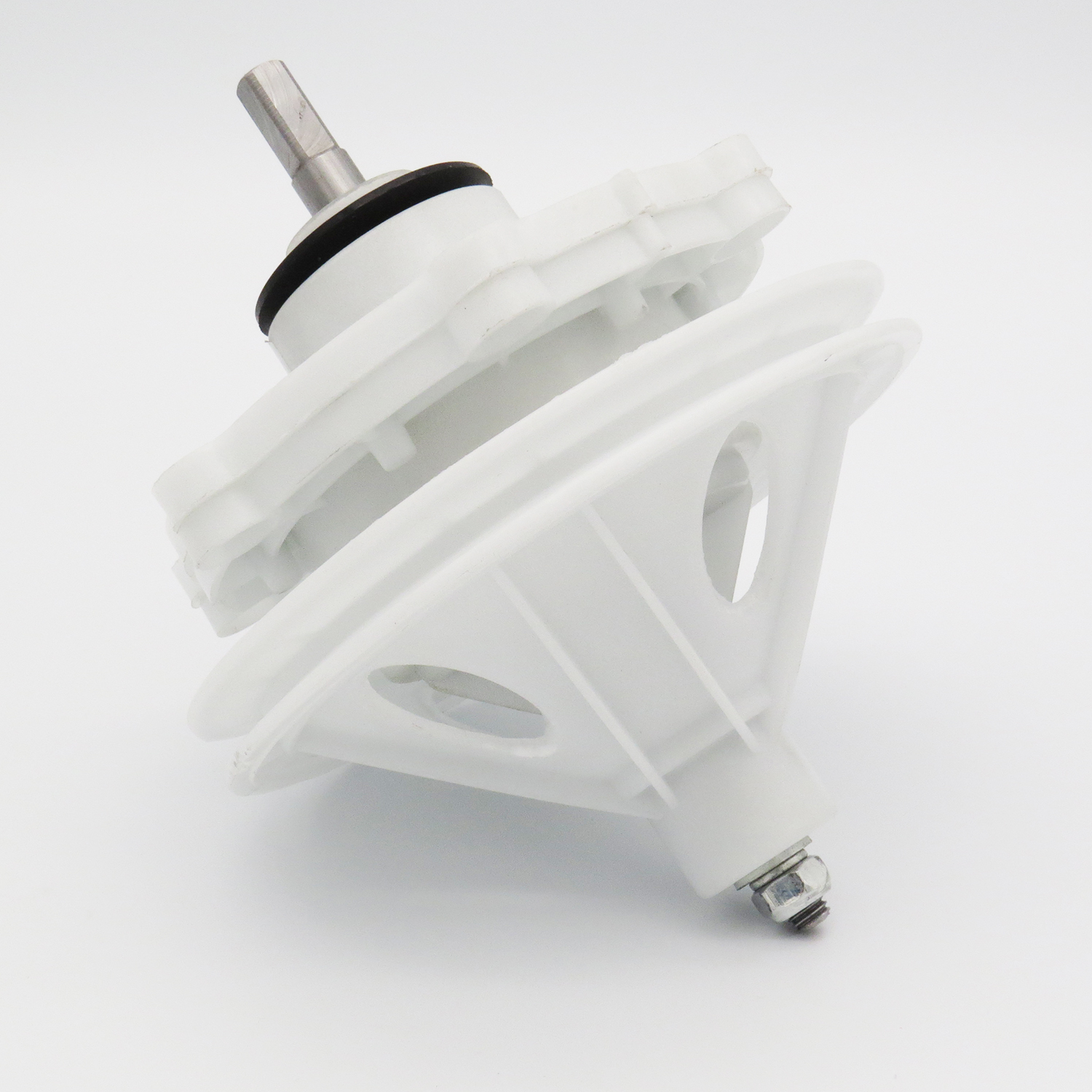

Precision Gear Case Assembly
This gear case is engineered for reliable rotational motion transmission in mechanical or electromechanical systems. Featuring a durable white plastic housing and a robust central shaft, it is designed for secure integration into larger assemblies. The unit includes a specialized square shaft and a pulley system, making it an essential component for motion control applications.
Technical Specifications
Shaft Dimensions
9 mm
Shaft Width
33 mm
Total Shaft Length
Mounting Configuration
| Feature | Specification |
|---|---|
| Outer Holes | 6 |
| Screws | 6 |
- Pulley Diameter
- 148 mm
Design & Construction
- Material
- Plastic HousingMetal ShaftRubber Seal
- Shaft Profile
- Square
