Technical Specifications

Product Overview

Gear Case Assembly Overview

This gear case assembly is engineered for reliable mechanical power transmission. Featuring a durable construction with a splined metal shaft, it is designed for consistent rotational performance. The assembly includes an integrated pulley system and is built for secure mounting, making it a suitable replacement or component for mechanical systems such as washing machines.

Technical Specifications

Pulley Diameter: 148 mm
Total Shaft Diameter: 35 mm
Shaft Configuration: 30mm + 5mm
Gear Teeth Count: 10

Mounting and Installation

Mounting Holes: 4
Included Screws: 4

Identification

Model Identifiers: WT-001BX201642172015

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

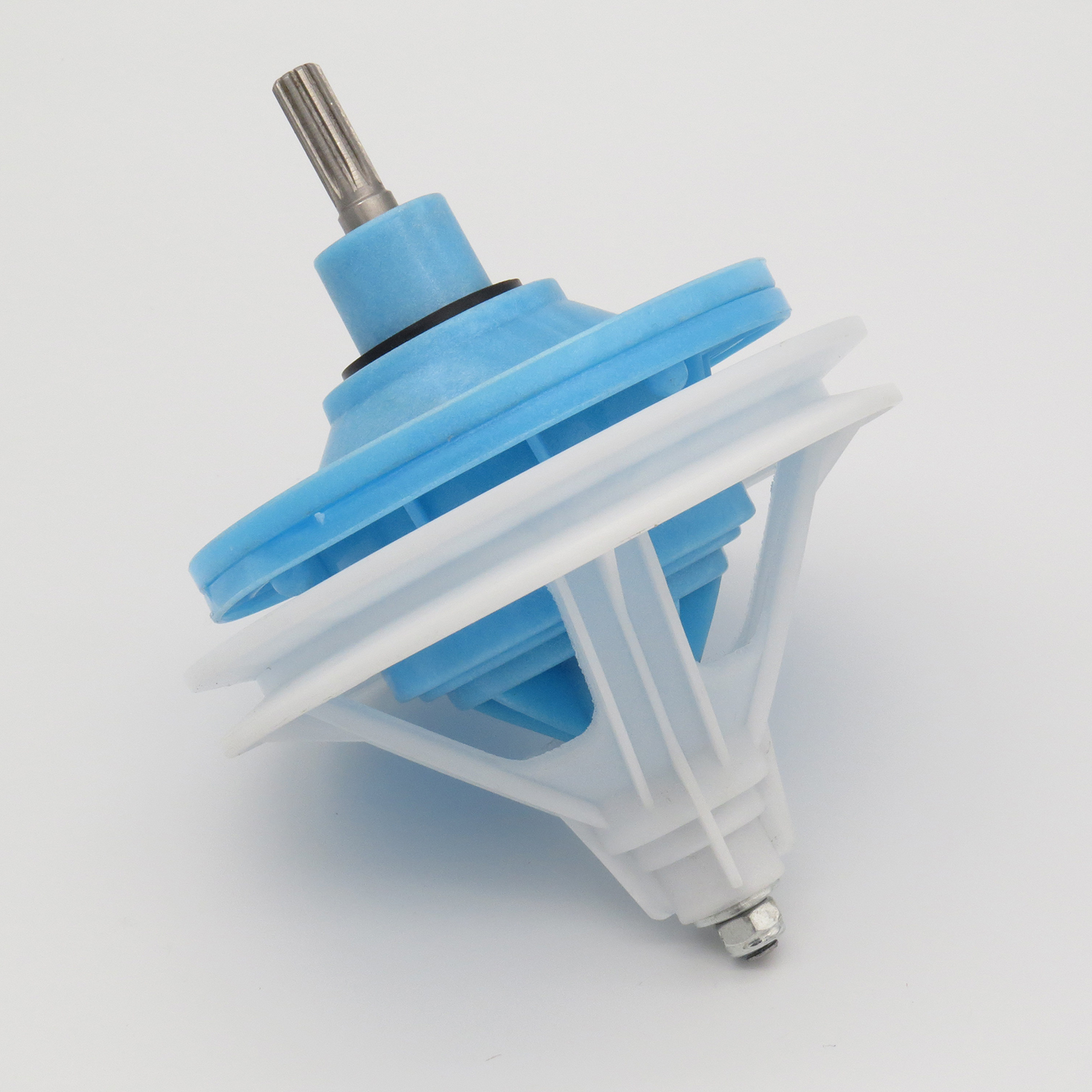

Gear Case Assembly with Splined Metal Shaft

This gear case assembly is designed for rotational motion applications. It features a splined metal shaft for efficient torque transmission, encased in durable blue and white plastic components.

Request a Quote Download PDFPDF

Gear Case Assembly with Splined Metal Shaft - Image 1
