Technical Specifications
Overview
Versatile Internal Combustion Rock Drill

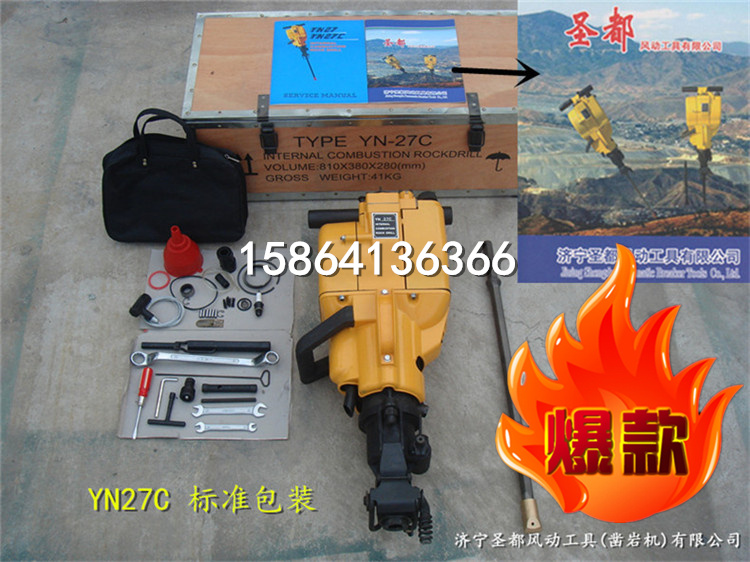

The YN27C is a high-performance, portable internal combustion rock drill designed for demanding environments without access to external power or water. This self-contained unit integrates a gasoline engine, air compressor, and rock drill, making it ideal for mining, road construction, quarrying, and national defense projects. It offers multi-functional capabilities including drilling, splitting, breaking, ramming, and shoveling, ensuring efficiency in remote or challenging locations.
Key Performance Metrics
Performance Metrics
250 mm/min
Drilling Speed
6 m
Max Drilling Depth
2,450 r/min
Engine Speed
Technical Specifications
- Machine Dimensions
- 746 x 315 x 229 mm
- Weight
- 27 kg
Engine Details
- Engine Type
- Single cylinder, air cooled two stroke
- Engine Displacement
- 185 cm3
- Fuel Consumption
- 0.122 L/m
- Gasoline/Oil Mixing Ratio
- 8:1
- Tank Capacity
- 1.14 L
Drilling Capabilities
- Drill Rod End Dimensions
- Hexagonal 22 x 108 mm
- Drill Rod Rotation Speed
- 200 r/min

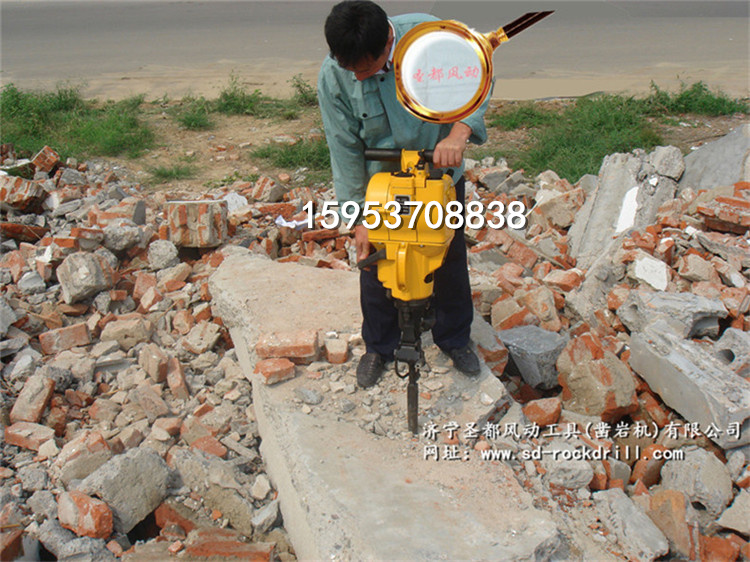

Applications
Supported Functions
DrillingSplittingBreakingRammingShovelling
- Primary Applications
- MiningRoad ConstructionQuarryingNational DefenseDemolition
