Gas Transmission Rate Tester
The gas transmission rate tester measures the gas transmission rate (GTR) of packaging materials. It is widely used in the food, pharmaceutical, and flexible packaging industries for quality control.
Technical Specifications
Overview
Precision Gas Permeation Testing

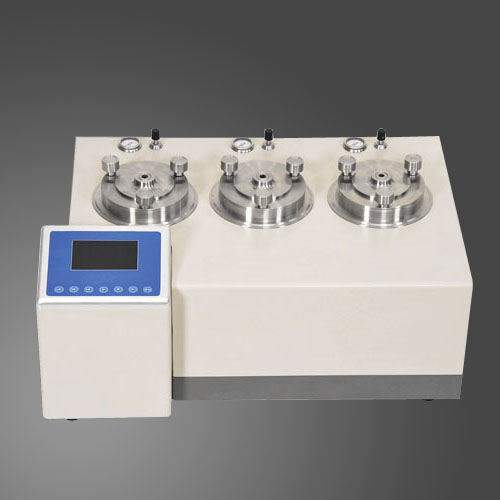

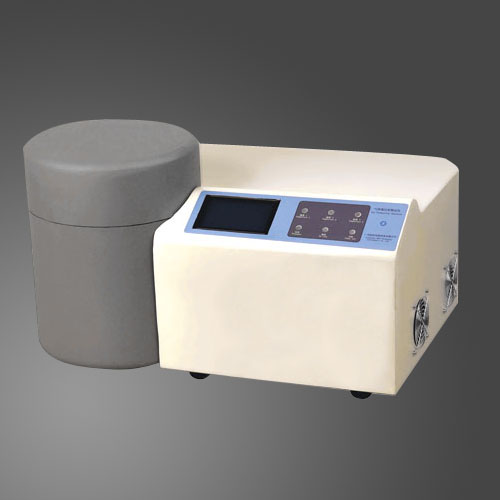

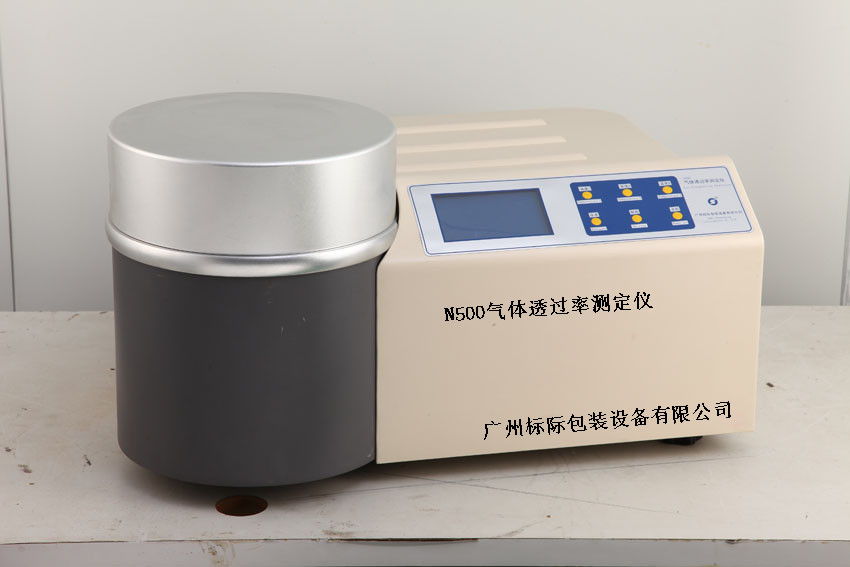

The N500 Gas Transmission Rate Tester is a professional-grade instrument engineered for the precise measurement of gas transmission rates (GTR) in various packaging materials. It utilizes a differential pressure method to evaluate barrier performance for gases such as O2, CO2, and N2. Designed for rigorous quality control and research, this device ensures consistent and reliable testing across plastic films, barrier materials, and sheets.
Performance Metrics
Standard Measuring Range
0.02 cm3/m2·day
Lower Limit
5,000 cm3/m2·day
Upper Limit
Expanded Measuring Range
0.2 cm3/m2·day
Lower Limit
50,000 cm3/m2·day
Upper Limit
- Measuring Accuracy
- 0.01 cm3/m2·day
Standards Compliance
- Supported Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82YBB00082003
Applications
Primary Industries
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging Materials
- Research & Development
- Quality Inspection Institutions
Testable Materials
- Plastic Films
- Barrier Materials
- Sheets
- Metal Aluminum
- PVC Sheets
