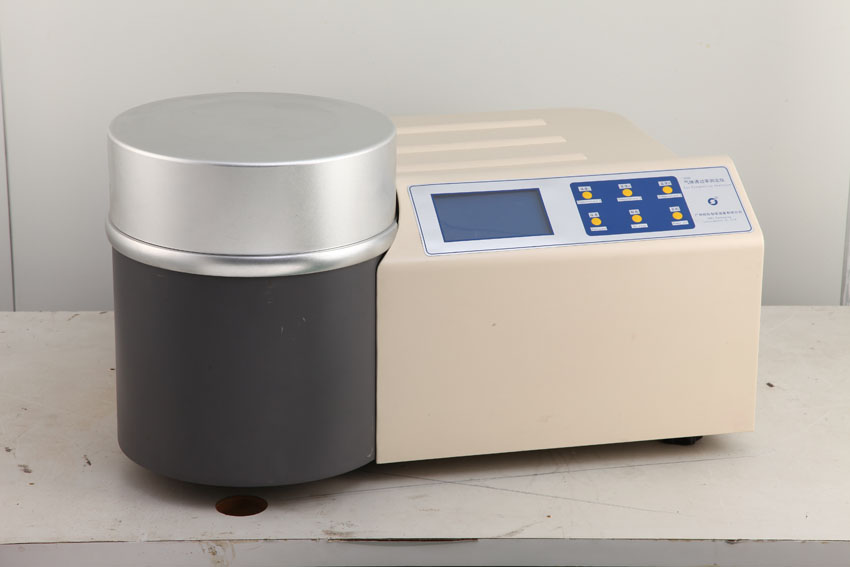

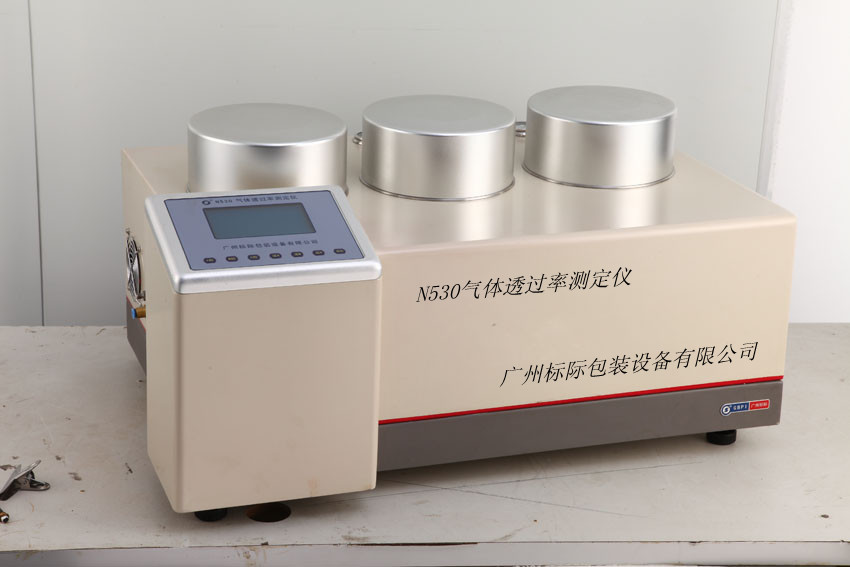

Gas Transmission Rate Analyzer
This analyzer tests the gas transmission rate (GTR) of packaging material. It is widely used in the food industry, pharmaceutical industry, and flexible packaging materials industry.
Technical Specifications
Overview
Precision Gas Permeation Analysis
This Gas Transmission Rate (GTR) Analyzer is a professional-grade instrument designed to measure the permeability of packaging materials to various gases, including O2, CO2, and N2. It utilizes a differential pressure method to provide accurate data for quality control and research in the food, pharmaceutical, and flexible packaging industries. The system features a robust clamping mechanism and automated monitoring to ensure reliable results across diverse material types.
Performance Metrics
Measuring Range (Standard)
Measuring Range (Expanded)
- Measuring Accuracy
- 0.01 cm3/m2·day
Compliance & Standards
- Supported Testing Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82 (2003)YBB00082003
Applications
Industry Applications
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging Materials
- Plastic Film Manufacturing
- Barrier Materials Research
- Academic & Quality Institutions
Technical Details
Testable Gases
Differential Pressure Method
The sample is clamped between upper and lower chambers. After vacuuming the system, the lower chamber is sealed, and test gas is introduced into the upper chamber. By maintaining a constant pressure differential, the gas permeates through the sample. The system monitors the pressure change in the lower chamber to calculate the transmission rate.
