Gas Permeation Rate Tester
The gas permeation tester measures the gas transmission rate (GTR) of packaging materials. It is widely used in the food, pharmaceutical, and flexible packaging industries for quality control and research.
Technical Specifications
Overview
Precision Gas Permeation Testing

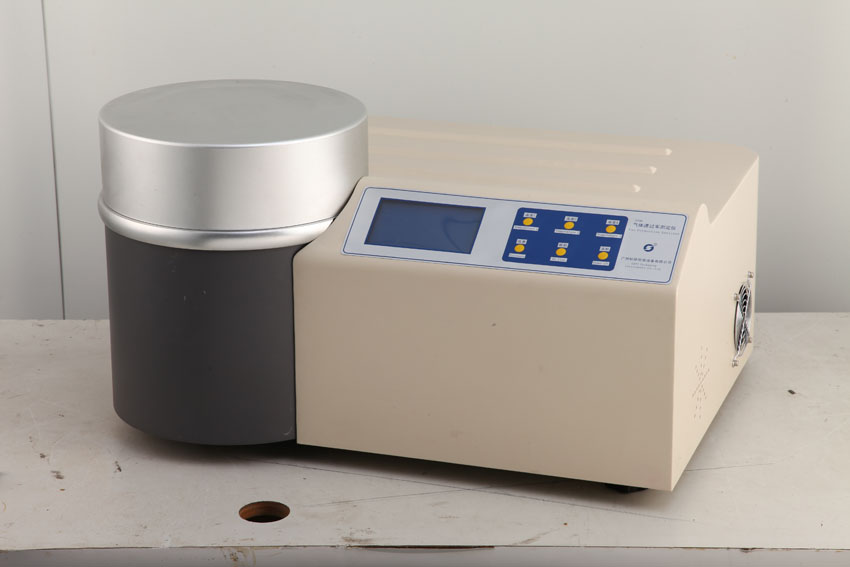

The N500 Gas Permeation Rate Tester is a specialized laboratory instrument designed to measure the gas transmission rate (GTR) of various packaging materials, including plastic films, barrier materials, and metal foils. It utilizes a differential pressure method to ensure accurate testing of gases such as O2, CO2, and N2. This device is an essential tool for quality control and research in the food, pharmaceutical, and flexible packaging industries.
Performance Metrics
Standard Measuring Range
0.02 cm3/m2·day·0.1MPa
Lower Limit
5,000 cm3/m2·day·0.1MPa
Upper Limit
Expanded Measuring Range
0.2 cm3/m2·day·0.1MPa
Lower Limit
50,000 cm3/m2·day·0.1MPa
Upper Limit
- Measuring Accuracy
- 0.01 cm3/m2·day·0.1MPa
Standards & Compliance
- Supported Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82 (2003)YBB00082003
Applications
Target Industries
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging Materials
- Plastic Film Manufacturing
- Academic & Quality Institutions
Testable Materials
- Plastic films
- Barrier materials
- Sheets
- Metal aluminum foils
- PVC sheets
