Gas Permeation Analyzer for Transmission Rate Testing
This gas permeation analyzer tests the gas transmission rate (GTR) of packaging material. It is widely used in the pharmaceutical industry and for flexible packaging materials.
Technical Specifications
Overview

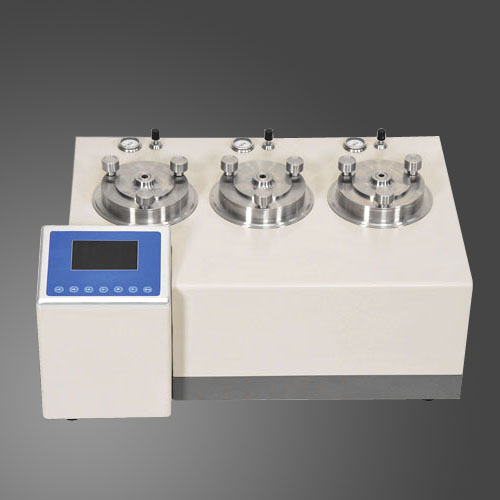

N500 Gas Permeation Analyzer
The N500 is a specialized instrument designed for testing the gas transmission rate (GTR) of various packaging materials, including plastic films, barrier materials, and metal foils. It utilizes the differential pressure method to provide accurate permeation testing for gases such as O2, CO2, and N2. This analyzer is essential for quality control and research in the food, pharmaceutical, and cosmetics packaging industries.
Performance Metrics
Standard Measuring Range
0.02 cm3/m2·day·0.1MPa
Min Range
5,000 cm3/m2·day·0.1MPa
Max Range
Expanded Measuring Range
0.2 cm3/m2·day·0.1MPa
Min Range (Expanded)
50,000 cm3/m2·day·0.1MPa
Max Range (Expanded)
Technical Specifications
Accuracy & Resolution
| Parameter | Value |
|---|---|
| Measuring Accuracy | 0.01 cm3/m2·day·0.1MPa |
| Resolution Ratio | 0.1 Pa |
| Vacuum Level | < 20 Pa |
Testing Conditions
| Feature | Specification |
|---|---|
| Temperature Range | 15°C - 45°C |
| Temperature Precision | ±0.1°C |
| Sample Thickness | ≤ 2mm |
| Sample Area | 80mm diameter |
| Transmission Area | 50.24 cm2 |
Standards & Compliance
- Supported Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82 (2003)YBB00082003
Physical Attributes
Physical & Power Specs
- Dimensions: 700mm (L) x 520mm (W) x 380mm (H)
- Power Supply: AC220V / 50Hz
- Carried Gas Inlet: 1/8 inch
Applications
Industry Applications
Food IndustryPharmaceutical IndustryCosmetics PackagingFlexible PackagingResearch & Quality Institutions
