Gas Permeation Analyzer for Barrier Materials
The gas permeation analyzer tests the gas transmission rate (GTR) of packaging materials. It is widely used in the food, pharmaceutical, and flexible packaging industries for quality control.
Technical Specifications
Product Overview
Precision Gas Permeation Analysis

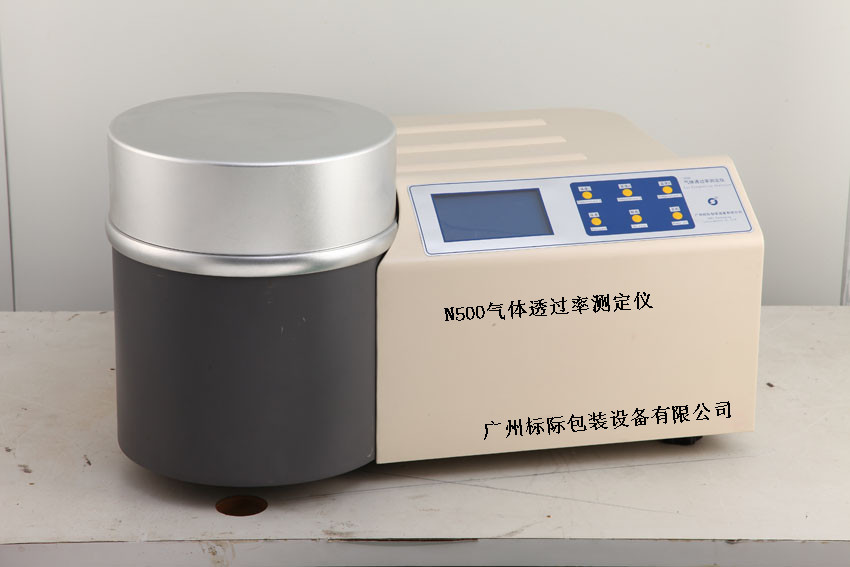

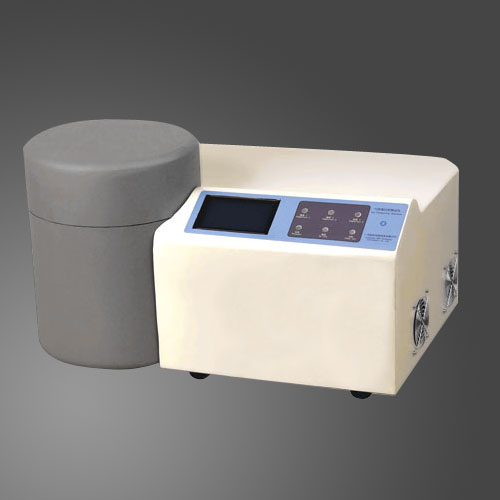

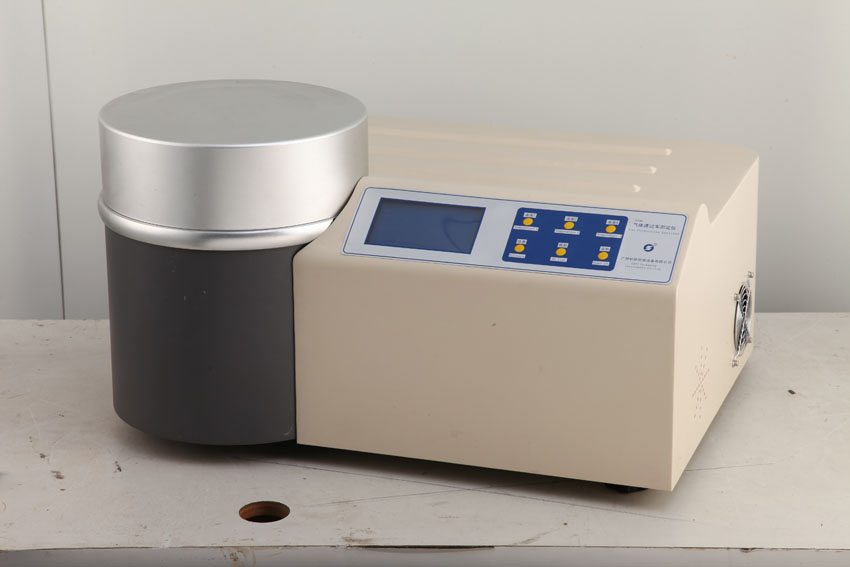

The N500 Gas Permeation Analyzer is a high-precision instrument engineered to determine the gas transmission rate (GTR) of various barrier materials. Utilizing the differential pressure method, it provides critical quality control data for films, sheets, and packaging materials used in food and pharmaceutical industries. Its robust design ensures reliable measurement of oxygen, nitrogen, carbon dioxide, and other gases, making it an essential tool for R&D and industrial quality assurance.
Technical Performance
Measuring Range (Standard)
0.02 cm3/m2·day
Lower Limit
5,000 cm3/m2·day
Upper Limit
Measuring Range (Expanded)
0.2 cm3/m2·day
Lower Limit
50,000 cm3/m2·day
Upper Limit
Supported Test Gases
- Oxygen (O2)
- Carbon Dioxide (CO2)
- Nitrogen (N2)
- Measurement Accuracy
- 0.01 cm3/m2·day
Compliance & Standards
- Compatible Standards
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82YBB00082003
Applications
Target Industries
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging
- Quality Institutions
- University Research
Compatible Materials
Plastic FilmBarrier MaterialsSheetsMetal AluminumPVC Sheets
