Gas Permeation Analyzer for Aluminum Foil
The Gas Permeation Analyzer measures the gas transmission rate (GTR) of packaging materials like aluminum foil. It is widely used in the food, pharmaceutical, and flexible packaging industries for quality control.
Technical Specifications
Product Overview
Precision Gas Permeation Analysis

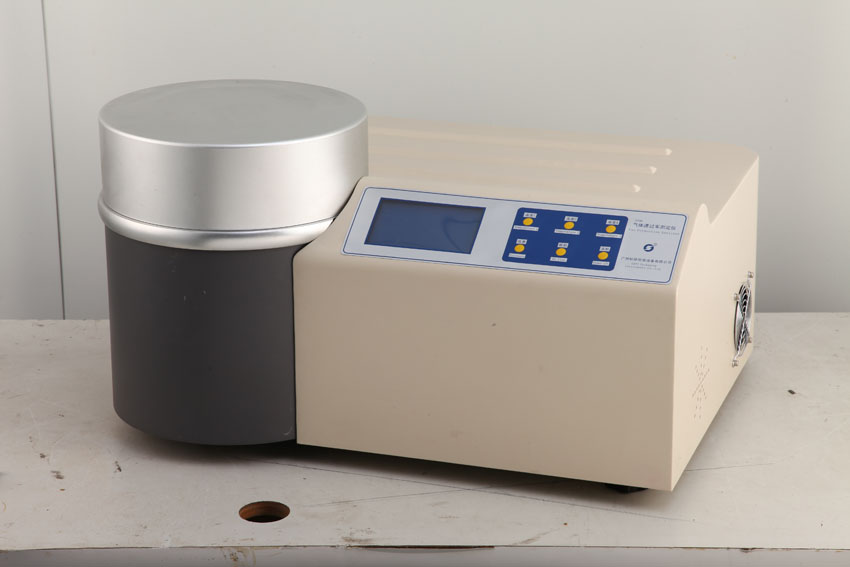

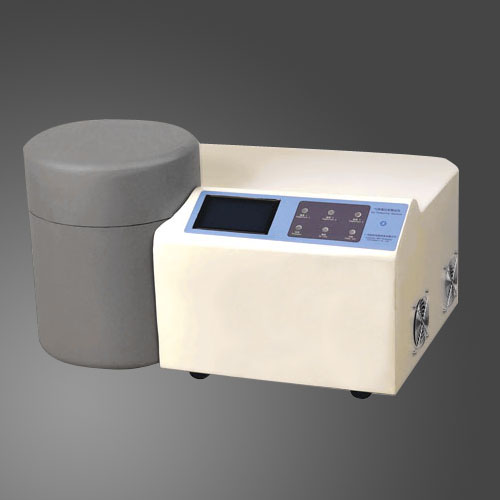

The N500 Gas Permeation Analyzer is a professional-grade instrument designed to measure the gas transmission rate (GTR) of barrier materials, including aluminum foil, plastic films, and sheets. It utilizes an advanced differential pressure method to provide accurate testing for oxygen, carbon dioxide, and nitrogen permeability. This essential tool supports rigorous quality control and research in the food, pharmaceutical, and flexible packaging industries.
Performance Metrics
Standard Measurement Range
0.02 cm3/m2·day
Min Range
5,000 cm3/m2·day
Max Range
Expanded Measurement Range
0.2 cm3/m2·day
Min Range (Expanded)
50,000 cm3/m2·day
Max Range (Expanded)
- Measurement Accuracy
- 0.01 cm3/m2·day
Compliance & Standards
- International Standards Compliance
- ISO 2556-2001ISO 15105-1GB/T 1038-2000ASTM D1434-82 (2003)YBB00082003
Technical Specifications
Industry Applications
- Food Industry
- Pharmaceutical Industry
- Flexible Packaging Materials
- Plastic Film & Sheets
- Metal Aluminum Foil
- PVC Sheets
- Testing Method
- Differential Pressure Method
- Chamber Configuration

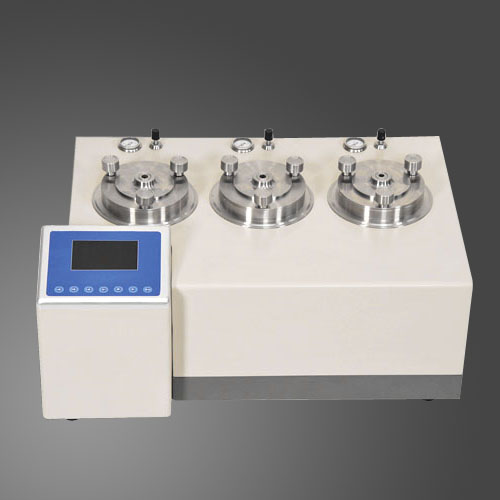

- Multi-station (3 independent testing chambers)
