Technical Specifications
Product Overview
Reliable Overhead Line Support

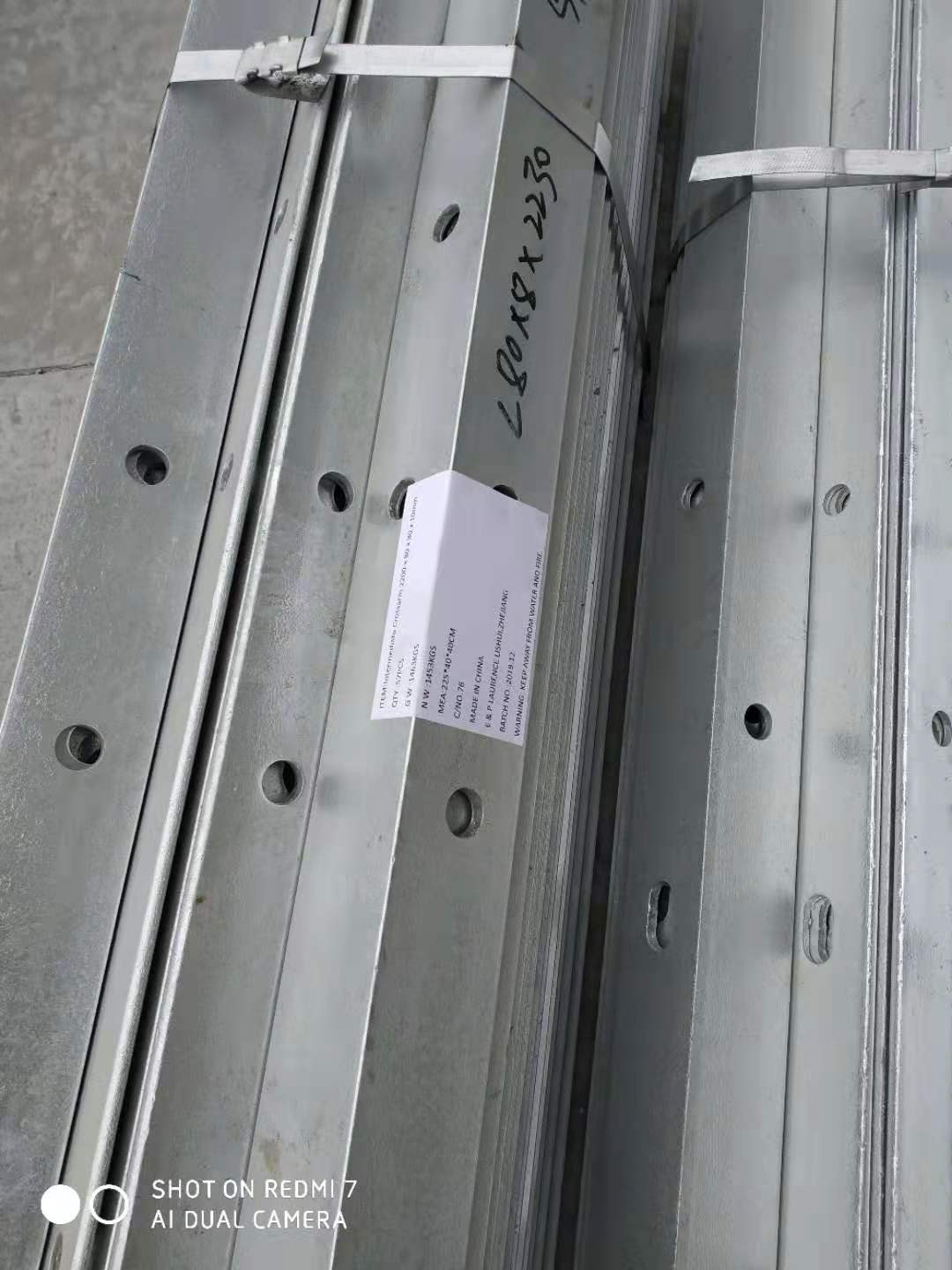

This galvanized steel crossarm is engineered for the secure installation and support of electrical equipment on overhead transmission lines. Constructed from high-quality steel with a protective galvanized finish, it offers superior corrosion resistance and long-term durability in outdoor environments. The design is highly adaptable, with custom sizing available to meet specific project requirements.
Technical Specifications
Country of Origin
- Material
- Galvanized Steel
- Dimensions (L x W x H)
- 2230 x 80 x 8 mm
- Primary Application
- Overhead Electrical Transmission
Logistics & Packaging
Packaging Configurations
| Batch Type | Quantity | Gross Weight | Net Weight |
|---|---|---|---|
| Large Batch | 57 | 1,463 | 1,453 |
| Small Batch | 17 | 367 | 357 |
- Weight Unit
- kg
