Technical Specifications
Product Overview

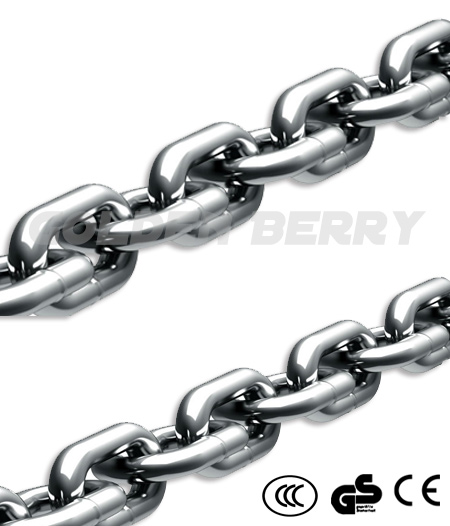

Professional Grade G80 Lifting Chain
This G80 alloy steel lifting chain is engineered for heavy-duty hoisting and material handling applications. Built for exceptional durability, it offers high wear resistance and load-bearing capacity suitable for cranes, hoists, and demanding industrial environments. The chain is manufactured to rigorous quality standards, ensuring reliable and secure connections for critical lifting operations.
Certifications & Compliance
- Certifications
- CEGSCCC
Technical Specifications

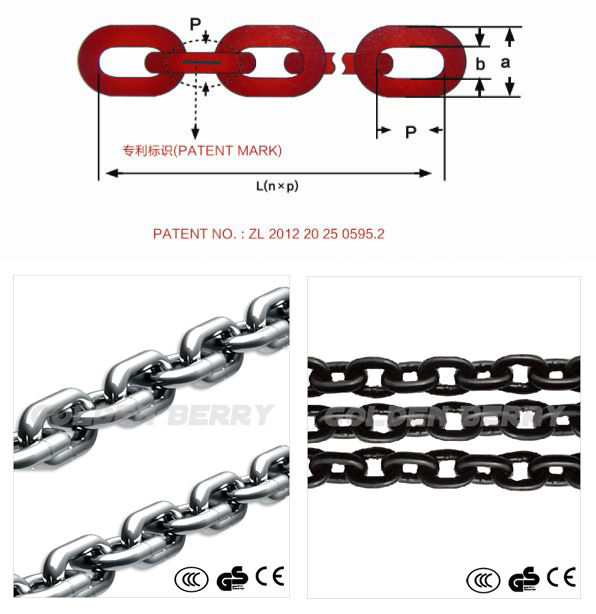

Dimensional & Load Data
| Size (mm) | Width (mm) | Weight (kg/m) | Working Load (t) | Breaking Load (KN) |
|---|---|---|---|---|
| 6x18 | 7.5 | 0.79 | 1.1 | 45.2 |
| 8x24 | 10 | 1.38 | 2 | 80.4 |
| 10x30 | 12.5 | 2.2 | 3.2 | 125 |
| 12x36 | 15 | 3.1 | 4.6 | 181 |
| 16x48 | 20 | 5.63 | 8 | 320 |
| 20x60 | 25 | 8.6 | 12.5 | 500 |
| 24x72 | 32 | 12.78 | 18 | 720 |
| 30x90 | 38 | 19.6 | 28.3 | 1,130 |
| 34x126 | 38 | 22.7 | 36.3 | 1,450 |
Material & Construction
Grade
G80
- Material
- Alloy Steel
