Full Electric Injection Molding Machine
This full electric injection molding machine is designed for precision and high-speed operation. It is energy-efficient and suitable for producing components for electronics, medical devices, and consumer goods.
Technical Specifications
Overview
High-Performance Full Electric Injection Molding
This full electric injection molding machine is engineered for exceptional precision, high-speed operation, and superior energy efficiency. Featuring advanced servo control and robust mechanical design, it is an ideal solution for manufacturing high-quality components in sectors such as electronics, optics, medical devices, and consumer goods. The system integrates proprietary drive and control technologies to ensure consistent shot control, optimized cycle times, and reduced material waste.

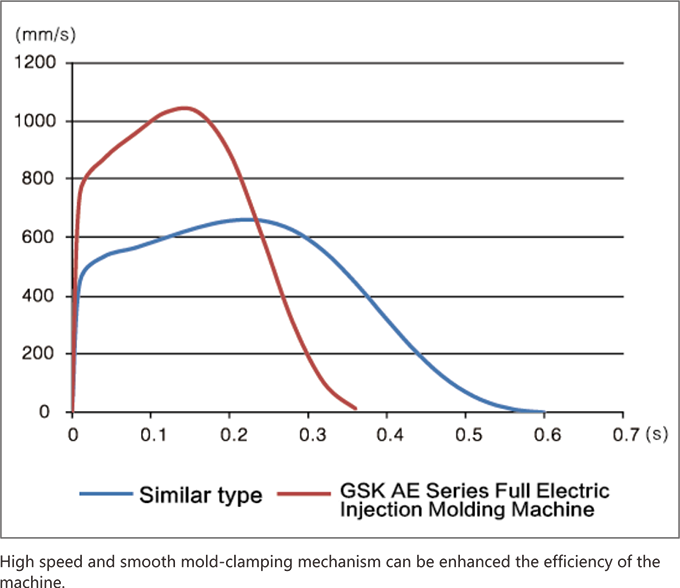

Injection Performance
Injection Performance Metrics
160 ton
Clamping Force
353 cm³
Max Injection Capacity
272 MPa
Max Injection Pressure
157 Kg/h
Max Plasticizing Capacity

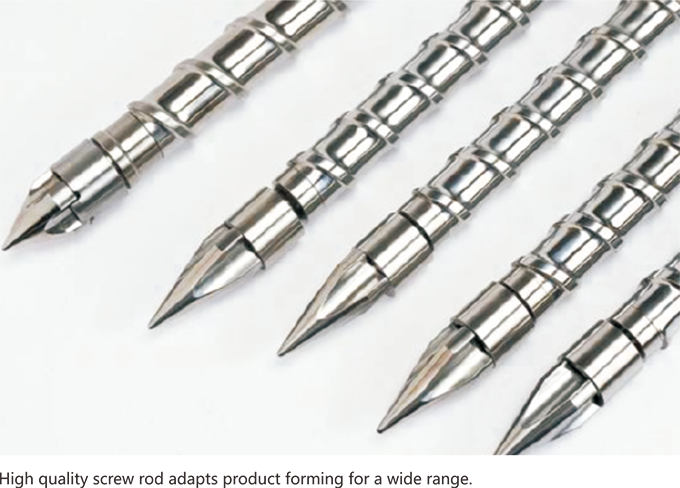

- Screw Diameter Options
- 32mm36mm40mm45mm50mm
Clamping Unit
Clamping Specifications
| Feature | Specification |
|---|---|
| Clamping Way | Five-point oblique |
| Drive Travel | 450 mm |
| Mold Thickness Range | 200 - 500 mm |
| Min Mold Size | 375 x 375 mm |
| Ejection Force | 35 kN |
| Ejection Stroke | 120 mm |
Physical Dimensions
Physical Dimensions
- Length: 5.61 m
- Width: 1.48 m
- Height: 2.4 m
- Weight Range: 9 - 9.5 tons
Technical Features
Key Advantages

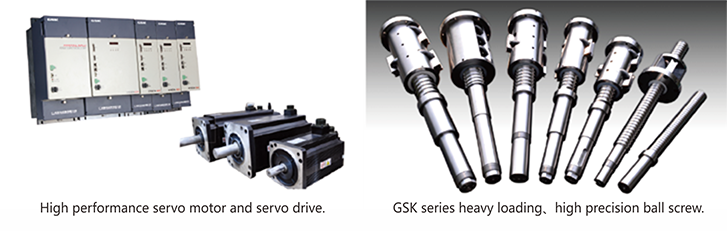

High PrecisionEnergy SavingLow NoiseFast ResponseAdvanced Servo Control
