Technical Specifications
Overview

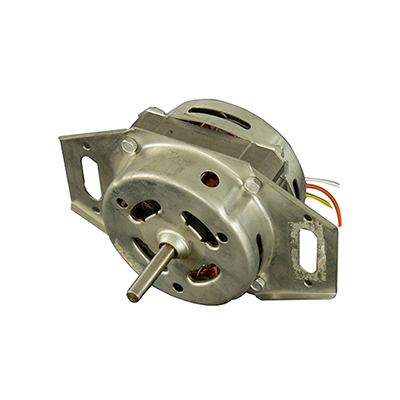

Universal Electric Motor for Food Processing
This universal electric motor is engineered for reliability and consistent performance in demanding food processing environments, such as bread machines and ice cream makers. It features a compact, cost-effective design with integrated temperature protection to ensure operational safety. With customizable installation dimensions and performance profiles, this motor is an adaptable solution for various household appliance manufacturers.
Key Advantages
Compact StructureLow CostTemperature ProtectionReliable Operation
- Application Fields
- Bread MachinesIce Cream MachinesFood Processing Equipment
Technical Specifications
Model Performance Comparison
| Model | Voltage (V) | Power (W) | Start Torque (N.m) | Max Torque (N.m) |
|---|---|---|---|---|
| YFH-30L | 100 | 30 | 0.25 | 0.43 |
| YFH-50 | 100 | 50 | 0.35 | 0.66 |
| YFH-80L | 100 | 80 | 0.52 | 0.96 |
| YXQ-90EI | 220~240 | 90 | 0.5 | 1 |
| YFH-200L | 100 | 200 | 0.8 | 1.55 |
Operating Frequency
- 50Hz
- 60Hz
