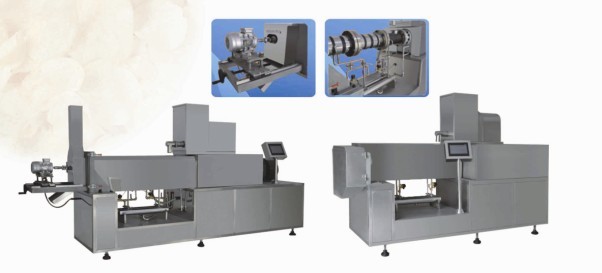

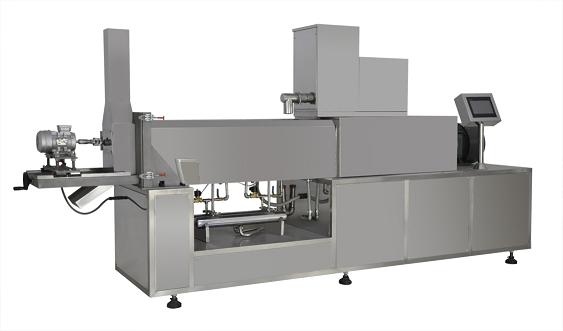

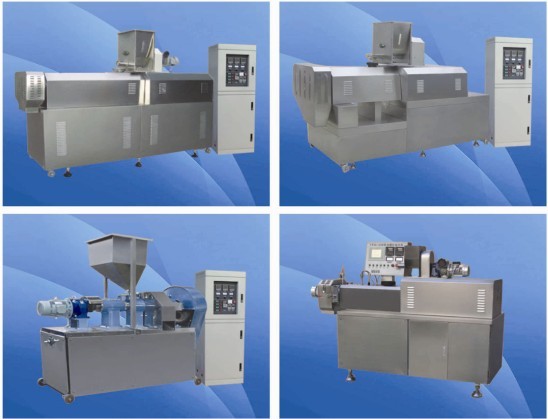

Food Extrusion Molding Machine
This food extrusion molding machine is designed for continuous production processes. It features a stainless steel construction and a modular design suitable for producing a variety of extruded food products.
Technical Specifications
Overview
High-Efficiency Food Extrusion Molding Machine
This double-screw extrusion system is designed for versatile food production, featuring a robust stainless steel construction for optimal hygiene and durability. The machine integrates advanced feeding, heating, and rotary cutting systems with inverter-driven controls to ensure smooth operation and precise output. Its modular design and specialized screw technology offer excellent wear resistance, making it suitable for a wide range of applications including pet food, breakfast cereals, and protein snacks.
Key Features
- Core Capabilities
- Automatic LubricationForced CoolingInverter-Driven ControlModular DesignStainless Steel Construction
Applications
Suitable Products
- Pet food
- Cat food
- Dog food
- Fish feed
- Corn flakes
- Breakfast cereals
- Instant noodles
- Protein snacks
- Fried and non-fried products
Technical Specifications
Model Technical Parameters
| Model | Installed Power (KW) | Output (KG/H) | Dimensions (MM) |
|---|---|---|---|
| LD85-II | 120 | 300-500 | 4000 x 1200 x 3000 |
| LD70-IV | 65 | 150-200 | 3500 x 1000 x 1800 |
| LD65-11 | 35 | 120-150 | 2500 x 1000 x 1800 |
| LD600-1 | 20 | 100 | 2480 x 960 x 2100 |
| LD32 | 12 | 10-15 | 2000 x 600 x 1500 |
